RG125AU 1988 (J) (E01)

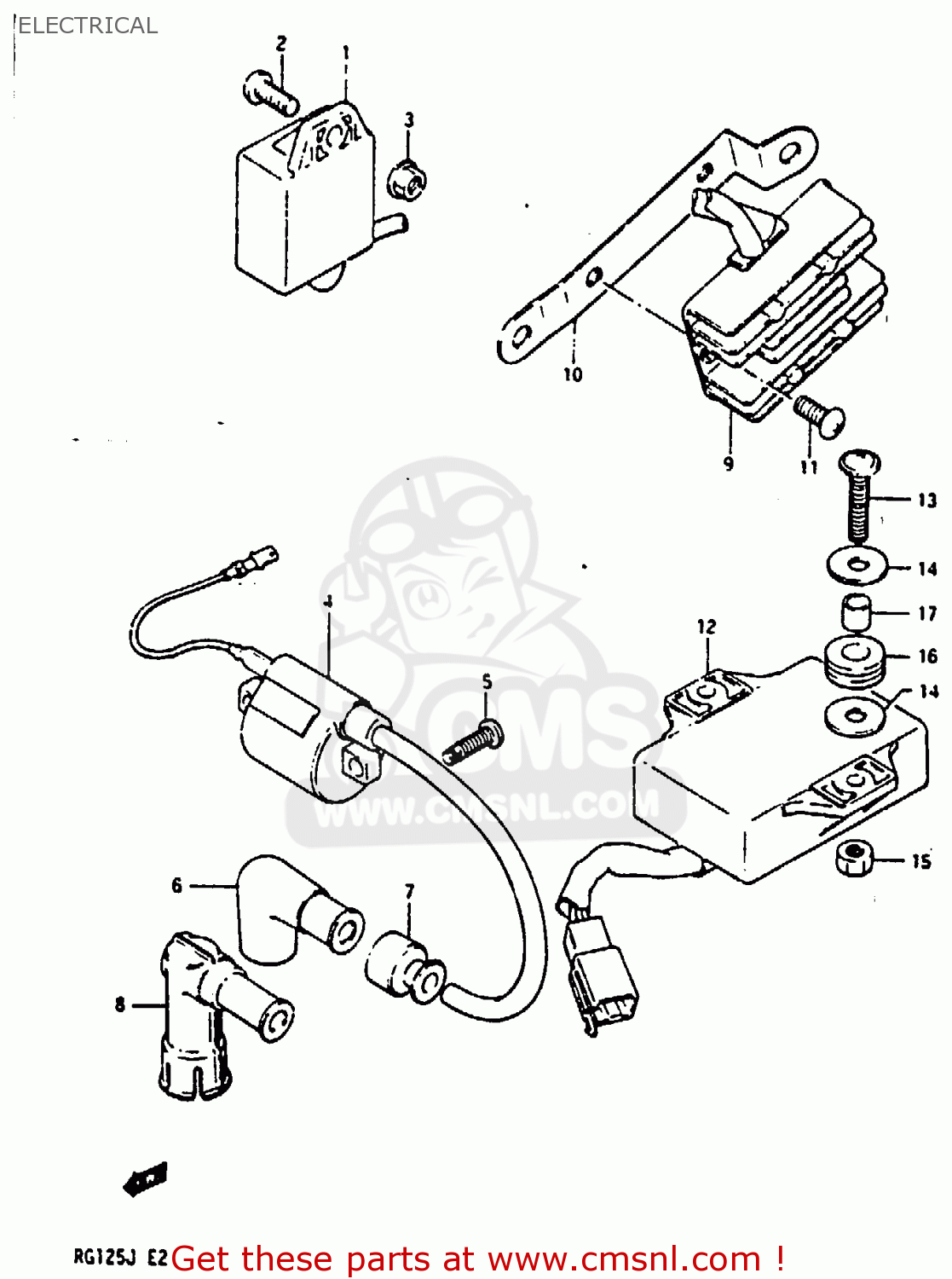

Electrical diagram RG125AU 1988 (J) (E01)
ELECTRICAL RG125AU 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3290036A00
ref: 1
C.D.I UNIT
€ 309.00
2
0214206166
ref: 2
SCREW
€ 2.50
3
0915906017
ref: 3
NUT
€ 2.50
4
3341013A01
ref: 4
FROM 33410-13A00
COIL ASSY, IGNITION
€ 90.00
5
0912906003
ref: 5
SCREW(6X21)
€ 2.00
6
3351020A00
ref: 6
CAP,SPARK PLUG
€ 23.00
7
3354238B00
ref: 7
SEAL,HIGH TENSION CORD
€ 4.50
8
3351016710
ref: 8
E4
CAP, SPARK PLUG
€ 61.50
9
3280001A01
ref: 9
RECTIFIER ASSY
€ 143.00
10
4741536A00
ref: 10
BRACKET
€ 4.50
11
0211206126
ref: 11
SCREW
€ 1.50
12
3291036A00
ref: 12
CONTROL UNIT, SOLENOID
€ 180.50
13
0215206256
ref: 13
SCREW
€ 2.50
14
0916006020
ref: 14
WASHER
€ 2.00
15
0831012066
ref: 15
NUT
€ 2.00
16
0932008007
ref: 16
CUSHION
€ 4.00
17
0918006027
ref: 17
SPACER (6.3X9.1X6.7)
€ 3.00
