MUFFLER
RG125AU 1988 (J) (E01)

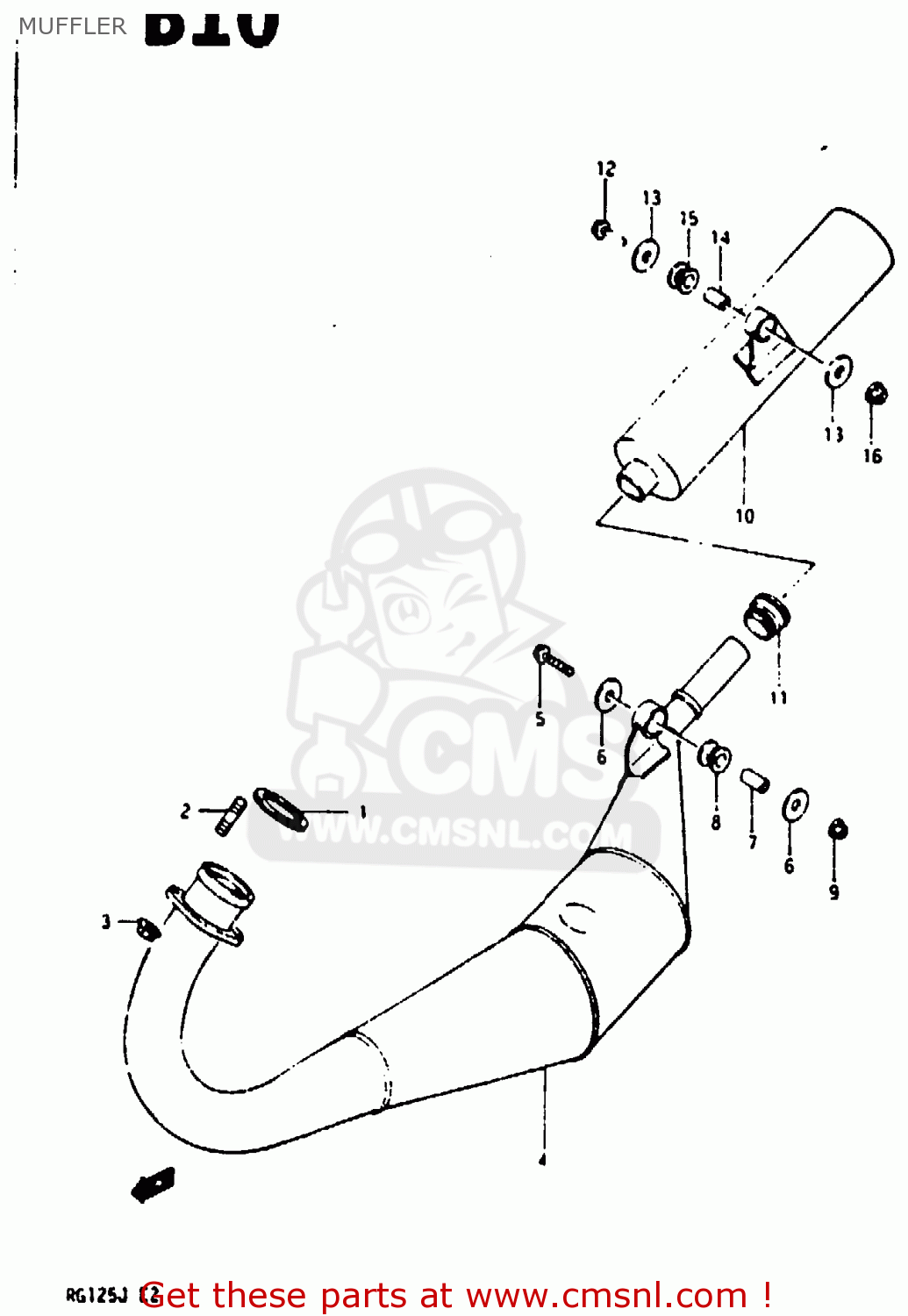

Muffler diagram RG125AU 1988 (J) (E01)
MUFFLER RG125AU 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1418139310
ref: 1-1
GASKET, EXHAUST PIPE (NAS)
€ 8.50
1-2
1418139310H17
ref: 1-2
E17
GASKET, EXHAUST PIPE (NA) (NAS)
€ 8.50
2
0142108205
ref: 2
STUD BOLT
€ 2.00
3
0831931085
ref: 3
NUT
€ 2.50
4-1
1431036A03
ref: 4-1
MUFFLER, 1ST
€ 249.50
4-2
1431036A23
ref: 4-2
RG125CG E18 RG125UCG
MUFFLER, 1ST (ID:20)
€ 0.00
4-3
1431036A30
ref: 4-3
RG125CHE18
MUFFLER, 1ST (ID:22)
€ 233.50
4-4
1431036A40
ref: 4-4
RG125UC E2, E.NO. 10
MUFFLER, 1ST (ID:22)
€ 238.00
4-5
1431036A13
ref: 4-5
RG125UCG/UCH/UJ/AUJ/
MUFFIER, 1ST
€ 0.00
4-6
1431036A50
ref: 4-6
RG125J E18
MUFFLER, 1ST
€ 281.00
5
0151708405
ref: 5
BOLT 8X40
€ 3.50
6
0916008057
ref: 6
WASHER (8.5X20X1.6)
€ 2.00
7
0918008133
ref: 7
SPACER
€ 3.50
8
0932012043
ref: 8
CUSHION
€ 8.00
9
0831616088
ref: 9
NUT
€ 2.50
10-1
1433036A13
ref: 10-1
BODY,MUFFLER 2ND
€ 198.00
10-2
1433036A03
ref: 10-2
E15, E18, E21, E24,
MUFFIER, 2ND
€ 84.00
10-3
1433036A23
ref: 10-3
E17
MUFFLER, 2ND
€ 0.00
11
1477112B00
ref: 11
CONNECTOR,MUFFLER
€ 16.00
12
0151708358
ref: 12
BOLT
€ 3.50
13
0916008002
ref: 13
WASHER (8.5X29X1.6)
€ 2.00
14
0918008102
ref: 14
SPACER (8.6X12X17.5)
€ 3.00
15
0932012043
ref: 15
CUSHION
€ 8.00
16
0831616088
ref: 16
NUT
€ 2.50
