FRONT MASTER CYLINDER

RG125AU 1988 (J) (E01)

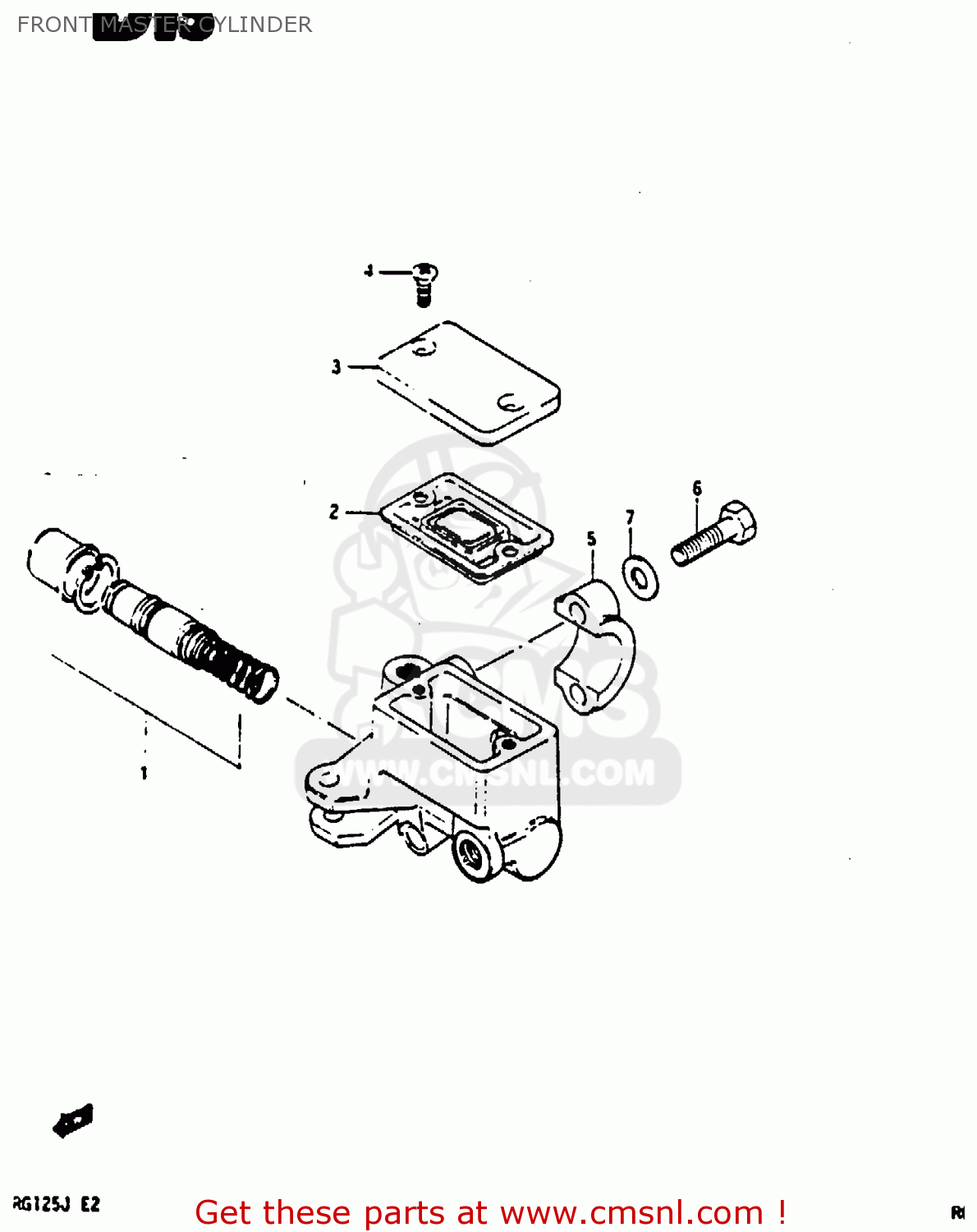

Front master cylinder diagram RG125AU 1988 (J) (E01)

FRONT MASTER CYLINDER RG125AU 1988 (J) (E01)

FRONT MASTER CYLINDER RG125AU 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

0

5960004710
ref: 0

CYLINDER ASSY,FR MASTER

€ 212.00

1

5960036810
ref: 1

PISTON & CUP SET

€ 38.50

2

5966704700
ref: 2

DIAPHRAGM

€ 8.00

3

5966904710
ref: 3

CAP

€ 12.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967136500
ref: 5

HOLDER

€ 10.00

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
