BATTERY

RG125BU 1988 (J) (E02 E04)

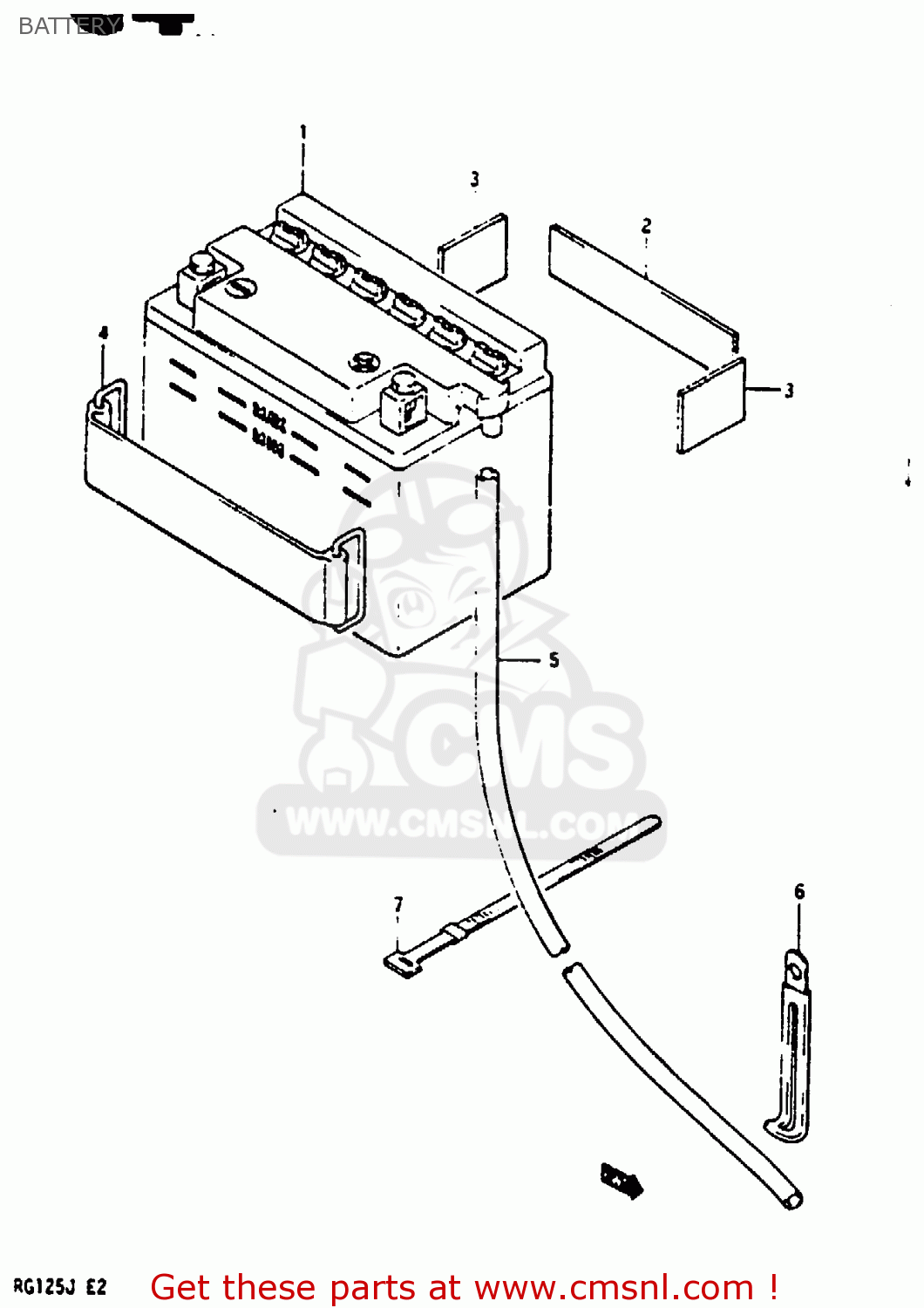

Battery diagram RG125BU 1988 (J) (E02 E04)

BATTERY RG125BU 1988 (J) (E02 E04)
BATTERY RG125BU 1988 (J) (E02 E04)
BATTERY RG125BU 1988 (J) (E02 E04)
prices are in EUR
ref
part #
description
quantity
1
3361002500
ref: 1
BATTERY ASSY(YB4L-B,12V4.2AH)
€ 26.50
2
3365229100
ref: 2
PROTECTOR,20X9
€ 5.00
3
3365137000
ref: 3
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
4
0946200067
ref: 4
BAND
0946200067
€ 4.50
5
3368031003
ref: 5
HOSE,BATTERY EXHAUST
€ 4.50
6
0940406405
ref: 6
CLAMP
€ 3.00
7
0940712403
ref: 7
CLAMP
€ 3.00
