MAGNE TO
RG125BU 1988 (J) (E02 E04)

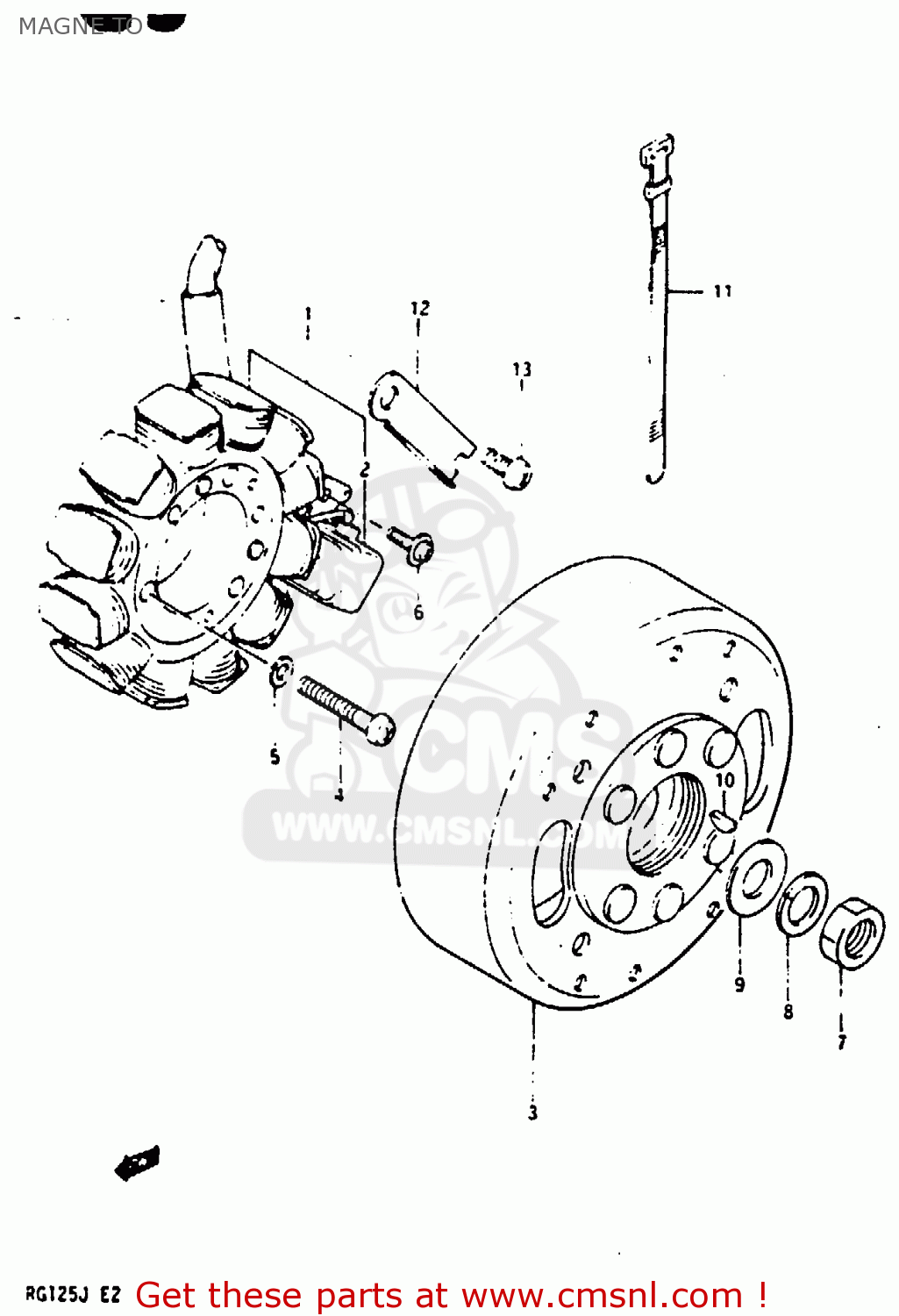

Magne to diagram RG125BU 1988 (J) (E02 E04)
MAGNE TO RG125BU 1988 (J) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1
3210136A00
ref: 1
STATOR ASSY
€ 256.00
2
3215036A00
ref: 2
TO 32150-18A00
SENSOR ASSY, TIMING
€ 65.50
3
3210236A00
ref: 3
ROTOR
€ 151.50
4
0211205308
ref: 4
SCREW
€ 1.50
5
0832121057
ref: 5
LOCK WASHER
€ 2.00
6
0215204128
ref: 6
SCREW
€ 2.00
7
0914010003
ref: 7
NUT (10MM)
€ 3.50
8
0832121107
ref: 8
WASHER,LOCK,10
€ 2.00
9
0832221108
ref: 9
WASHER
€ 2.50
10
0834131039
ref: 10
KEY
€ 2.00
11
0940714403
ref: 11
CLAMP(L:125)
€ 2.50
12
3237138A10
ref: 12
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
13
0211205107
ref: 13
SCREW
€ 2.00
