FRAME
RG125BU 1988 (J) (E02 E04)

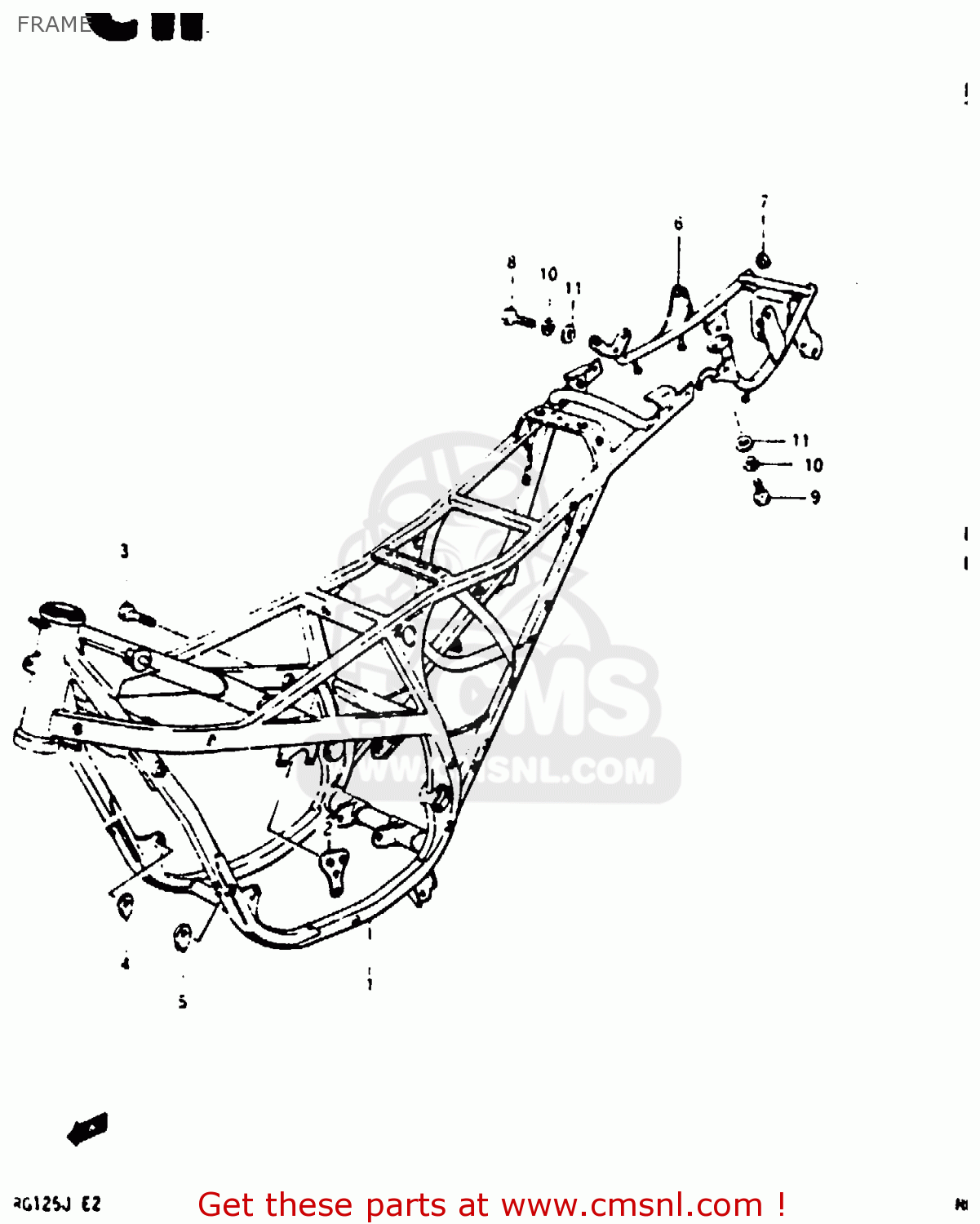

Frame diagram RG125BU 1988 (J) (E02 E04)
FRAME RG125BU 1988 (J) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110036A4113L
ref: 1-1
~F.NO. 101567
FRAME (SILVER)
€ 0.00
1-2
4110036A4213L
ref: 1-2
F.NO. 101568~
FRAME (SILVER)
€ 0.00
1-3
4110036A0113L
ref: 1-3
E4, E21, E24, E30, E
FRAME (SILVER)
€ 0.00
1-4
4110036A1113L
ref: 1-4
E15
FRAME (SILVER)
€ 0.00
1-5
4110036A2113L
ref: 1-5
E17
FRAME (SILVER)
€ 0.00
1-6
4110036A3113L
ref: 1-6
E18
FRAME (SILVER)
€ 474.50
2
4191036A03
ref: 2
PLATE, ENGINE MOUNT
€ 8.50
3
0910008249
ref: 3
BOLT
€ 0.00
4
0918110012
ref: 4
SHIM (T:0.3)
€ 0.00
5
0918110013
ref: 5
SHIM (T:0.5)
€ 0.00
6
4397036A00
ref: 6
GRIP, FRAME HANDLE
€ 78.50
7
0925012005
ref: 7
PLUG(OD:17)
€ 3.00
8
0110706207
ref: 8
BOLT
€ 2.00
9
0110706127
ref: 9
BOLT
€ 2.00
10
0832121067
ref: 10
WASHER,LOCK
€ 2.50
11
0832221067
ref: 11
WASHER
€ 2.00
