REAR SWINGING ARM
RG125BU 1988 (J) (E02 E04)

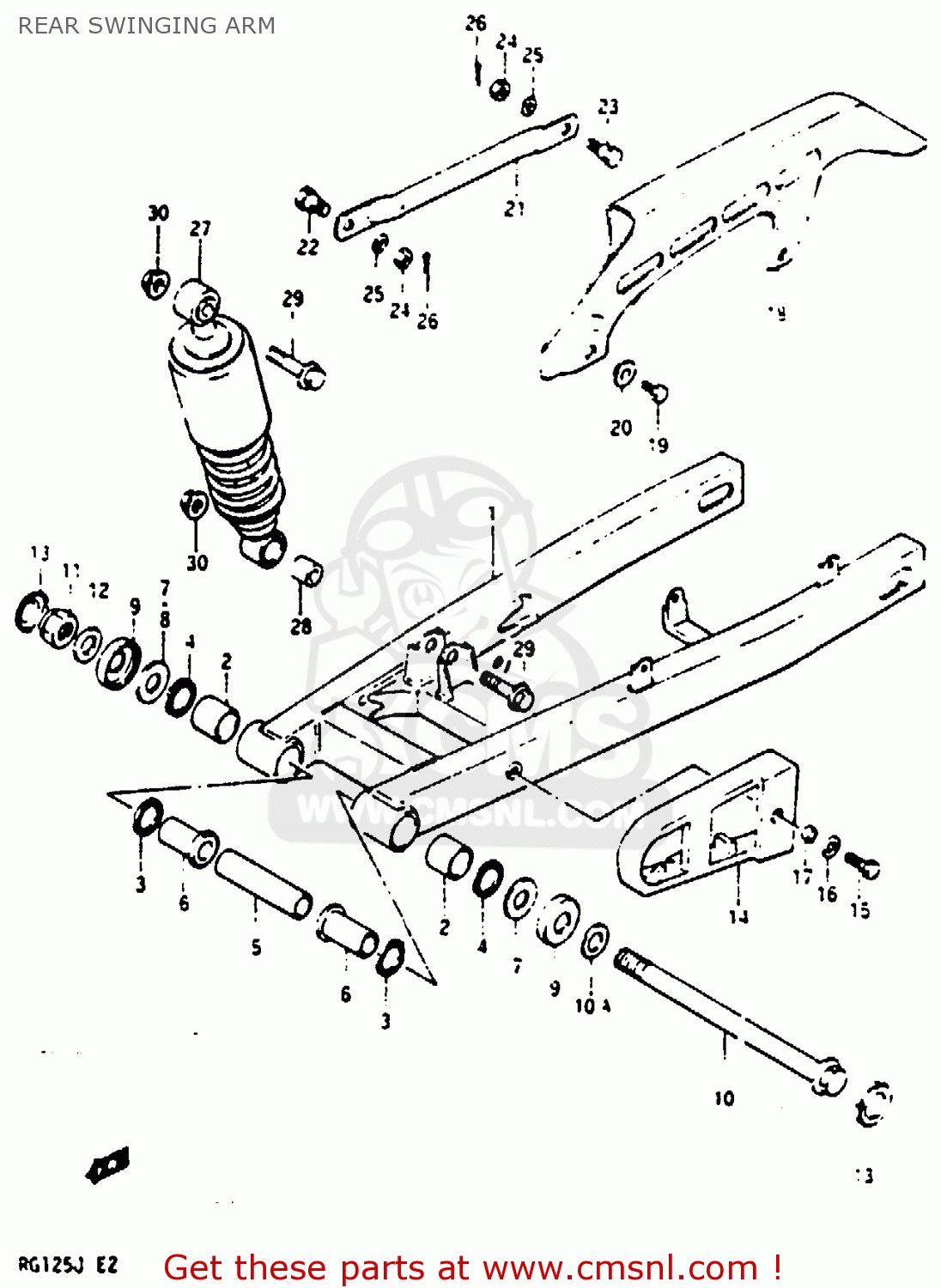

Rear swinging arm diagram RG125BU 1988 (J) (E02 E04)
REAR SWINGING ARM RG125BU 1988 (J) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1
6100036A0313L
ref: 1
SILVER
SWINGING ARM ASSY, REAR
€ 221.50
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
€ 8.00
3
0928620001
ref: 3
SEAL,OIL(20X27X5)
€ 2.50
4
0928520005
ref: 4
OIL SEAL
€ 5.00
5
6128236A00
ref: 5
SPACER,RR SWGARM CTR
€ 4.50
6
6125136A00
ref: 6
SPACER,RR SWGARM PIVOT
€ 17.50
7
0821114321
ref: 7
WASHER
€ 4.00
8
0821114322
ref: 8
WASHER
€ 2.50
9
6262444B10
ref: 9
SEAL,RR CUSHION LEVER CTR DUST
€ 19.50
10
6121136A03
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 85.00
10A
0916014047
ref: 10A
WASHER
€ 3.00
11
0915914019
ref: 11
NUT
€ 8.50
12
0916014027
ref: 12
WASHER(14.2X24X2.3)
€ 2.50
13
4149914A00019
ref: 13
CAP,CUSHION LEVER
€ 3.00
14
6127336A01
ref: 14
BUFFER, CHAIN TOUCH DIFFENCE
€ 24.00
15
0110706206
ref: 15
BOLT,M6X1X20
€ 2.00
16
0916006019
ref: 16
WASHER(6.5X16X1.2)
€ 1.50
17
0918006142
ref: 17
SPACER
€ 1.50
18
6131136A00291
ref: 18
CASE, CHAIN (BLACK)
€ 30.50
19
0910006092
ref: 19
BOLT 6X8
€ 2.50
20
0916906026
ref: 20
WASHER
€ 2.00
21
6431136A0013L
ref: 21
TORQUELINK,RR
€ 11.50
22
0911108012
ref: 22
BOLT(8X22.5)
€ 3.00
23
0911108013
ref: 23
BOLT(8X26.5)
€ 3.00
24
0914008008
ref: 24
NUT
€ 1.50
25
0832121088
ref: 25
LOCK WASHER
€ 2.00
26
0411120208
ref: 26
PIN 20X20
€ 1.50
27
6210036A11
ref: 27
ABSORBER ASSY, REAR SHOCK
€ 450.50
28
6218736A00
ref: 28
COLLAR
€ 9.50
29
0910310J44
ref: 29
BOLT
€ 0.00
30
0831931107
ref: 30
NUT
€ 3.00
