RADIATOR
RG125BU 1988 (J) (E02 E04)

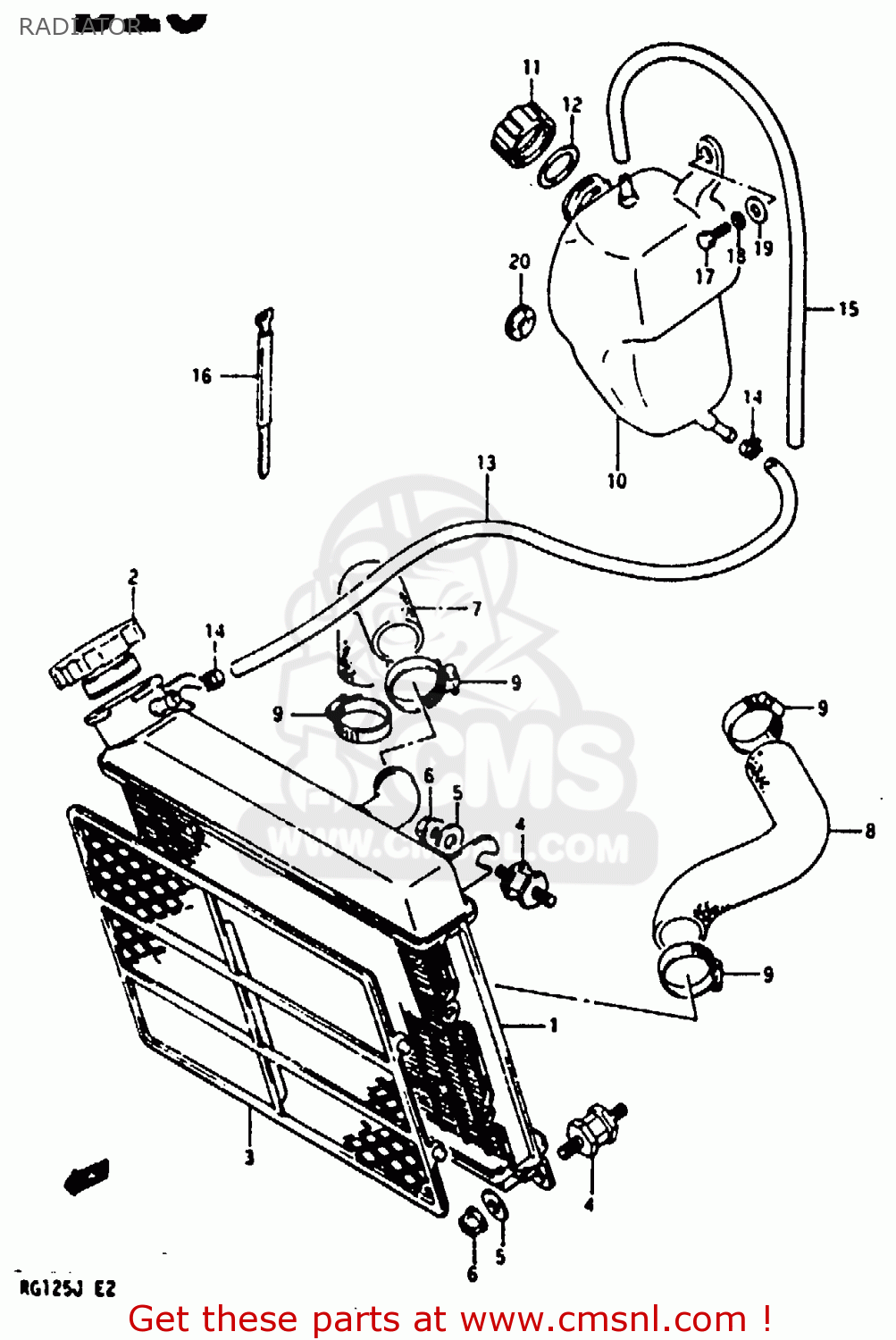

Radiator diagram RG125BU 1988 (J) (E02 E04)
RADIATOR RG125BU 1988 (J) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1
1771036A01
ref: 1
FROM 17710-36A00
RADIATOR ASSY, WATER
€ 470.50
2
1773013A00
ref: 2
CAP
€ 71.50
3
1799136A00
ref: 3
NET, RADIATOR
€ 16.50
4
1778813602
ref: 4
BOLT,RADIATOR CUSHION
€ 8.00
5
0916006038
ref: 5
WASHER
€ 2.00
6
0831616064
ref: 6
NUT 6MM
€ 2.50
7
1785136A00
ref: 7
HOSE, INLET
€ 23.00
8
1785236A01
ref: 8
HOSE,RADIATOR OUTLET
€ 15.00
9
0940225502
ref: 9
CLAMP
€ 8.50
10
1790036A10
ref: 10
TANK ASSY, RESERVER
€ 35.00
11
1784513700
ref: 11
CAP,RESERVOIR TANK
€ 11.50
12
1784413700
ref: 12
GASKET,RESERVOIR TANK CAP (NAS)
€ 2.50
13
093525090100A
ref: 13
HOSE
€ 19.50
14
0940108407
ref: 14
CLIP
€ 3.00
15
093525090100A
ref: 15
HOSE
€ 19.50
16
0940718301
ref: 16
MODEL G/H
CLAMP
€ 6.00
17
0110706207
ref: 17
BOLT
€ 2.00
18
0832121067
ref: 18
WASHER,LOCK
€ 2.50
19
0916006027
ref: 19
WASHER (6.5X20X1.2)
€ 2.00
20
0932008039
ref: 20
CUSHION
€ 0.00
