CARBURETOR
RG250 1986 (G) (E01 E15 E21 E25 E34)

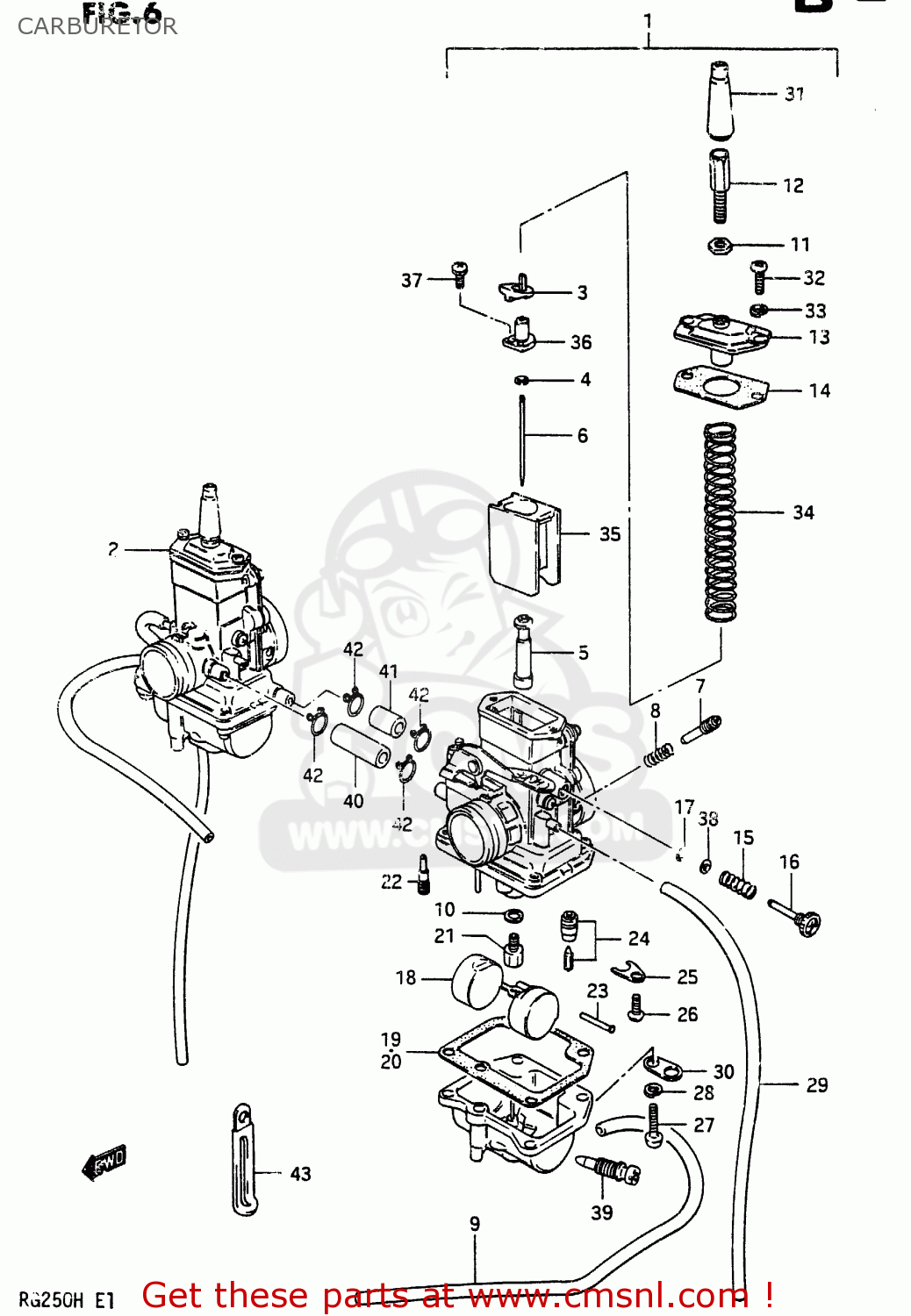

Carburetor diagram RG250 1986 (G) (E01 E15 E21 E25 E34)
CARBURETOR RG250 1986 (G) (E01 E15 E21 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1320140A01
ref: 1
CARBURETOR ASSY,L
€ 0.00
1
1320140A11
ref: 1
E2,E4,E15,E16,E21,E2
CARBURETOR ASSY, LH
€ 0.00
2
1320240A01
ref: 2
CARBURETOR ASSY, RH
€ 0.00
2
1320240A11
ref: 2
E2,E4,E15,E16,E21,E2
CARBURETOR ASSY, RH
€ 0.00
3
1362916700
ref: 3
RING
€ 11.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
0949400471
ref: 5
JET,NEEDLE(P-0)
€ 27.00
5
0949400527
ref: 5
E2,E4,E15,E16,E21,E2
JET, NEEDLE (P-O)
€ 27.00
6
1338340A00
ref: 6
NEEDLE,JET
€ 14.00
6
1338340A00
ref: 6
E2,E4,E15,E16,E21,E2
NEEDLE,JET
€ 14.00
7
1326916700
ref: 7
1 3/4
SCREW,AIR
€ 9.50
8
1326801010
ref: 8
SPRING
€ 3.50
9
1368440A00
ref: 9
HOSE(3X5X650)
€ 7.50
10
1333244080
ref: 10
WASHER,NEEDLE NOZZLE
€ 2.50
11
1366116600
ref: 11
NUT
€ 5.00
12
1357741612
ref: 12
ADJUSTER,CABLE
€ 8.00
13
1326116700
ref: 13
CAP,CARBURETOR TOP
€ 14.50
14
1326616700
ref: 14
GASKET,CARBURETOR TOP (NAS)
€ 6.00
15
1326835010
ref: 15
SPRING
€ 3.00
16
1326716700
ref: 16
ADJUSTER,THROTTLE STOP
€ 11.00
17
1329533010
ref: 17
O RING
€ 4.50
18
1325229630
ref: 18
FLOAT
€ 22.50
19
1325129630
ref: 19
LH
GASKET,FLOAT CHAMBER (NAS)
€ 7.00
20
1325116700
ref: 20
RH
GASKET, FLOAT CHAMBER
€ 7.00
21
0949132002
ref: 21
JET,MAIN(160)
€ 6.50
22
0949220008
ref: 22
FROM 09492-20002
JET,PILOT 20
€ 10.00
23
1325492311
ref: 23
PIN,FLOAT
€ 2.00
24
1337046900
ref: 24
VALVE ASSY,NEEDLE
€ 54.50
25
1337339110
ref: 25
PLATE
€ 6.50
26
0211204086
ref: 26
SCREW
€ 2.00
27
0211204167
ref: 27
SCREW
€ 1.00
28
0832121047
ref: 28
WASHER,LOCK 4M
€ 2.00
29
1368337420
ref: 29
L:510->130
HOSE
€ 5.50
30
1369336500
ref: 30
PLATE,CARBURETOR
€ 3.50
31
1368133010
ref: 31
CAP,CABLE ADJUSTER
€ 8.00
32
0211204126
ref: 32
SCREW
€ 1.50
33
0832121046
ref: 33
LOCK WASHER
€ 2.00
34
1357316700
ref: 34
SPRING
€ 6.00
35
1355116700
ref: 35
VALVE, THROTTLE (CA:2.0)
€ 0.00
36
1339816700
ref: 36
JOINT
€ 7.00
37
1360103108
ref: 37
SCREW
€ 1.50
38
1329135010
ref: 38
WASHER
€ 2.50
39
1324702340
ref: 39
PLUG,DRAIN
€ 5.50
40
1368316700
ref: 40
HOSE
€ 21.00
41
1368316700
ref: 41
HOSE
€ 21.00
42
1367133110
ref: 42
CLIP
€ 3.00
43
0940406404
ref: 43
CLAMP
€ 3.00
