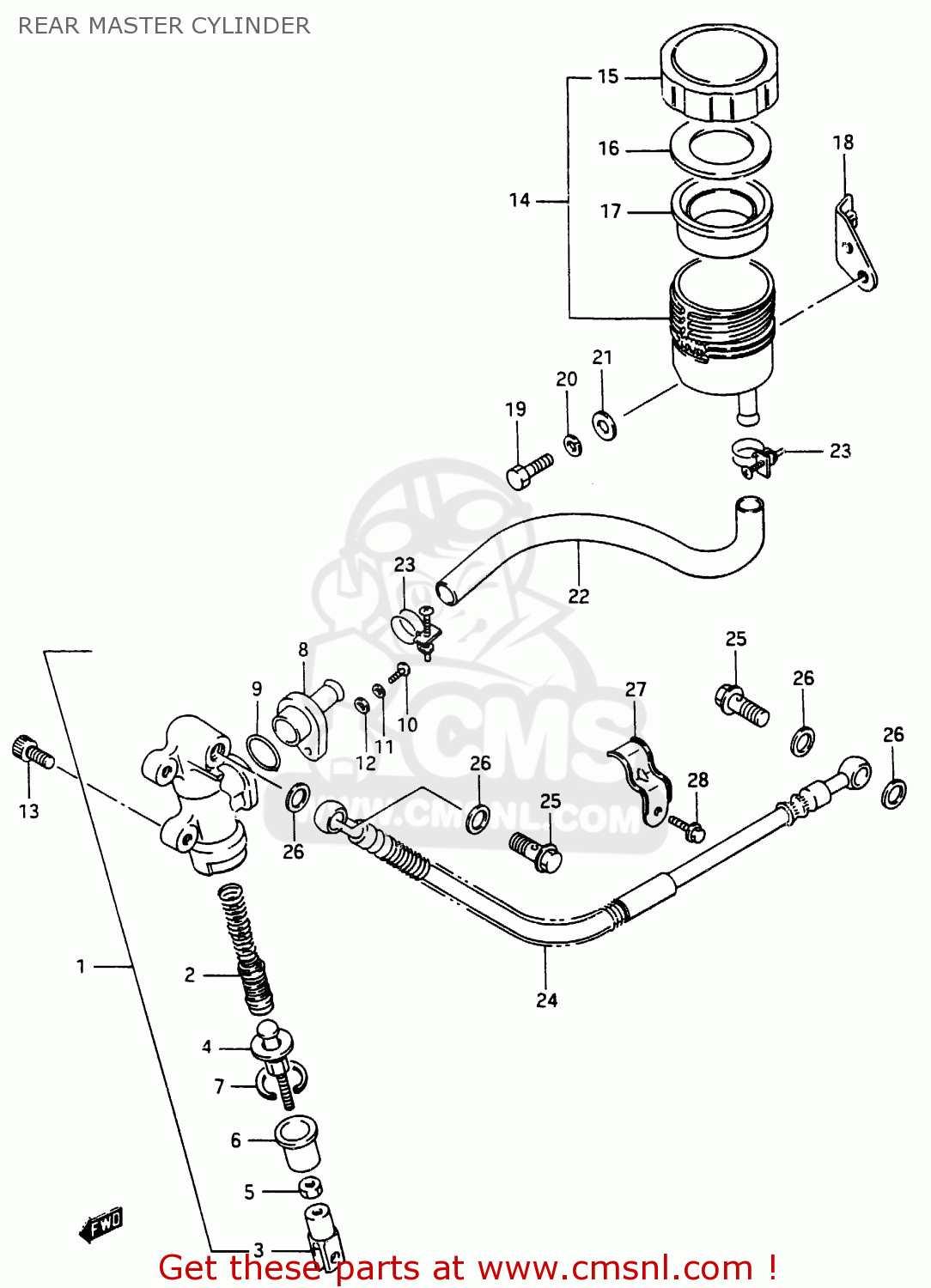

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960040A00
ref: 1

CYLINDER ASSY,RR MASTER

€ 140.50

2

6960004810
ref: 2

PISTON/CUP SET

€ 42.50

3

6969234300
ref: 3

YOKE

€ 11.00

4

6967040A00
ref: 4

ROD,PUSH

€ 12.50

5

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967200A00
ref: 8

CONNECTOR

€ 5.50

9

6968634200
ref: 9

O RING

€ 3.50

10

0211204124
ref: 10

SCREW

€ 1.50

11

0832121045
ref: 11

LOCK WASHER

€ 2.00

12

0832221045
ref: 12

WASHER

€ 5.00

13

0711006165
ref: 13

BOLT

€ 3.00

14

6974034200
ref: 14
MODEL G

TANK ASSEMBLY,RESERVOIR

€ 27.50

14

6974034201
ref: 14
MODEL H

TANK ASSEMBLY,RESERVOIR

€ 27.50

15

5966918605
ref: 15
MODEL G

CAP

€ 16.50

15

5966920A00
ref: 15
MODEL H

CAP

€ 16.50

16

5966818441
ref: 16

PLATE,DIAPHRAGM

€ 3.50

17

5966718441
ref: 17

DIAPHRAGM

€ 8.50

18

6975040A00
ref: 18

PLATE, RESERVOIR TANK

€ 0.00

19

0110706166
ref: 19

BOLT

€ 2.00

20

0832121067
ref: 20

WASHER,LOCK

€ 2.50

21

0832221067
ref: 21

WASHER

€ 2.00

22

6973140A02
ref: 22

HOSE, RESERVOIR TANK

€ 0.00

23

0940016302
ref: 23

CLAMP

€ 4.50

24

6948040A02
ref: 24

HOSE, REAR BRAKE

€ 90.50

25

0936010017
ref: 25

BOLT UNION

€ 6.50

26

0916110009
ref: 26

WASHER(10X15X1.5)

€ 2.00

27

6119604A00
ref: 27

GUIDE,REAR BRAKE HOSE

€ 7.00

28

0151705128
ref: 28

BOLT

€ 2.50

all assemblies
