OIL TANK

RG250 1986 (G) (E01 E15 E21 E25 E34)

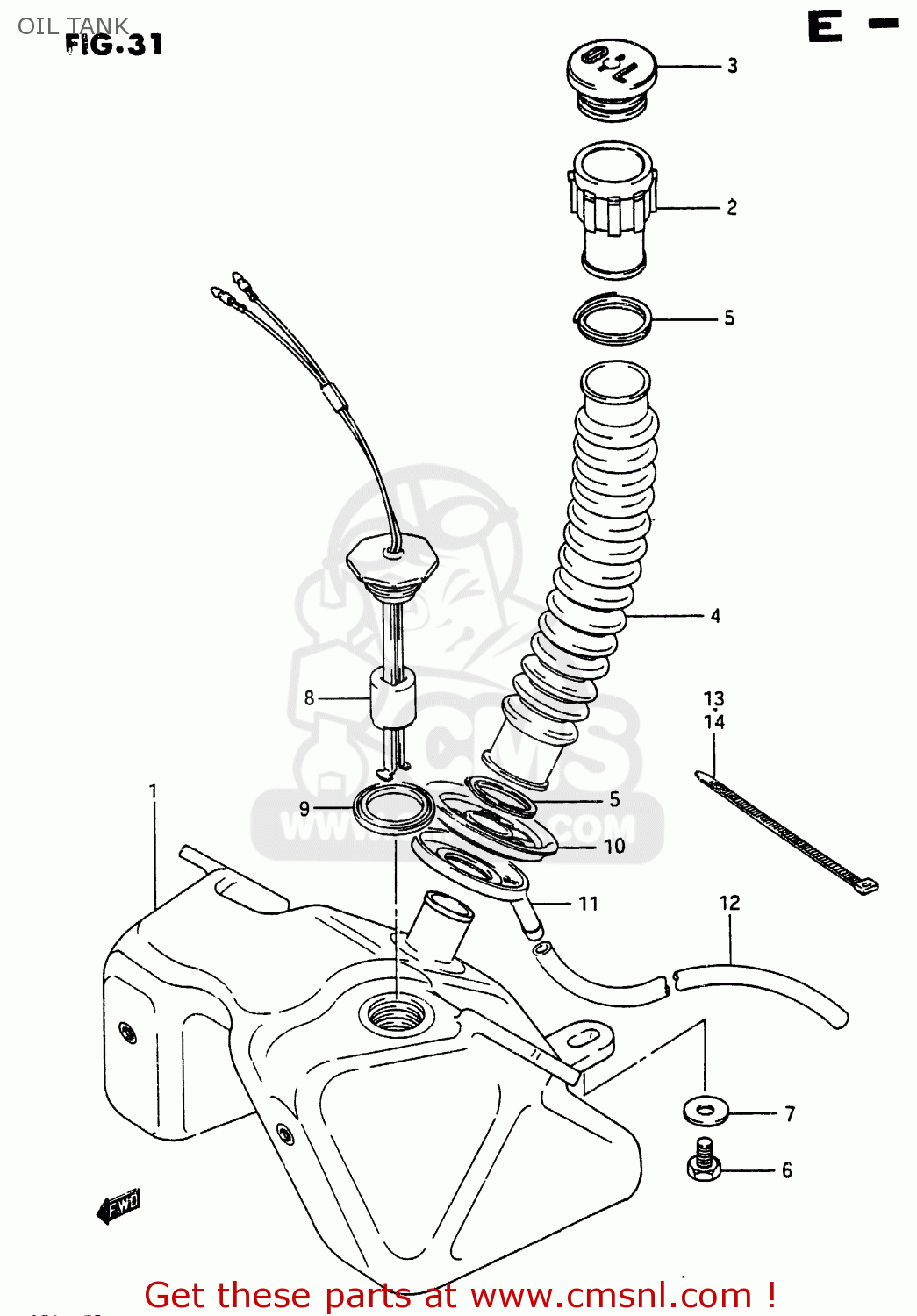

Oil tank diagram RG250 1986 (G) (E01 E15 E21 E25 E34)

OIL TANK RG250 1986 (G) (E01 E15 E21 E25 E34)

OIL TANK RG250 1986 (G) (E01 E15 E21 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4461116700
ref: 1

TANK, OIL

€ 49.00

2

4461316700
ref: 2

INLET, OIL TANK

€ 4.00

3

4465104701
ref: 3

CAP,OIL TANK

€ 5.00

4

4475116700
ref: 4

HOSE, OIL TANK

€ 7.00

5

0940123401
ref: 5

CLIP

€ 2.00

6

0110706166
ref: 6

BOLT

€ 2.00

7

0916006007
ref: 7

WASHER

€ 2.00

8

3788040A00
ref: 8

SWITCH,OIL LVL

€ 36.00

9

4464331000
ref: 9

GASKET (NAS)

€ 2.50

10

4466116700
ref: 10

RUBBER, OIL TANK

€ 5.00

11

4468216700
ref: 11

TRAY, FUEL/OIL DRAIN

€ 3.50

12

0934305165
ref: 12

HOSE,FUEL

€ 13.00

13

0940714401
ref: 13

CLAMP

€ 3.00

14

0940718401
ref: 14

CLAMP(L:187)

€ 2.00
