FRONT CALIPERS
RG250 1986 (G) (E01 E15 E21 E25 E34)

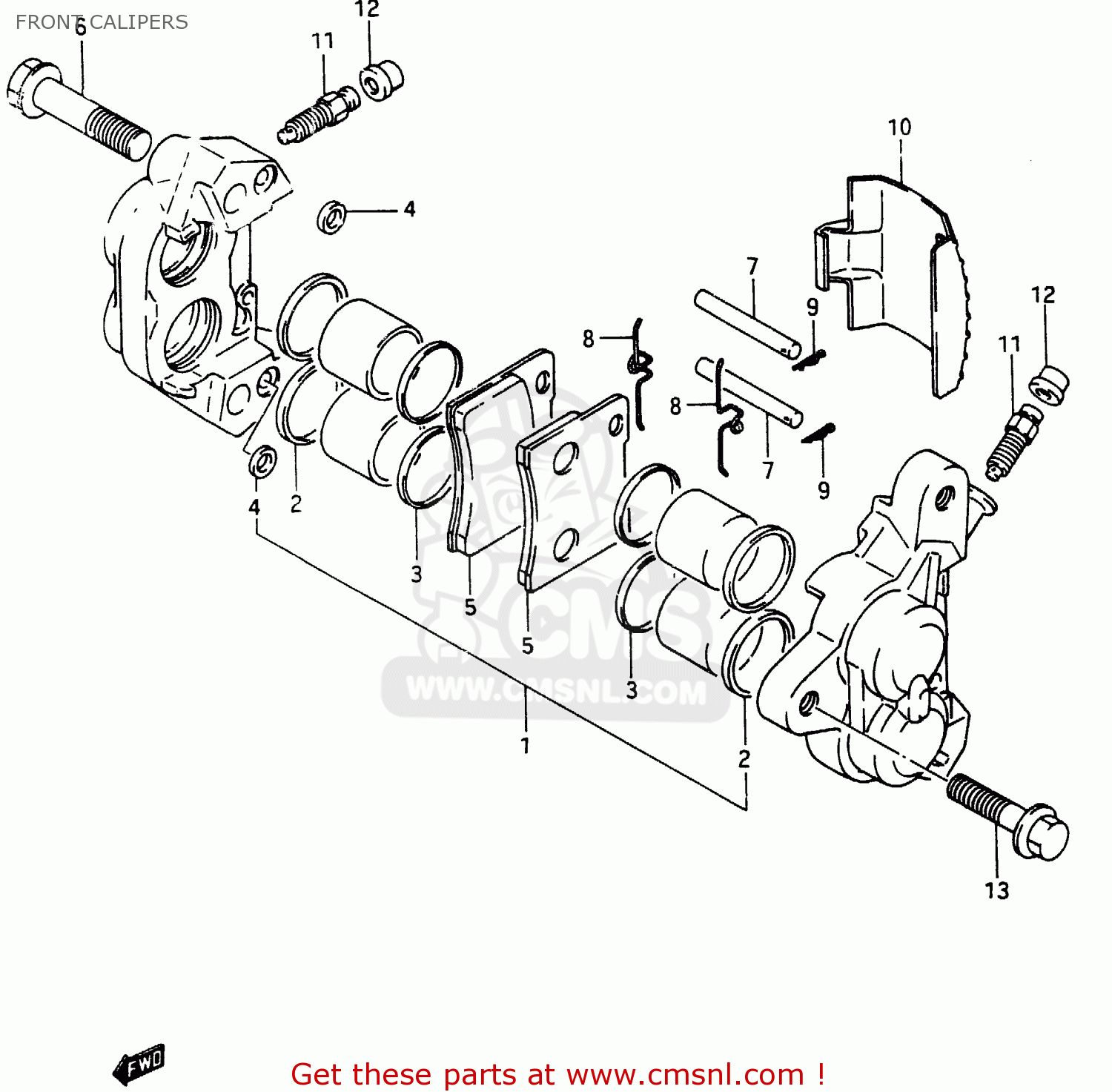

Front calipers diagram RG250 1986 (G) (E01 E15 E21 E25 E34)
FRONT CALIPERS RG250 1986 (G) (E01 E15 E21 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
0
5910004A51
ref: 0
CALIPERS ASSY, RH
€ 473.50
0
5930004A51
ref: 0
CALIPERS ASSY, LH
€ 526.00
1
5910004810
ref: 1
PISTON&PAD SET
€ 114.50
2
5910704A00
ref: 2
SEAL,PISTON
€ 12.00
3
5910804A00
ref: 3
SEAL,WIPER
€ 10.50
4
6910734200
ref: 4
SEAL,JOINT
€ 12.00
5
5913004A00
ref: 5
PAD,BRAKE (NAS)
€ 43.00
6
5914516700
ref: 6
BOLT,HOUSING
€ 8.00
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
5914316700
ref: 8
SPRING
€ 7.50
9
6914245000
ref: 9
CLIP,PAD PIN
€ 4.50
10
5915104A01
ref: 10
COVER,CALIPER
€ 55.00
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
€ 6.00
13
0151708358
ref: 13
BOLT
€ 3.50
