FUEL COCK

RG250 1986 (G) (E01 E15 E21 E25 E34)

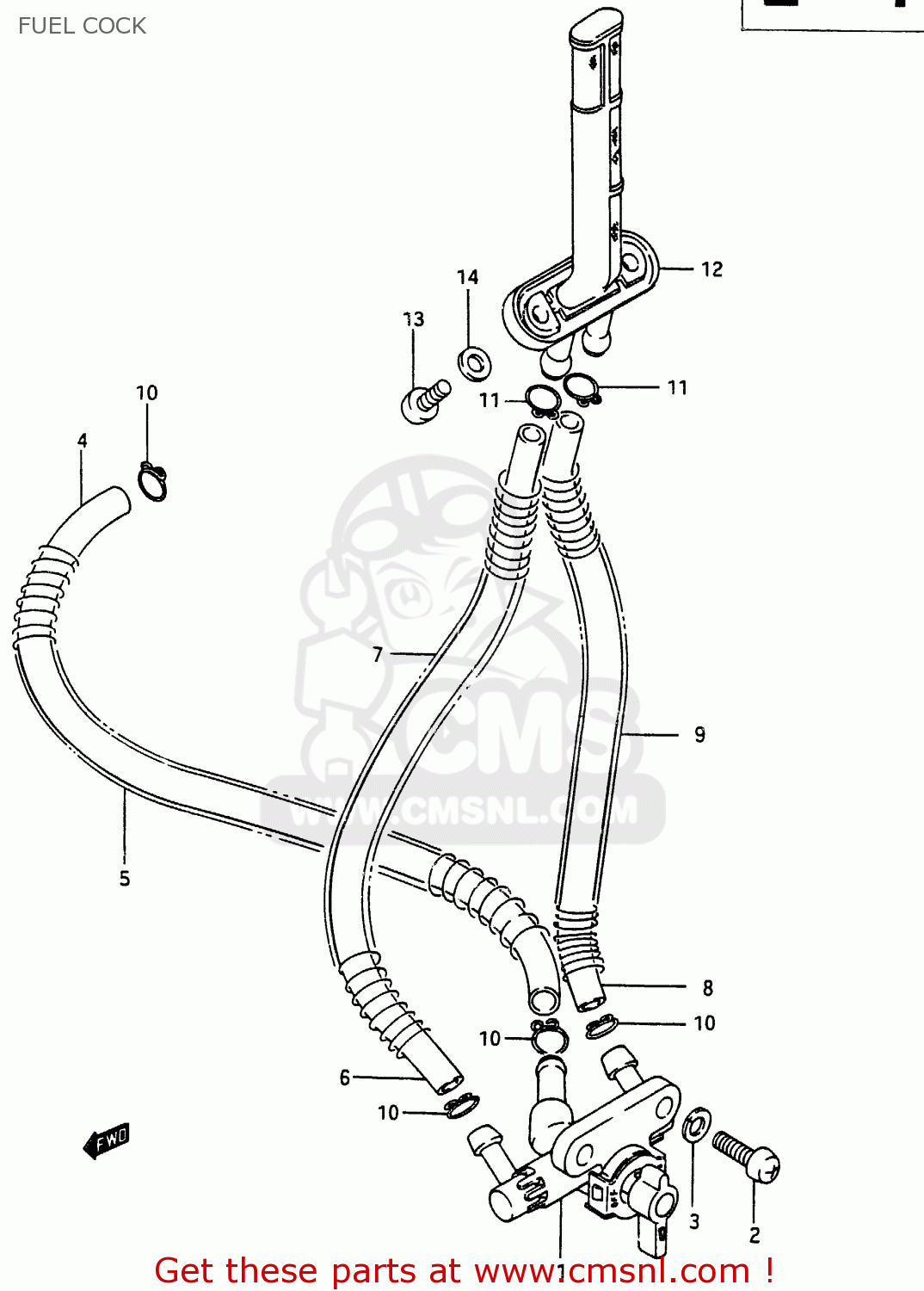

Fuel cock diagram RG250 1986 (G) (E01 E15 E21 E25 E34)

FUEL COCK RG250 1986 (G) (E01 E15 E21 E25 E34)

FUEL COCK RG250 1986 (G) (E01 E15 E21 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4430016701
ref: 1

COCK ASSY, FUEL

€ 58.50

2

0211206167
ref: 2

SCREW

€ 2.50

3

0832121067
ref: 3

WASHER,LOCK

€ 2.50

4

0934307073
ref: 4

HOSE

€ 17.50

5

0944013035
ref: 5

SPRING

€ 6.00

6

0934307150
ref: 6

HOSE

€ 3.00

7

0944013016
ref: 7

SPRING

€ 14.50

8

0934307151
ref: 8

HOSE

€ 3.00

9

0944013016
ref: 9

SPRING

€ 14.50

10

0940110402
ref: 10

CLIP

€ 7.00

11

0940110401
ref: 11

CLIP

€ 1.50

12

4433040A00
ref: 12

UNIT, FUEL FILTER

€ 20.00

13

0912806006
ref: 13

BOLT(6X20)

€ 2.00

14

0916806010
ref: 14

GASKET

€ 2.00
