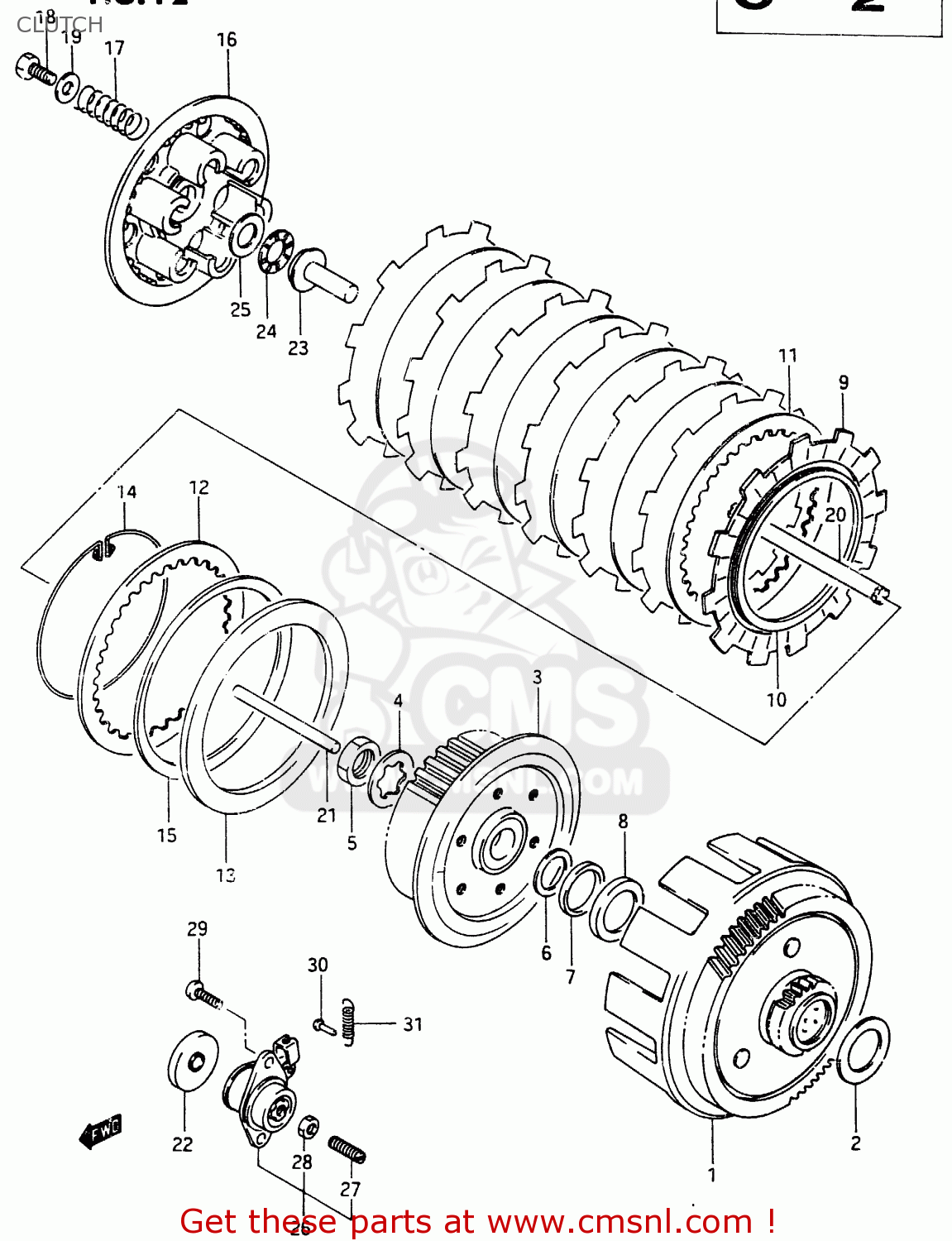

CLUTCH

ref

part #

description

quantity

1

2120016710
ref: 1
NT:72/20

GEAR ASSY, PRIMARY DRIVEN

€ 246.50

2

0821125381
ref: 2

WASHER

€ 3.00

3

2141040A00
ref: 3

HUB,CLUTCH SLEEVE

€ 86.00

4

0916720006
ref: 4

WASHER,LOCK

€ 3.00

5

0914020002
ref: 5

NUT (20MM)

€ 3.50

6

0821120382
ref: 6

WASHER

€ 3.00

7

0916127001
ref: 7

WASHER (27X34X2)

€ 2.00

8

0916925002
ref: 8

WASHER

€ 7.00

9

2144140A01
ref: 9

PLATE,CLUTCH (MCA)

€ 16.50

10

2149140A00
ref: 10

V RING

€ 17.00

11

2145140A00
ref: 11

PLATE, CLUTCH DRIVEN (T:1.6)

€ 10.50

12

2145140A10
ref: 12

PLATE, CLUTCH DRIVEN (T:2.0)

€ 9.00

13

2147145101
ref: 13

SEAT,WAVE WASHER

€ 16.00

14

2148140A10
ref: 14

RING,WAVE WASHER STOPPER

€ 5.50

15

0916400003
ref: 15

WASHER

€ 9.00

16

2146214301
ref: 16

DISC,CLUTCH PRESSURE

€ 51.00

17

0944019013
ref: 17

SPRING

€ 5.50

18

0110706166
ref: 18

BOLT

€ 2.00

19

0916006020
ref: 19

WASHER

€ 2.00

20

2311058400
ref: 20

ROD, CLUTCH PUSH

€ 0.00

21

2311116710
ref: 21

ROD, CLUTCH PUSH NO.1

€ 15.50

22

0928506008
ref: 22

SEAL,OIL(6X35X5.5)

€ 13.50

23

2312144100
ref: 23

PIECE,CLUTCH PUSH

€ 21.50

24

0926315003
ref: 24

BEARING(15X28X2)

€ 7.00

25

0916015015
ref: 25

WASHER

€ 4.00

26

2320015500
ref: 26

SCREW ASSY,CLUTCH RELEASE

€ 46.50

27

0913406010
ref: 27

SCREW(6X25)

€ 3.00

28

0831022067
ref: 28

NUT 6MM

€ 2.50

29

0211206128
ref: 29

SCREW 6X12

€ 2.00

30

0922304001
ref: 30

RIVET

€ 1.50

31

0944308038
ref: 31

SPRING

€ 2.00
