COWLING (MODEL F)

RG80C 1985 (F) FRANCE GERMANY (E04 E22)

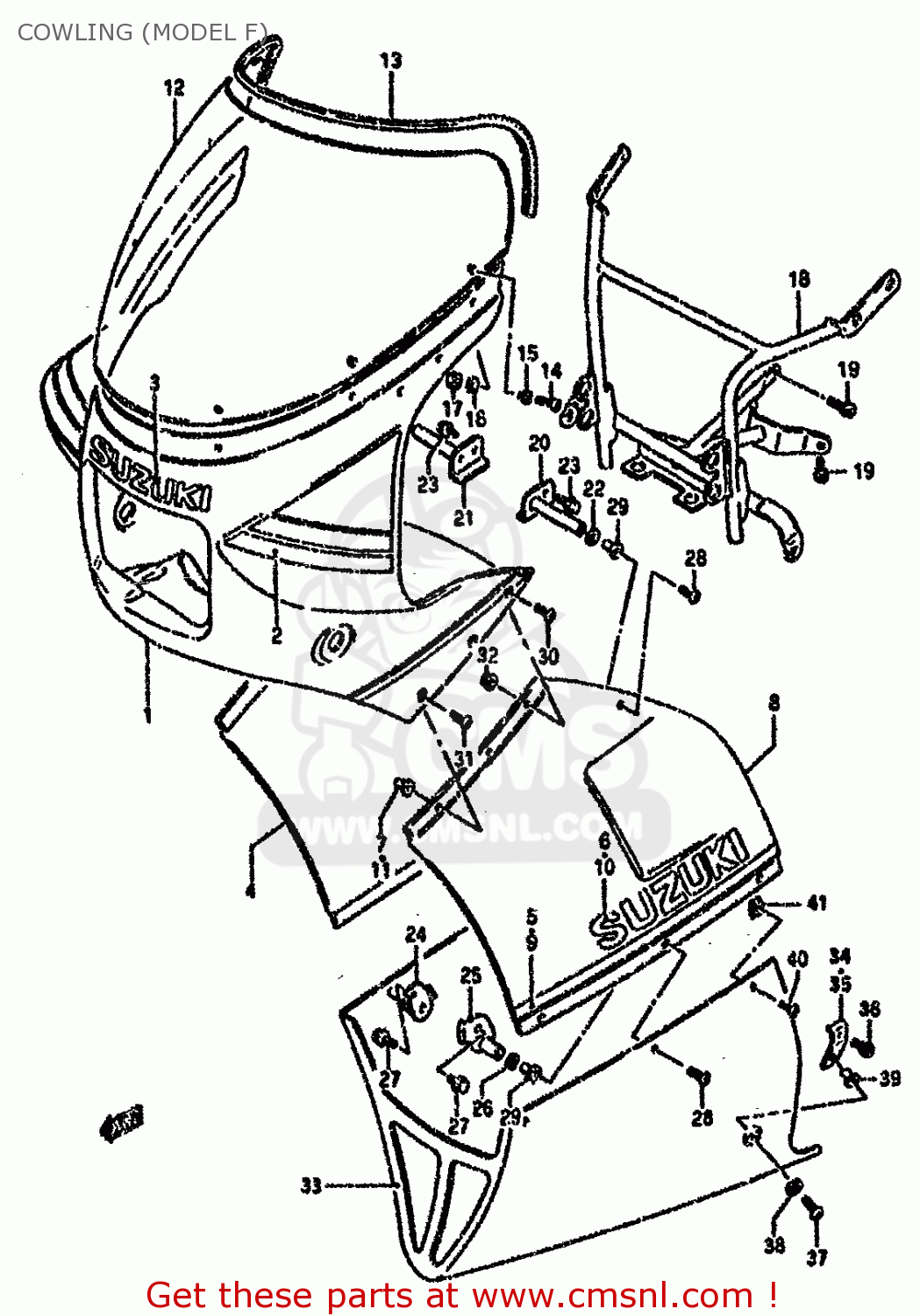

Cowling (model f) diagram RG80C 1985 (F) FRANCE GERMANY (E04 E22)

COWLING (MODEL F) RG80C 1985 (F) FRANCE GERMANY (E04 E22)
COWLING (MODEL F) RG80C 1985 (F) FRANCE GERMANY (E04 E22)
COWLING (MODEL F) RG80C 1985 (F) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
9441036A1019F
ref: 1-1
BODY,COWLING (BLUE)
9441036A1019F
€ 302.50
1-2
9441036A1014C
ref: 1-2
BODY,COWLING (RED
9441036A1014C
€ 302.50
2-1
6819036A007VN
ref: 2-1
FOR 19F
TAPE SET,COWLING
€ 36.50
2-2
6819036A007UY
ref: 2-2
FOR 14C
TAPE SET,COWLING
6819036A007UY
€ 42.00
3
6827143400064
ref: 3
EMBLEM,HEADLAMP
6827143400064
€ 4.00
4-1
9443036A2014L
ref: 4-1
FOR 19F
COVER,SIDE RH (WHITE)
€ 145.50
4-2
9443036A2008X
ref: 4-2
FOR 14C
COVER,SIDE RH (WHITE)
€ 145.50
5-1
6868036A0008L
ref: 5-1
FOR 14L
TAPE SET,SIDE RH (BLUE)
€ 6.50
5-2
6868036A0024M
ref: 5-2
FOR 08X
TAPE SET,SIDE RH (GRAY)
€ 0.00
6
681114340007G
ref: 6
EMBLEM
681114340007G
€ 8.00
7
9443416710
ref: 7
NUT,COWLING COVER
9443416710
€ 4.50
8-1
9444036A2014L
ref: 8-1
FOR 19F
COVER,SIDE LH (WHITE)
€ 145.50
8-2
9444036A2008X
ref: 8-2
FOR 14C
COVER,SIDE LH (WHITE)
€ 145.50
9-1
6869036A0008L
ref: 9-1
FOR 14L
TAPE SET,SIDE LH (BLUE)
6869036A0008L
€ 6.50
9-2
6869036A0024M
ref: 9-2
FOR 08X
TAPE SET,SIDE LH (GRAY)
€ 0.00
10
681114340007G
ref: 10
EMBLEM
681114340007G
€ 8.00
11
9443416710
ref: 11
NUT,COWLING COVER
9443416710
€ 4.50
12-1
9461136A00
ref: 12-1
E4
SCREEN,COWLING WIND
€ 244.50
12-2
9461146A00
ref: 12-2
E22
WIND SCREE,COWLING
€ 238.00
13
9463136A00
ref: 13
MOLDING, SCREEN
9463136A00
€ 15.00
14
0913905024
ref: 14
SCREW(5X14)
0913905024
€ 2.50
15
0932005008
ref: 15
CUSHION
0932005008
€ 5.00
16
0832221055
ref: 16
WASHER,5MM
0832221055
€ 2.50
17
0831921055
ref: 17
NUT 8MM
0831921055
€ 1.50
18
9451036A01
ref: 18
BRACE,COWLING
€ 85.00
19
0712006165
ref: 19
BOLT
€ 2.50
20
9452036A00
ref: 20
BRACE,COWLING RR
9452036A00
€ 9.00
21
9459036A00
ref: 21
BRACE,REAR RH
9459036A00
€ 8.00
22
0916010026
ref: 22
WASHER (10.5X18X1)
0916010026
€ 2.00
23
0712006168
ref: 23
BOLT
€ 2.50
24
9453036A00
ref: 24
BRACE,SIDE RH
9453036A00
€ 6.50
25
9454036A00
ref: 25
BRACE,SIDE LH
€ 8.00
26
0916010026
ref: 26
WASHER (10.5X18X1)
0916010026
€ 2.00
27
0151706167
ref: 27
BOLT 6X16
0151706167
€ 1.50
28
0214205257
ref: 28
SCREW
0214205257
€ 1.00
29
9461936A10
ref: 29
NUT
9461936A10
€ 6.50
30
0214206127
ref: 30
SCREW 6X12
0214206127
€ 1.50
31
0214206167
ref: 31
SCREW
0214206167
€ 2.00
32
0831626068
ref: 32
NUT 6MM
0831626068
€ 2.00
33-1
9447046A007TG
ref: 33-1
OPT,FOR 19F
COVER,LOWER (WHITE/BLUE)
€ 0.00
33-2
9447046A007VA
ref: 33-2
OPT,FOR 14C
COVER,LOEWR (WHITE/RED)
€ 0.00
34
9457036A00
ref: 34
OPT
BRACE,COWLING LWR COVER
9457036A00
€ 5.00
35
9457046A00
ref: 35
OPT
BRACE,COWLING LWR COVER,R
9457046A00
€ 7.50
36
0151706167
ref: 36
OPT
BOLT 6X16
0151706167
€ 1.50
37
0214205207
ref: 37
OPT
SCREW
0214205207
€ 2.00
38
0832221057
ref: 38
OPT
WASHER
0832221057
€ 2.50
39
9461936A10
ref: 39
OPT
NUT
9461936A10
€ 6.50
40
0214205128
ref: 40
OPT
SCREW
0214205128
€ 1.50
41
0914805023
ref: 41
OPT
NUT
0914805023
€ 1.50
