FRONT DAMPER
RG80C 1985 (F) FRANCE GERMANY (E04 E22)

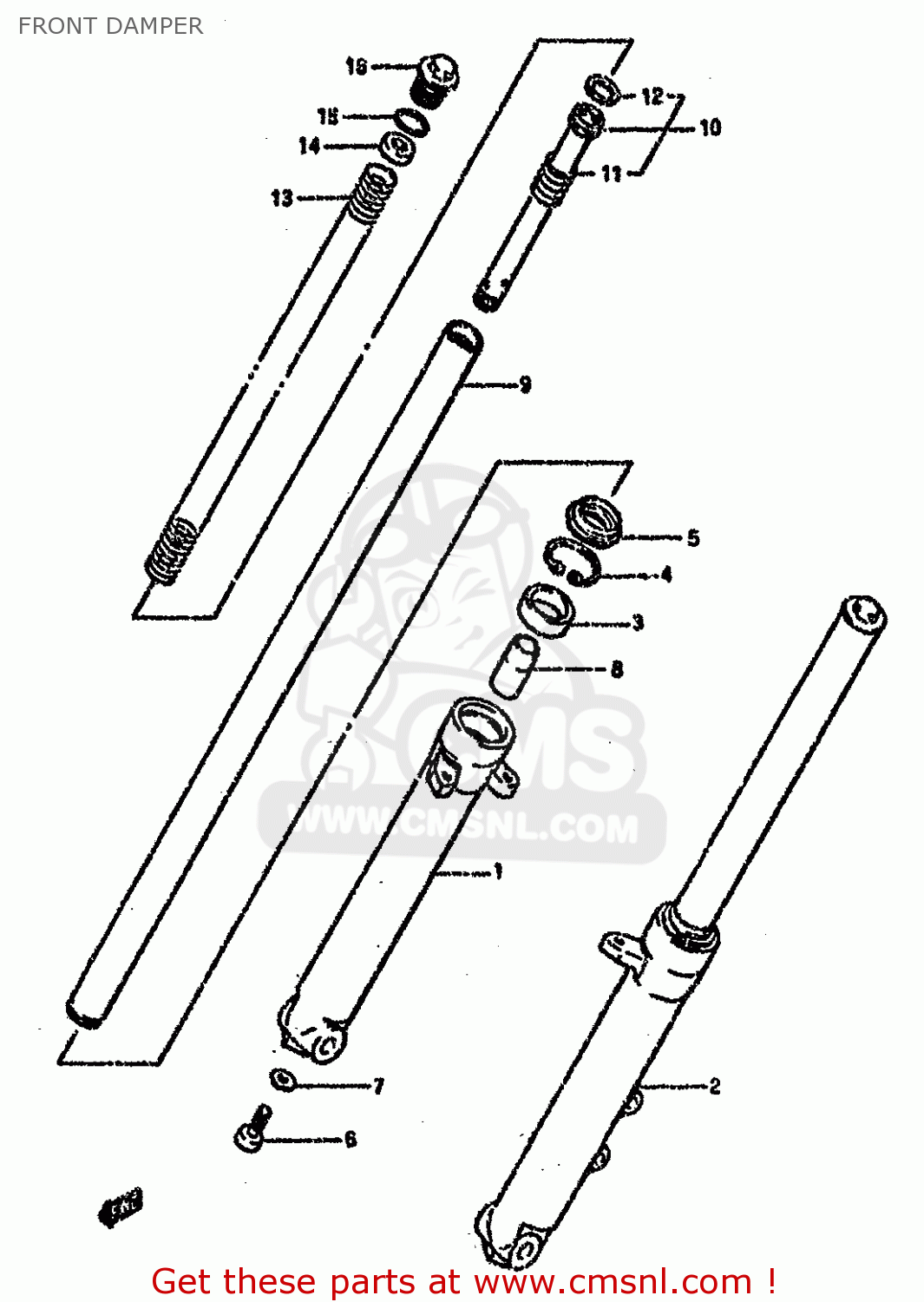

Front damper diagram RG80C 1985 (F) FRANCE GERMANY (E04 E22)
FRONT DAMPER RG80C 1985 (F) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
0
5110336A00
ref: 0
DAMPER ASSY,FR FORK,R
€ 366.50
0
5110436A00
ref: 0
DAMPER ASSY,FR FORK,L
€ 0.00
1
5113036A00
ref: 1
TUBE,OUTER,R
€ 0.00
2
5114036A00
ref: 2
OUTER TUBE, LH
€ 160.00
3
5115336A00
ref: 3
SEAL,OIL
€ 10.50
4
5115639260
ref: 4
RING,SNAP
€ 2.50
5
5117336A00
ref: 5
DUST SEAL,FR F
€ 10.50
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5114841310
ref: 7
GASKET (NAS)
€ 2.50
8
5119536220
ref: 8
PIECE,OIL LOCK
€ 11.50
9
5111036A00
ref: 9
TUBE,INNER
€ 195.00
10
5114636A00
ref: 10
CYLINDER
€ 38.50
11
5117736A00
ref: 11
SPRING,REBOUND
€ 5.50
12
5119636A00
ref: 12
RING,FR FORK PISTON
€ 3.00
13
5117136A00
ref: 13
SPRING
€ 27.00
14
5135336220
ref: 14
NUT
€ 7.00
15-1
5111736220
ref: 15-1
MODEL F/H/J
O RING
€ 2.00
15-2
0928022001
ref: 15-2
MODEL M
O RING(D:2.4,ID:21.8)
€ 2.00
16-1
5135139220
ref: 16-1
MODEL F/H/J
CAP
€ 12.00
16-2
5135139221
ref: 16-2
MODEL M
CAP,FORK
€ 12.00
