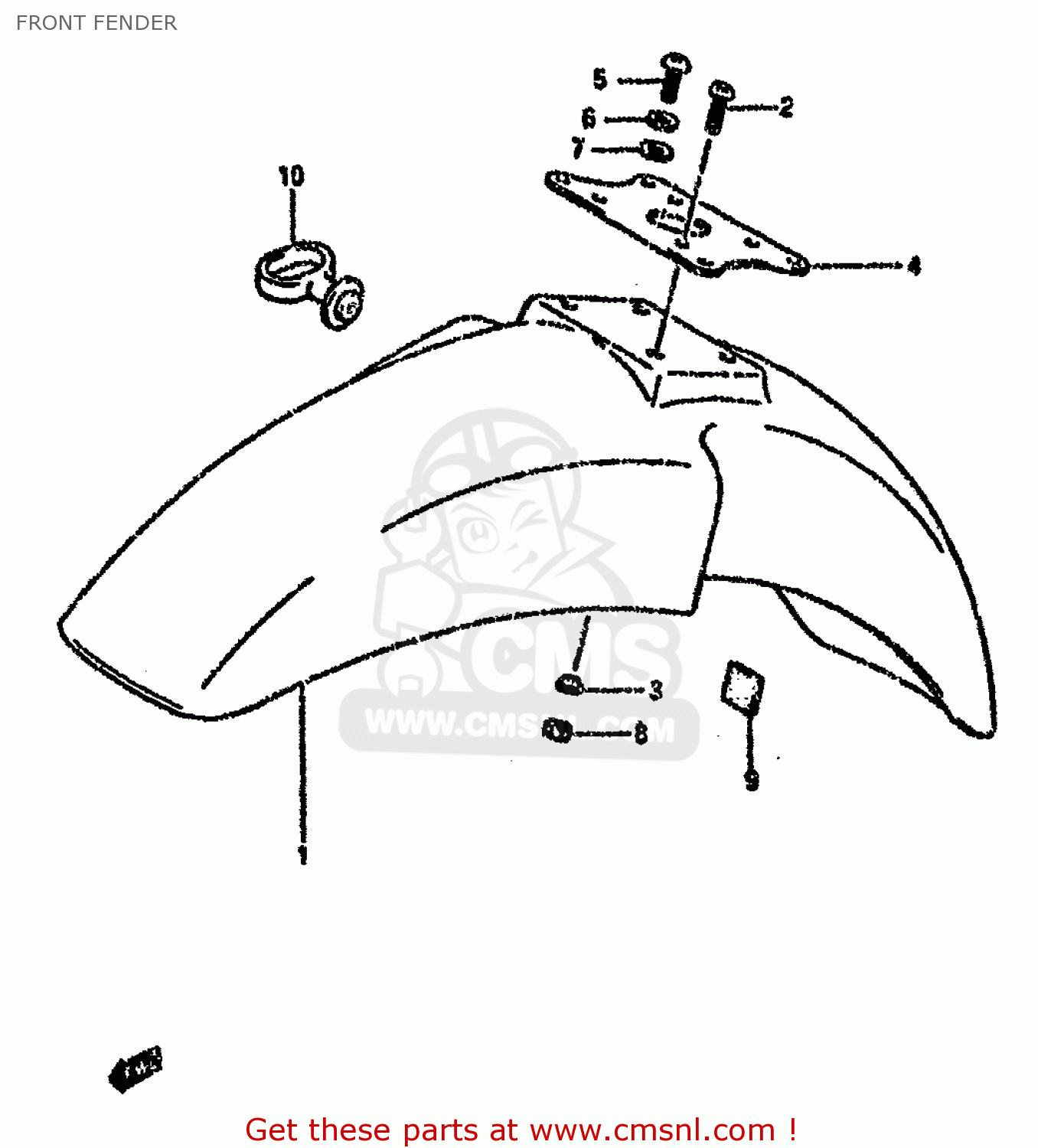

FRONT FENDER

ref

part #

description

quantity

1-1

5311146A0014L
ref: 1-1
MODEL F/H

FENDER, FRONT (WHITE)

€ 79.50

1-2

5311136A0030H
ref: 1-2
MODEL J,FOR 9UV

FENDER, FRONT (WHITE)

€ 79.50

1-3

5311136A0033N
ref: 1-3
MODEL J,FOR 9EK

FENDER, FRONT (BLUE)

€ 80.00

1-4

5311136A0014C
ref: 1-4
MODEL J,FOR 2KN

FENDER, FRONT (RED)

€ 79.50

1-5

5311136A000NE
ref: 1-5
MODEL M,FOR 3UA

FENDER,FRONT (BLUE)

€ 80.00

1-6

5311136A0020G
ref: 1-6
MODEL M,FOR 3HZ

FENDER, FRONT (GRAY)

€ 62.00

1-7

5311146A0030H
ref: 1-7
MODEL J E22,FOR 9UV

FENDER,FRONT (WHITE)

€ 79.50

1-8

5311146A0033N
ref: 1-8
MODEL J E22,FOR 9EK

FENDER,FRONT (BLUE)

€ 80.00

1-9

5311146A0014C
ref: 1-9
MODEL J E22,FOR 2KN

FENDER,FRONT (RED)

€ 79.50

1-10

5311146A000NE
ref: 1-10
MODEL M E22,FOR 3UA

FENDER,FR

€ 80.00

1-11

5311146A0020G
ref: 1-11
MODEL M E22,FOR 3HZ

FENDER,FR

€ 62.00

1-12

5311146A001TU
ref: 1-12
MODEL M E22,FOR AG3

FENDER,FRONT (PURPLE)

€ 79.50

1-13

5311146A00019
ref: 1-13
MODEL M E22,FOR 1ZX

FENDER,FR

€ 78.50

2

0913905025
ref: 2

SCREW(5X14)

€ 2.00

3

0916905008
ref: 3

WASHER

€ 3.00

4

5311436A0113L
ref: 4

BRACE, FRONT FENDER (SILVER)

€ 6.50

5

0913905025
ref: 5

SCREW(5X14)

€ 2.00

6

0832121057
ref: 6

LOCK WASHER

€ 2.00

7

0832221057
ref: 7

WASHER

€ 2.50

8

0831921056
ref: 8

NUT

€ 1.50

9

5343136A00
ref: 9

CUSHION, FENDER SIDE

€ 3.50

10

5862121203A
ref: 10

GUIDE,CABLE

€ 7.50
