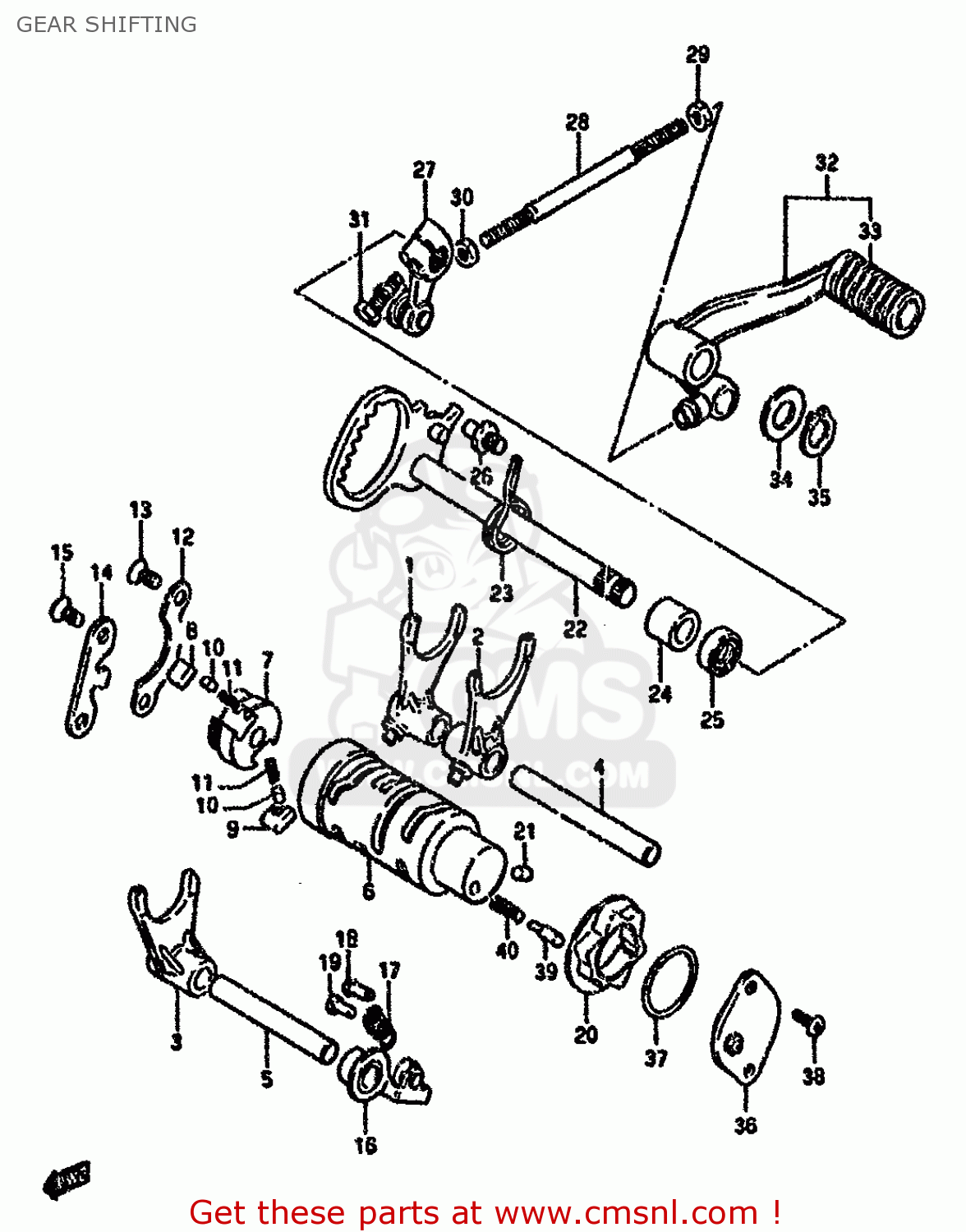

GEAR SHIFTING

ref

part #

description

quantity

1

2521104700
ref: 1

FORK,GEAR SHIFT NO.1

€ 37.00

2

2522104700
ref: 2

FORK, GEAR SHIFT N-2

€ 57.00

3

2523104700
ref: 3

FORK,GEAR SHIFT NO.2

€ 39.50

4

2541114331
ref: 4
-25411-14330

SHAFT,GEAR SHIFT FORK

€ 14.00

5

2542104701
ref: 5

SHAFT,GEAR SHIFT FORK

€ 9.50

6

2531046A00
ref: 6

CAM,GEAR SHIFTING

€ 0.00

7

2532231301
ref: 7

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533104702
ref: 12

LIFTER,GEAR SHIFT POLE

€ 4.00

13

0212206127
ref: 13

SCREW

€ 3.00

14

2534104700
ref: 14

GUIDE,GEAR SHIFT CAM

€ 7.50

15

0212206127
ref: 15

SCREW

€ 3.00

16

2535004701
ref: 16

STOPPER,GEAR SHIFTING CAM

€ 80.00

17

0944307033
ref: 17

SPRING

€ 0.00

18

0922004001
ref: 18
MODEL F

RIVET

€ 1.50

19

0922304001
ref: 19
MODEL H/J/M

RIVET

€ 1.50

20

2538104700
ref: 20

PLATE,GEAR SHIFT CAM STOPPER

€ 13.00

21

0621104063
ref: 21

PIN 4X6

€ 2.00

22

2551046A00
ref: 22

SHAFT,GEAR SHIFTING

€ 0.00

23

0944426019
ref: 23

SPRING

€ 3.50

24

0918012083
ref: 24

SPACER(12X20X15.3)

€ 2.50

25

0928512002
ref: 25

OIL SEAL

€ 7.00

26

2567101000
ref: 26

STOPPER,GEAR SHIFT CAM

€ 3.00

27

2552047020
ref: 27

ARM,GEAR SHIFT LINK

€ 53.50

28

2552527A00
ref: 28

ROD,GEAR SHIFT LINK

€ 13.00

29

0914006011
ref: 29

NUT

€ 1.50

30

0831000067
ref: 30

NUT

€ 2.50

31

0150006207
ref: 31

BOLT

€ 2.00

32

2560046A02
ref: 32
-25600-46A01

LEVER ASSY,GEAR SHIFTING

€ 88.50

33

2565249300
ref: 33

RUBBER,PEDAL

€ 5.50

34

0916012011
ref: 34

WASHER(12.5X20X1)

€ 1.50

35

0833131126
ref: 35

CIRCLIP,12 MM

€ 2.00

36

3772029350
ref: 36

BODY,GEAR SHIFT SWITCH

€ 10.50

37

0928026003
ref: 37

O-RING (D:2.4 ID:26.2)

€ 2.50

38

0211205127
ref: 38

SCREW

€ 2.50

39

0920905011
ref: 39

PIN(5X15.5)

€ 2.00

40

0944004010
ref: 40

SPRING

€ 1.50

all assemblies
