MAGNETO
RG80C 1985 (F) FRANCE GERMANY (E04 E22)

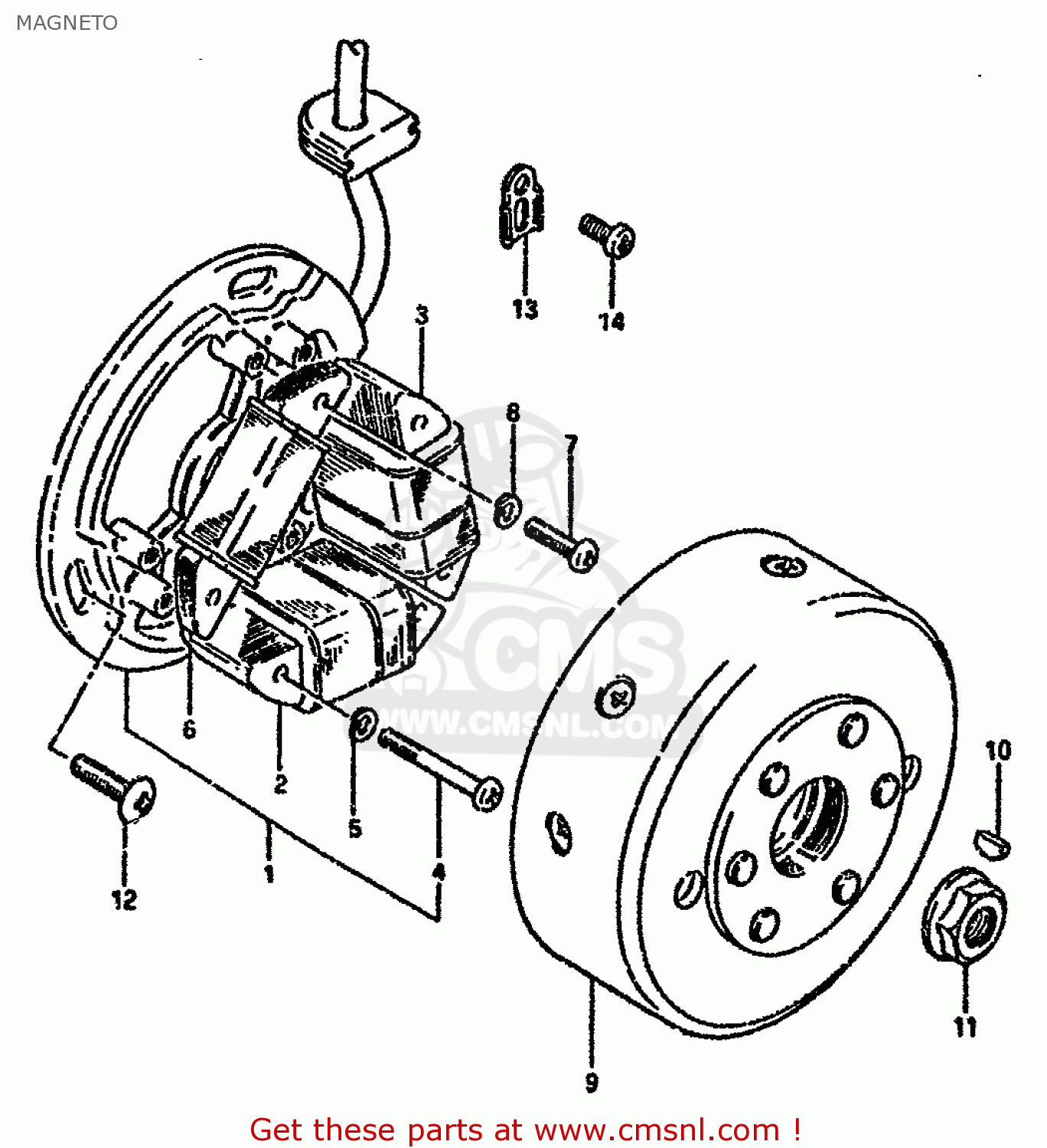

Magneto diagram RG80C 1985 (F) FRANCE GERMANY (E04 E22)
MAGNETO RG80C 1985 (F) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
3210113701
ref: 1
-32101-13700
STATOR ASSY
€ 290.00
2
3212009411
ref: 2
-32120-09420
COIL,LIGHTING (A)
€ 87.50
3
3213009411
ref: 3
-32130-09420
COIL,LIGHTING(B)
€ 77.50
4
0211204353
ref: 4
SCREW
€ 2.00
5
0832101043
ref: 5
WASHER,LOCK
€ 2.00
6
3214013700
ref: 6
COIL PRIMARY
€ 76.50
7
0211204203
ref: 7
SCREW
€ 1.00
8
0832101043
ref: 8
WASHER,LOCK
€ 2.00
9
3210213700
ref: 9
ROTOR
€ 0.00
10
0834131039
ref: 10
KEY
€ 2.00
11
0831610107
ref: 11
NUT
€ 2.00
12
0214205127
ref: 12
SCREW
€ 1.50
13
3149745000
ref: 13
CLAMP,GENERATOR LEAD WIRE
€ 1.50
14
0211205087
ref: 14
SCREW
€ 2.00
