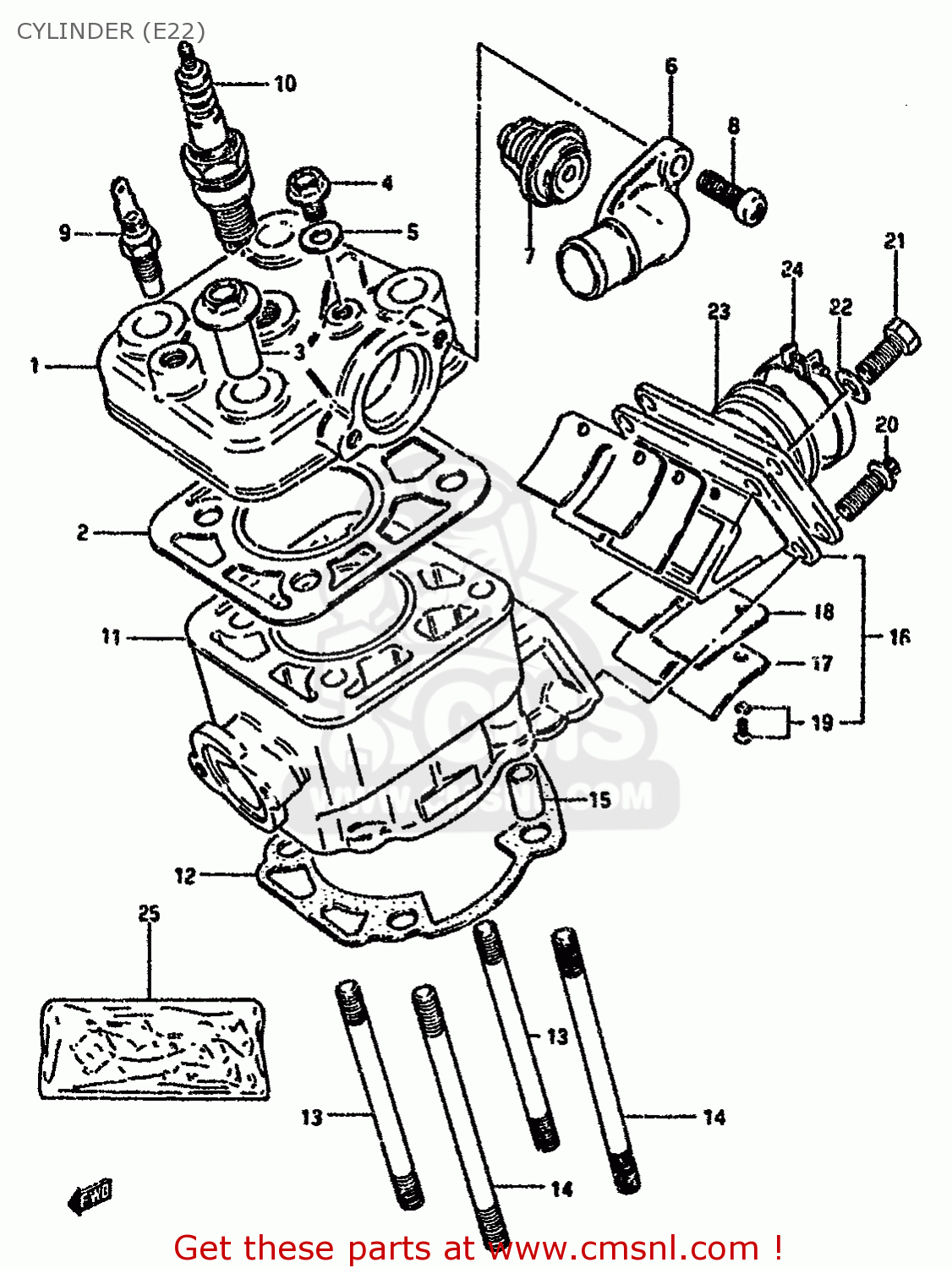

CYLINDER (E22)

ref

part #

description

quantity

1

1111146A10
ref: 1

HEAD,CYLINDER

€ 0.00

2

1114113731
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 20.50

3

0915908066
ref: 3

NUT

€ 5.50

4

0936006007
ref: 4

UNION

€ 3.00

5

0916806004
ref: 5

GASKET(6.2X11X1).2 (NAS)

€ 1.50

6

1766146A00
ref: 6

COVER,THERMOSTAT

€ 59.50

7

1767004700
ref: 7

THERMOSTAT,WATER

€ 31.00

8

0211206207
ref: 8

SCREW

€ 2.00

9

3485005A10
ref: 9

GAUGE ASSY,WATER TEMP

€ 104.00

10-1

0948200139
ref: 10-1

PLUG,SPARK(BP7ES)

€ 4.00

10-2

0948200140
ref: 10-2

SPARK PLUG W22EP

€ 3.00

11

1121046A10
ref: 11

CYLINDER

€ 298.00

12

1124113721
ref: 12

GASKET,CYLINDER (NAS)

€ 8.50

13

0910808156
ref: 13

STUD BOLT (L:100)

€ 4.50

14

0910808159
ref: 14

STUD BOLT (L:110)

€ 0.00

15

0421111189
ref: 15

PIN

€ 2.00

16

1315013721
ref: 16

VALVE ASSY,REED

€ 77.50

17

1315213720
ref: 17

STOPPER,REED VALVE

€ 0.00

18

1315313720
ref: 18

VALVE,REED

€ 8.00

19

1315419011
ref: 19

SCREW,REED VALVE

€ 1.50

20

0913906034
ref: 20

SCREW(6X20)

€ 2.50

21

0150006203
ref: 21

BOLT

€ 2.00

22

0832221064
ref: 22

WASHER

€ 2.00

23

1311013722
ref: 23

PIPE,INTAKE

€ 36.00

24

0940238303
ref: 24

CLAMP

€ 3.00

25

1140013854
ref: 25
OPT

GASKET SET

€ 63.00
