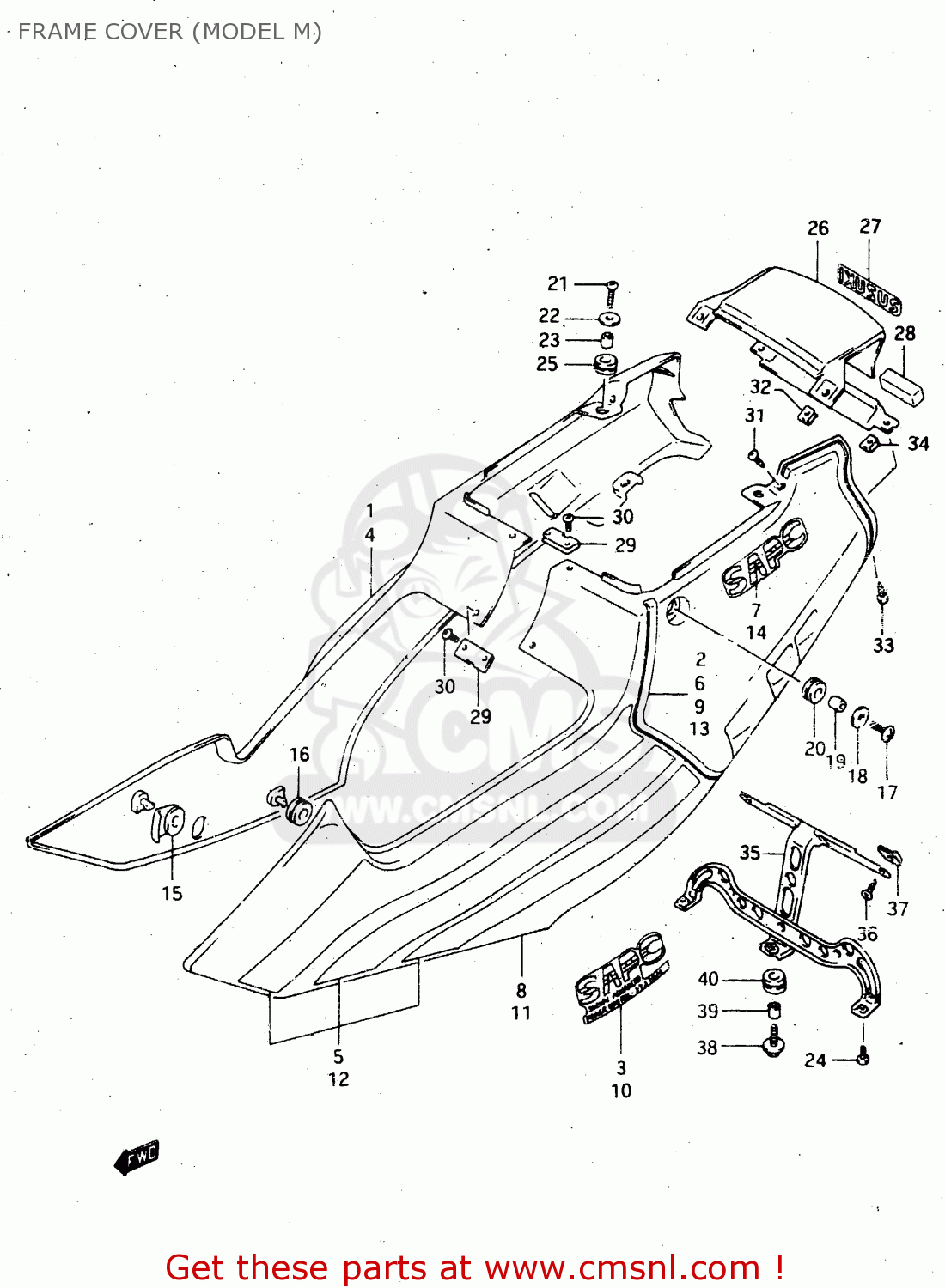

FRAME COVER (MODEL M)

ref

part #

description

quantity

1

4711022D11C67
ref: 1
FOR 33J

COVER, FRAME RH

€ 412.00

2

6813522D200FP
ref: 2
FOR C67

TAPE, FRAME COVER RH (SILVER)

€ 35.50

3

6813122D103WC
ref: 3
FOR C67

EMBLEM, FRAME COVER

€ 8.50

4

4711022D200JW
ref: 4
FOR 3SH

COVER, FRAME RH (WHITE)

€ 325.50

5

6813022D00C21
ref: 5
FOR 0JW

TAPE SET, FRAME COVER RH

€ 75.00

6

6813522D100NE
ref: 6
FOR 0JW

TAPE, FRAME COVER RH (BLUE)

€ 34.50

7

6813122D003RZ
ref: 7
FOR 0JW

EMBLEM,FRAME COVER

€ 14.00

8

4721022D11C67
ref: 8
FOR 33J

COVER, FRAME LH

€ 412.00

9

6814522D200FP
ref: 9
FOR C67

TAPE, FRAME COVER LH (SILVER)

€ 30.50

10

6813122D103WC
ref: 10
FOR C67

EMBLEM, FRAME COVER

€ 8.50

11

4721022D200JW
ref: 11
FOR 3SH

COVER, FRAME LH (WHITE)

€ 319.00

12

6814022D00C21
ref: 12
FOR 0JW

TAPE SET,FRAME COVER,L

€ 75.00

13

6814522D100NE
ref: 13
FOR 0JW

TAPE, FRAME COVER LH (BLUE)

€ 29.50

14

6813122D003RZ
ref: 14
FOR 0JW

EMBLEM,FRAME COVER

€ 14.00

15

4716412C01
ref: 15

CUSHION,FRAME COVER FR

€ 6.50

16

0932008028
ref: 16

CUSHION

€ 2.50

17

0913906050
ref: 17

SCREW(6X20)

€ 5.00

18

0916006054
ref: 18

WASHER(6.5X22X1.6)

€ 2.00

19

0918006027
ref: 19

SPACER (6.3X9.1X6.7)

€ 3.00

20

9443326B00
ref: 20

CUSHION

€ 4.00

21

0913906063
ref: 21

SCREW(6X20)

€ 4.00

22

0916006063
ref: 22

WASHER (6.5X22X1.6)

€ 2.00

23

0918006027
ref: 23

SPACER (6.3X9.1X6.7)

€ 3.00

24

0913606062
ref: 24

SCREW (6X16)

€ 2.50

25

9443326B00
ref: 25

CUSHION

€ 4.00

26

4731022D0033J
ref: 26

COVER, FRAME CENTER (BLACK)

€ 64.00

26

4731022D000JW
ref: 26

COVER, FRAME CENTER (WHITE)

€ 51.00

27

68166313000FP
ref: 27
FOR 33J

EMBLEM

€ 4.00

27

68166313000NE
ref: 27
FOR 0JW

EMBLEM

€ 7.00

28

4719122D00
ref: 28

RUBBER

€ 3.00

29

4716812C00
ref: 29

NUT,FRAME COVER CTR

€ 14.00

30

0913905020
ref: 30

SCREW

€ 2.00

31

0324115125
ref: 31

SCREW, BRACKET

€ 2.50

32

0914805019
ref: 32

NUT

€ 2.00

33

0314204125
ref: 33

SCREW

€ 1.50

34

0914804024
ref: 34

NUT

€ 2.00

35

4741022D00
ref: 35

BRACKET, TAIL LAMP REAR

€ 29.50

36

0354104125
ref: 36

SCREW

€ 1.50

37

0914805019
ref: 37

NUT

€ 2.00

38

0911606010
ref: 38

BOLT(6X20)

€ 2.00

39

0918006044
ref: 39

SPACER (6.1X8X9.5)

€ 2.50

40

0932008048
ref: 40

CUSHION

€ 3.00
