STEERING STEM

RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

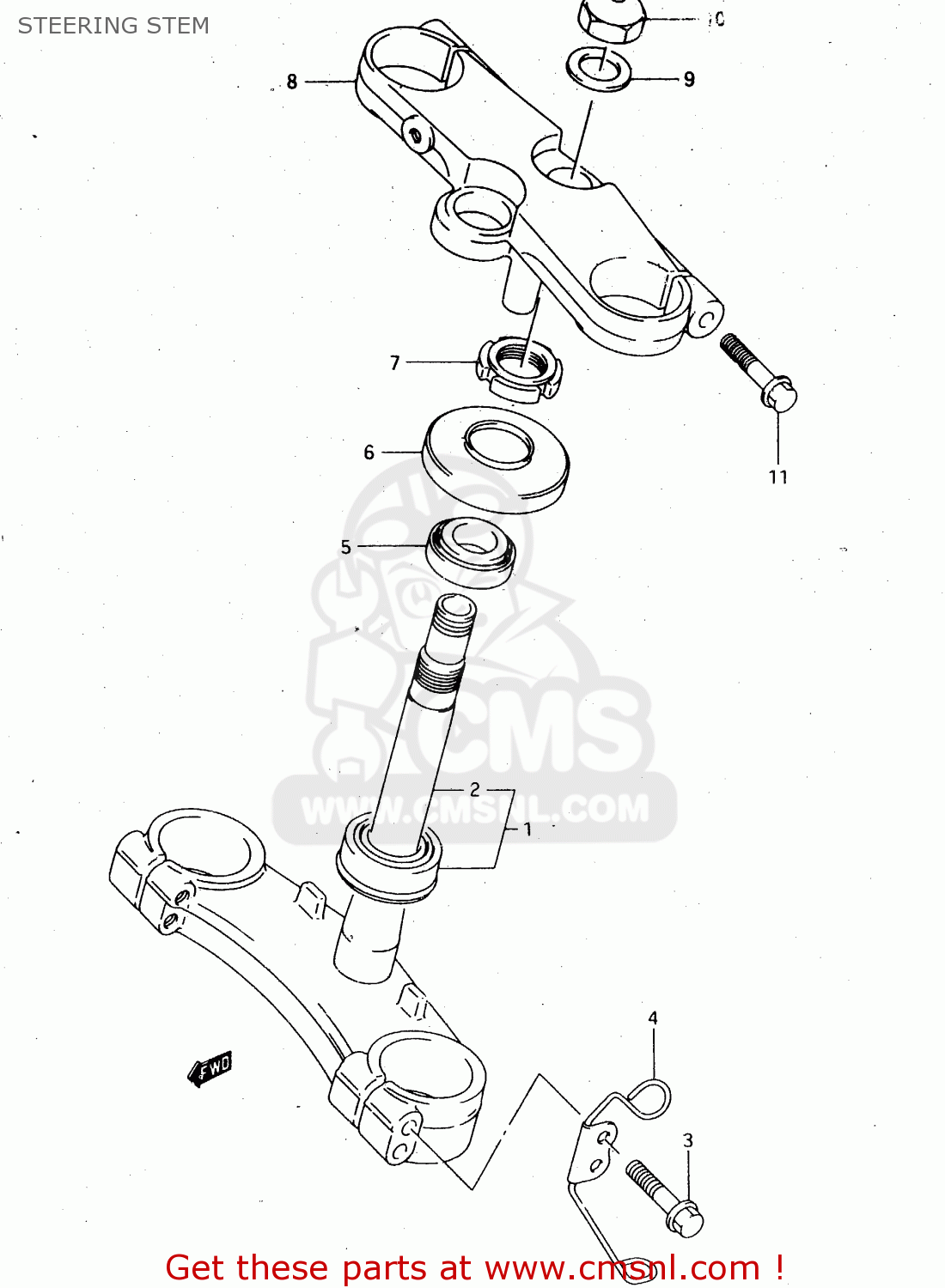

Steering stem diagram RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

5141022D00
ref: 1
MODEL M/N

STEM,STEERING

€ 719.50

5141022D10
ref: 1
MODEL P/R/T

STEM,STEERING

€ 719.50

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

0155008403
ref: 3

BOLT

€ 3.50

3493822D30
ref: 4

CLAMP, METER CABLE

€ 7.00

0926525008
ref: 5

TAPER,ROLLER BEARING

€ 48.50

0928534009
ref: 6

SEAL,OIL(34X69X11.9)

€ 16.50

5163128000
ref: 7

NUT,STEERING STEM(25X44X10)

€ 12.50

5131122D00
ref: 8

HEAD,STEERING

€ 299.00

5135624B01
ref: 9

WASHER(22.5X32X1.6)

€ 3.00

5135322D00
ref: 10
MODEL M/N

NUT

€ 30.00

5135328A10
ref: 10
MODEL P/R/T

NUT

€ 30.00

0155008403
ref: 11

BOLT

€ 3.50
