FRONT MASTER CYLINDER

RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

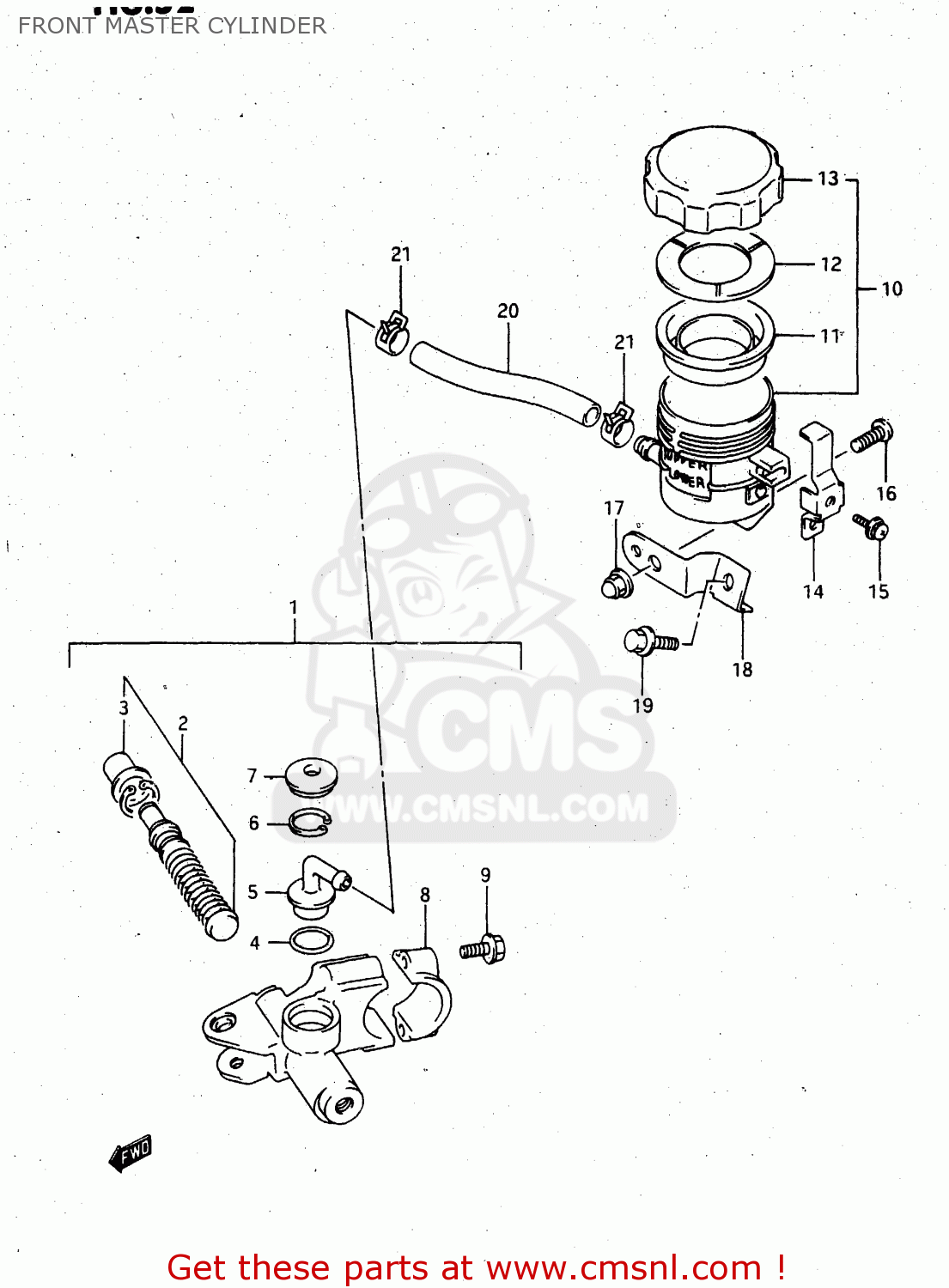

Front master cylinder diagram RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

FRONT MASTER CYLINDER RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
FRONT MASTER CYLINDER RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
FRONT MASTER CYLINDER RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
5960032C00
ref: 1
MODEL M/N
CYLINDER ASSEMBLY,FRONT MASTER
€ 263.00
1
5960032C01
ref: 1
MODEL P/R/T
CYLINDER ASSY,FR MASTER
5960032C01
€ 263.00
2
5960045860
ref: 2
PISTON & CUP SET
5960045860
€ 44.00
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
6968634200
ref: 4
O RING
6968634200
€ 3.50
5
5967217C00
ref: 5
CONNECTOR
5967217C00
€ 8.00
6
6967400B20
ref: 6
CIRCLIP
6967400B20
€ 3.00
7
5967317C00
ref: 7
COVER,DUST
5967317C00
€ 7.00
8
5967136500
ref: 8
HOLDER
5967136500
€ 10.00
9
5967517C00
ref: 9
MODEL M/N
BOLT
5967517C00
€ 3.00
9
5967519C00
ref: 9
MODEL P/R/T
BOLT(6X25)
5967519C00
€ 3.00
10
5974007D00
ref: 10
TANK ASSY,RESERVOIR
5974007D00
€ 67.00
11
5966718441
ref: 11
DIAPHRAGM
5966718441
€ 8.50
12
5966818441
ref: 12
PLATE,DIAPHRAGM
5966818441
€ 3.50
13
5966907D00
ref: 13
CAP
5966907D00
€ 16.50
14
5974317C00
ref: 14
PLATE,RESERVOIR TANK CAP
5974317C00
€ 8.00
15
0211274128
ref: 15
MODEL M/N/P
SCREW
€ 2.50
15
0211274123
ref: 15
MODEL R/T
SCREW
€ 2.50
16
0214206164
ref: 16
MODEL M/N/P
SCREW
0214206164
€ 2.50
16
0214206163
ref: 16
MODEL R/T
SCREW
0214206163
€ 2.50
17
0831321064
ref: 17
MODEL M/N/P
NUT 6MM
€ 2.00
17
0831320063
ref: 17
MODEL R/T
NUT
0831320063
€ 2.00
18
5975122D00
ref: 18
BRACKET,FR RESERVOIR TANK
5975122D00
€ 6.50
19
0151706125
ref: 19
MODEL M/N/P
BOLT 6X12
0151706125
€ 2.50
19
0155006123
ref: 19
MODEL R/T
BOLT
0155006123
€ 2.50
20
5973132C00
ref: 20
HOSE,FR RESERVOIR TANK
5973132C00
€ 18.00
21
5973517C00
ref: 21
CLAMP,RESERVOIR TANK FR
5973517C00
€ 4.00
