FUEL TANK (MODEL P/R/T)

RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

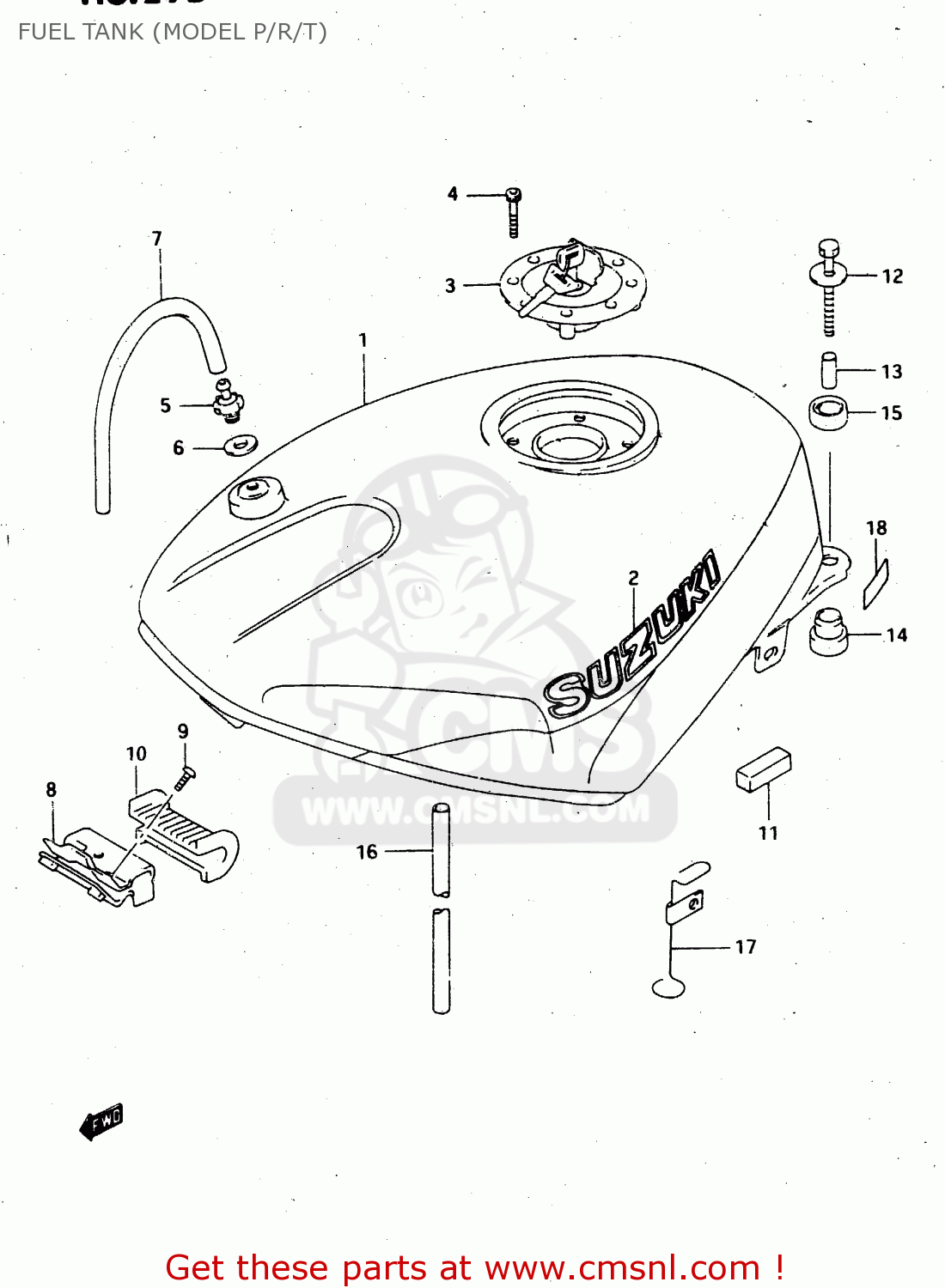

Fuel tank (model p/r/t) diagram RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

FUEL TANK (MODEL P/R/T) RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
FUEL TANK (MODEL P/R/T) RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
FUEL TANK (MODEL P/R/T) RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
4410023D201LE
ref: 1
MODEL P
TANK ASSY,FUEL
€ 580.50
1
4410023D401LE
ref: 1
MODEL P E22
TANK ASSY,FUEL
€ 580.50
1
4410023D401LE
ref: 1
MODEL R/T FOR M18
TANK ASSY,FUEL
€ 580.50
1
4410023D2033J
ref: 1
MODEL P
TANK ASSY, FUEL (BLACK)
€ 549.50
1
4410023D4033J
ref: 1
MODEL P E22
TANK ASSY, FUEL (BLACK)
€ 549.50
1
4410023D402AX
ref: 1
MODEL R/T FOR 3CG
TANK ASSY, FUEL (BLACK)
€ 835.50
2
6811112C000JW
ref: 2
FOR 1LE
EMBLEM,FUEL TANK
6811112C000JW
€ 21.00
2
6811112C000SF
ref: 2
FOR 33J
EMBLEM,FUEL TANK
6811112C000SF
€ 15.50
2
6811112C0017U
ref: 2
FOR 2AX
EMBLEM,FUEL TANK
6811112C0017U
€ 15.50
3
4420101852
ref: 3
CAP SET,FUEL TANK
4420101852
€ 166.50
4
0910605017
ref: 4
BOLT(5X20)
0910605017
€ 3.00
5
4424006B10
ref: 5
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
6
0916812012
ref: 6
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
7
0935250823600
ref: 7
L:600->240
HOSE(5X8.2X600)
0935250823600
€ 13.00
8
4452132C00
ref: 8
BRACKET,FUEL TANK
4452132C00
€ 10.50
9
0214206167
ref: 9
MODEL P
SCREW
0214206167
€ 2.00
9
0214206163
ref: 9
MODEL R/T
SCREW
0214206163
€ 2.50
10
4451132C00
ref: 10
MODEL P/R
CUSHION,FUEL TANK,FRONT
€ 15.50
10
4451132C01
ref: 10
MODEL T
CUSHION,FUEL TANK FR
4451132C01
€ 15.50
11
4454520A00
ref: 11
CUSHION,FUEL TANK SIDE
4454520A00
€ 5.50
12
0155006307
ref: 12
MODEL P
BOLT
0155006307
€ 2.00
12
0155006303
ref: 12
MODEL R/T
BOLT
0155006303
€ 2.50
13
0918006072
ref: 13
SPACER
0918006072
€ 2.00
14
0932010020
ref: 14
CUSHION
0932010020
€ 4.00
15
0932014013
ref: 15
CUSHION
0932014013
€ 3.00
16
093525082300B
ref: 16
L:2000->800
HOSE(5X8.2X2000)
093525082300B
€ 13.00
17
4448022D00
ref: 17
GUIDE, DRAIN HOSE
€ 10.00
18
9446108C00
ref: 18
PROTECTOR,FRAME COVER NO.2
9446108C00
€ 3.00
