GEAR SHIFTING

RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

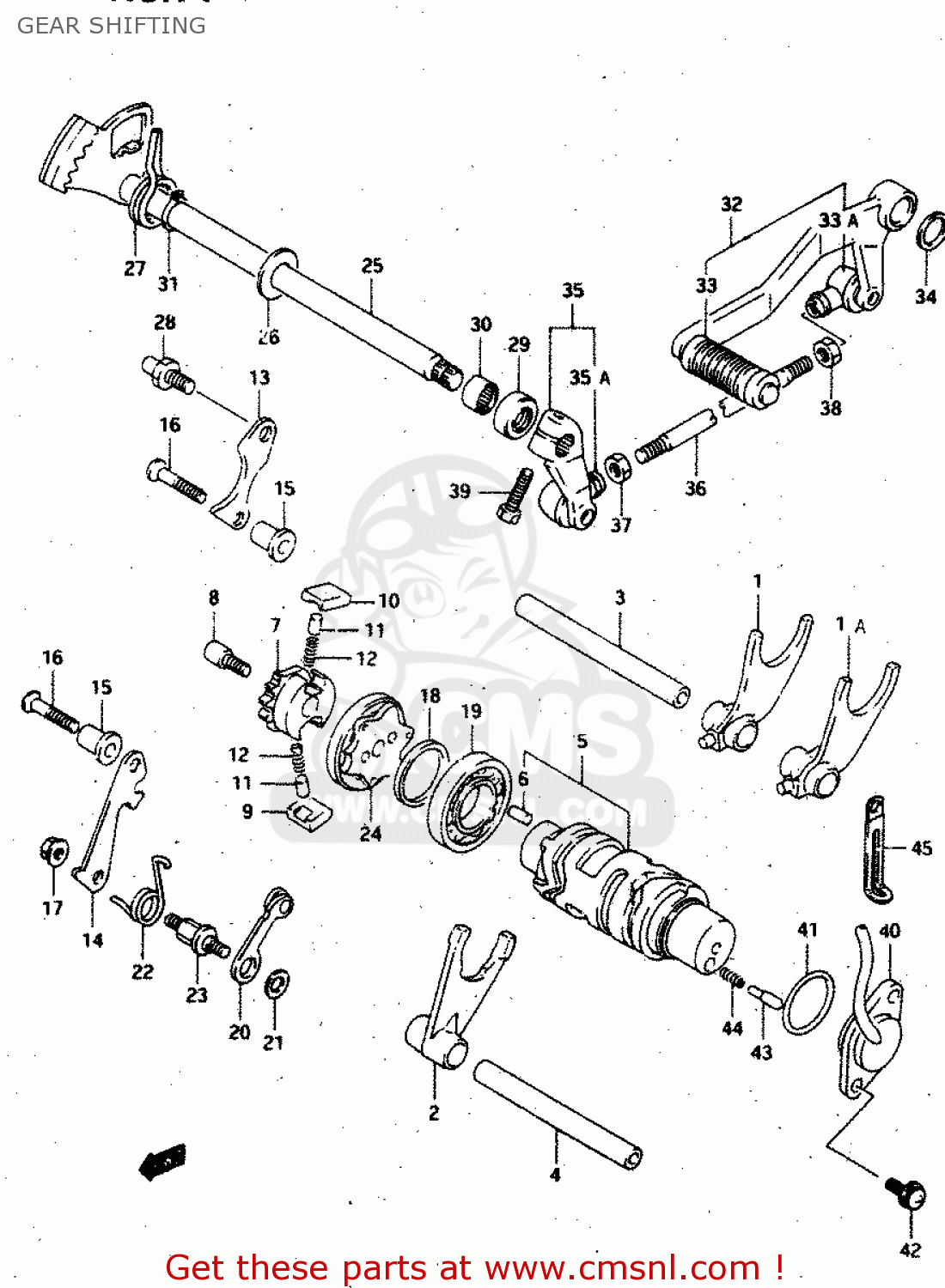

Gear shifting diagram RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

GEAR SHIFTING RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
GEAR SHIFTING RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
GEAR SHIFTING RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2521113A00
ref: 1
FORK,GEAR SHIFT NO.1
2521113A00
€ 85.00
1A
2521122D00
ref: 1A
FORK,GEAR SHIFT NO.2
2521122D00
€ 69.50
2
2523122D30
ref: 2
FORK,GEAR SHIFT NO.3
2523122D30
€ 80.50
3
2541116701
ref: 3
MODEL M/N
SHAFT,GEAR SHIFT FORK(L:109)
2541116701
€ 11.50
3
2541105200
ref: 3
MODEL P
SHAFT,GEAR SHIFT FORK
€ 11.50
3
2541105201
ref: 3
MODEL R/T
SHAFT,GEAR SHIFT FORK
€ 11.50
4
2541114310
ref: 4
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
2541114310
€ 14.50
4
2541114311
ref: 4
MODEL R/T
SHAFT,GEAR SHIFT FORK
2541114311
€ 14.50
5
2531012C00
ref: 5
CAM,GEAR SHIFT
2531012C00
€ 146.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2531212C00
ref: 8
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
0926105003
€ 1.50
12
0944004003
ref: 12
SPRING
0944004003
€ 1.50
13
2533112C00
ref: 13
LIFTER,GEAR SHIFT POLE
2533112C00
€ 3.50
14
2534112C00
ref: 14
GUIDE,GEAR SHIFT CAM
2534112C00
€ 8.50
15
0918006202
ref: 15
SPACER(6.1X10X16)
0918006202
€ 4.00
16
0212206308
ref: 16
MODEL M/N/P
SCREW
€ 2.00
16
0212206303
ref: 16
MODEL R/T
SCREW
0212206303
€ 2.00
17
0915906017
ref: 17
MODEL M/N/P
NUT
0915906017
€ 2.50
17
0831610063
ref: 17
MODEL R/T
NUT
0831610063
€ 2.50
18
0916025059
ref: 18
WASHER(25X32X3)
0916025059
€ 5.00
19
0926225002
ref: 19
MODEL M/N/P
BEARING
0926225002
€ 24.00
19
0926225006
ref: 19
MODEL R/T
BEARING(25X47X8)
0926225006
€ 24.00
20
2535012C00
ref: 20
STOPPER,SHIFT CAM
2535012C00
€ 10.00
21
0821106141
ref: 21
WASHER
0821106141
€ 2.50
22
2535512C00
ref: 22
SPRING, STOPPE
€ 3.50
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
25
2551022D01
ref: 25
SHAFT,GEAR SHIFT
2551022D01
€ 76.00
26
0821114221
ref: 26
WASHER,THRUST
€ 3.50
27
0944420001
ref: 27
SPRING
0944420001
€ 5.00
28
2567136A00
ref: 28
STOPPER,GEAR SHIFT ARM
2567136A00
€ 3.00
29
0928314006
ref: 29
SEAL,OIL(14X22X6)
0928314006
€ 6.50
30
0926314027
ref: 30
<-09263-14028
BEARING(14X20X12)
0926314027
€ 11.00
31
0833131146
ref: 31
CIRCLIP
0833131146
€ 2.00
32
2560022D00
ref: 32
MODEL M
LEVER ASSY, GEAR SHIFT
2560022D00
€ 131.00
32
2560006C00
ref: 32
MODEL N/P/R/T
LEVER ASSY,GEAR SHIFT
2560006C00
€ 131.00
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
33A
2552647000
ref: 33A
COVER,DUST
2552647000
€ 3.50
34
0916418005
ref: 34
WASHER
0916418005
€ 3.00
35
2552032C00
ref: 35
ARM,GEAR SHIFT LINK
2552032C00
€ 46.00
35A
2552647000
ref: 35A
COVER,DUST
2552647000
€ 3.50
36
2552522D01
ref: 36
ROD,GEAR SHIFT LINK
2552522D01
€ 52.50
37
0831011068
ref: 37
MODEL M/N/P
NUT
0831011068
€ 2.50
37
0831000063
ref: 37
MODEL R/T
NUT 6MM
0831000063
€ 2.00
38
0914006011
ref: 38
NUT
0914006011
€ 1.50
39
0110706207
ref: 39
MODEL M/N/P
BOLT
0110706207
€ 2.00
39
0150006203
ref: 39
MODEL R/T
BOLT
0150006203
€ 2.00
40
3772012C01
ref: 40
BASE ASSY,NEUTRAL SW
3772012C01
€ 42.00
40
3773022D00
ref: 40
MODEL N/P E22
BASE,SHIFT TER
€ 94.00
41
0928026003
ref: 41
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
42
0211275165
ref: 42
MODEL M/N/P
SCREW
0211275165
€ 2.50
42
0211275163
ref: 42
MODEL R/T
SCREW
0211275163
€ 2.50
42
0211205164
ref: 42
MODEL N/P E22
SCREW
0211205164
€ 2.00
43
0920905011
ref: 43
PIN(5X15.5)
0920905011
€ 2.00
44
0944004010
ref: 44
SPRING
0944004010
€ 1.50
45
0940406402
ref: 45
CLAMP
€ 2.50
45
0940406429
ref: 45
CLAMP(L:45)
€ 2.50
