Buy Suzuki RGV Parts Online


HANDLE BAR

RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

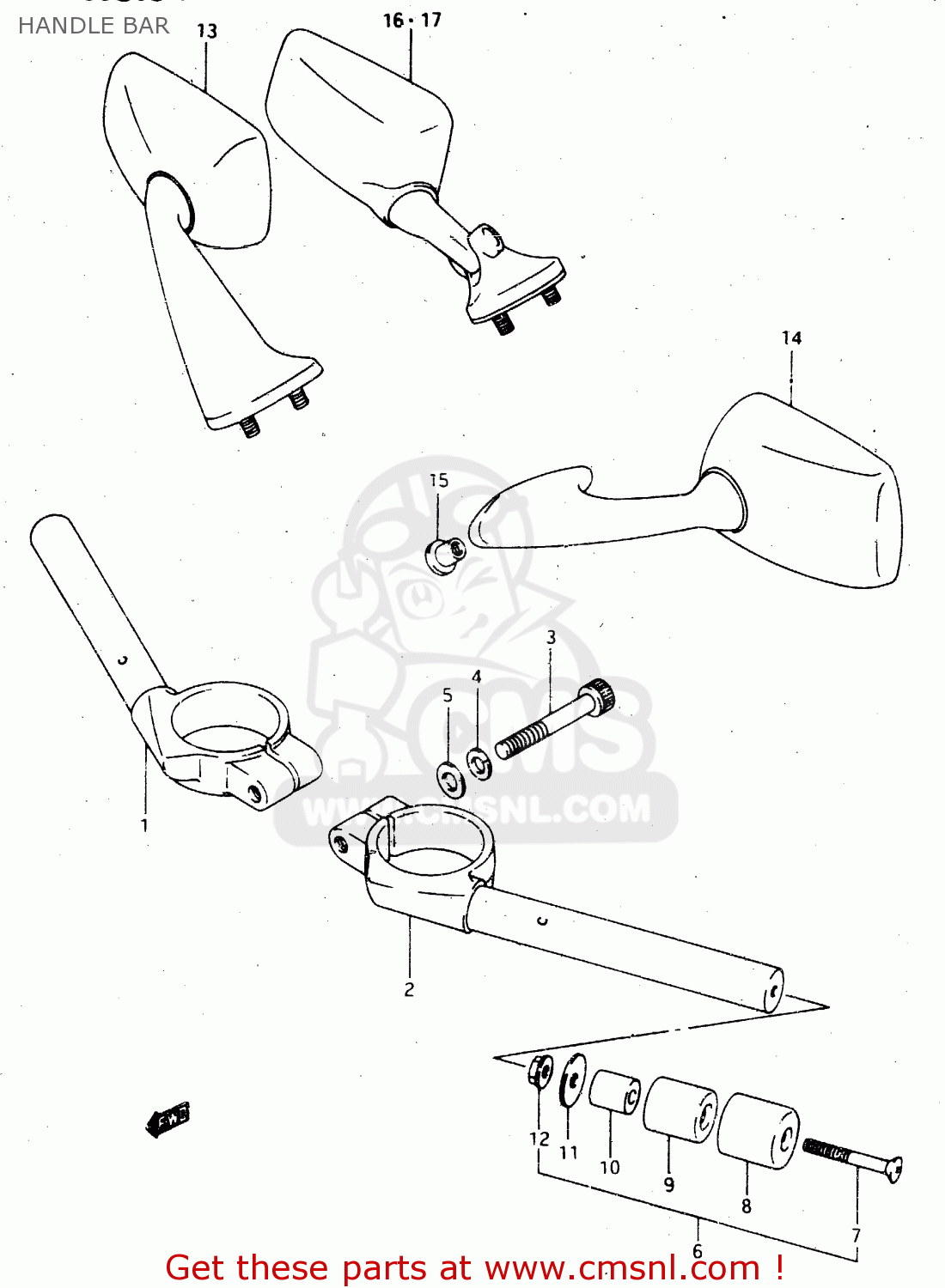

Handle bar diagram RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)

HANDLE BAR RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
HANDLE BAR RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
HANDLE BAR RGV250 1993 (P) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
5611022D01
ref: 1
HANDLEBAR,R
5611022D01
€ 152.00
2
5615022D01
ref: 2
HANDLEBAR,L
5615022D01
€ 139.00
3
0713008457
ref: 3
MODEL M/N/P/R
BOLT
0713008457
€ 3.00
3
0713008453
ref: 3
MODEL T
BOLT
0713008453
€ 3.00
4
0832101087
ref: 4
MODEL M/N/P
WASHER,LOCK
0832101087
€ 2.00
4
0832101083
ref: 4
MODEL R/T
LOCK WASHER
0832101083
€ 2.50
5
0832201087
ref: 5
MODEL M/N/P
WASHER
0832201087
€ 2.00
5
0832201083
ref: 5
MODEL R/T
WASHER
0832201083
€ 1.50
6
5620011810
ref: 6
MODEL M/N
BALANCER SET, HANDLE BAR
€ 98.00
6
5620036810
ref: 6
MODEL N, F.NO.JA22A-
BALANCER SET,HANDLEBAR
5620036810
€ 88.00
6
5620012810
ref: 6
MODEL P, F.NO.VJ22A-
BALANCER SET,HANDLEBAR
5620012810
€ 88.00
6
5620012811
ref: 6
MODEL T
BALANCER SET,HANDLEBAR
5620012811
€ 88.00
7
0212206657
ref: 7
MODEL M/N
SCREW
0212206657
€ 2.00
7
0213206655
ref: 7
MODEL N, F.NO.JA22A-
SCREW 6X65
0213206655
€ 2.50
7
0212206653
ref: 7
MODEL P, F.NO.VJ22A-
SCREW
0212206653
€ 2.50
8
5627412C00
ref: 8
MODEL M/N
CAP,BALANCER
5627412C00
€ 83.00
8
5627405350
ref: 8
MODEL N, F.NO.JA22A-
CAP,BALANCER
5627405350
€ 223.50
8
5627431300
ref: 8
CAP,BALANCER
5627431300
€ 223.50
9
5627149420
ref: 9
BALANCER,HANDLE
5627149420
€ 19.50
10
5627244500
ref: 10
EXPANDER,HANDLE BALANCER
5627244500
€ 3.00
11
5627534400
ref: 11
MODEL M/N/P/R
SPACER,BALANCER
5627534400
€ 2.50
11
5627534401
ref: 11
MODEL T
SPACER,BALANCER
5627534401
€ 2.50
12
0915906024
ref: 12
NUT
0915906024
€ 2.00
13
5650022D00
ref: 13
E1
MIRROR ASSY R.
5650022D00
€ 105.00
14
5660022D00
ref: 14
E1
MIRROR, L.
5660022D00
€ 81.50
15
5661912C00
ref: 15
NUT,RR VIEW MIRROR
5661912C00
€ 8.00
16
5650022D11
ref: 16
E2, E4, E21, E22, E2
MIRROR ASSY,RR VIEW,R
5650022D11
€ 247.50
17
5660022D11
ref: 17
E2, E4, E21, E22, E2
MIRROR ASSY,RR VIEW,L
5660022D11
€ 218.00
