FRONT FORK
RL250 EXACTA TRIALS 1975 (M) USA (E03)

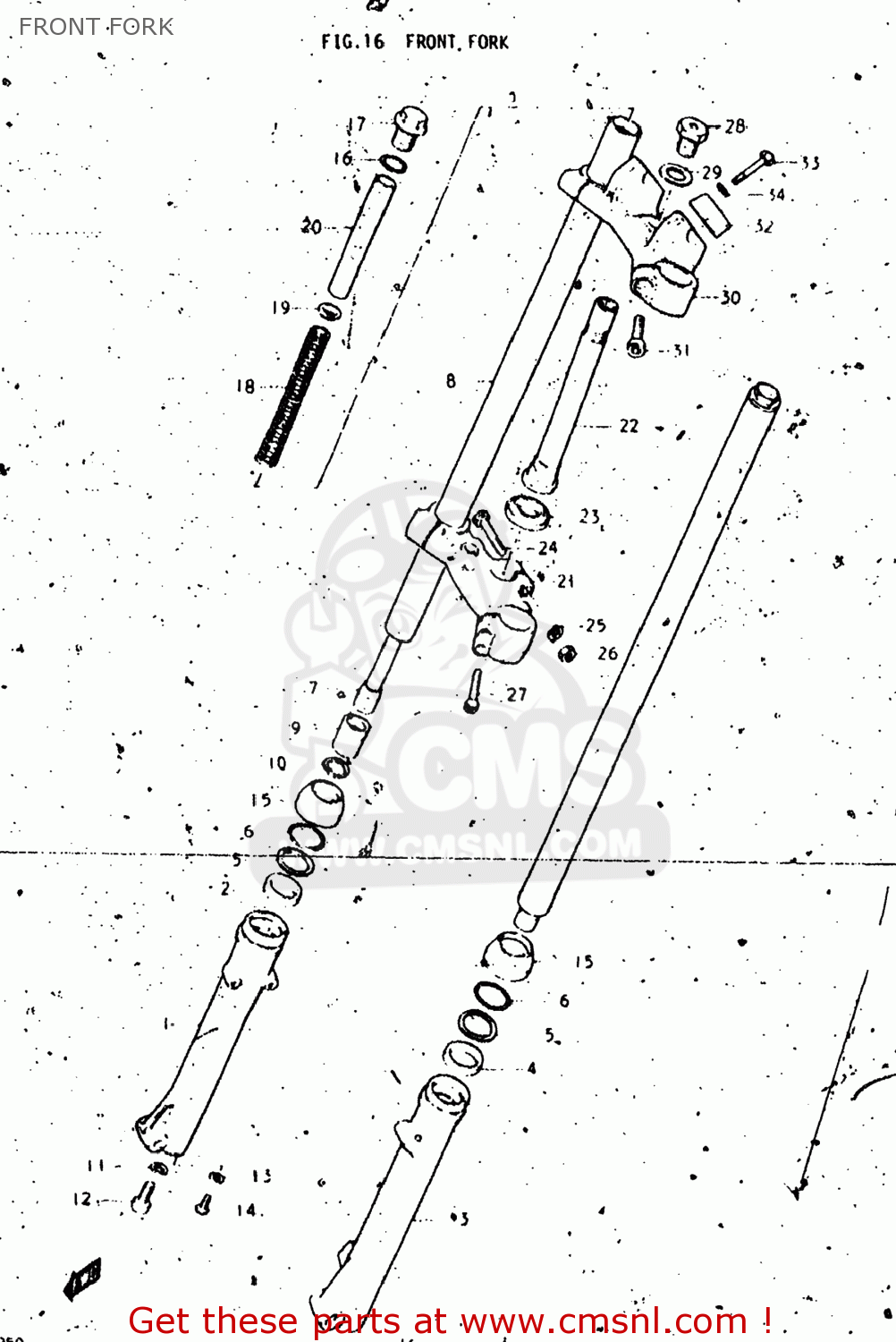

Front fork diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)
FRONT FORK RL250 EXACTA TRIALS 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110038010
ref: 0
DAMPER SET
€ 0.00
1-1
5113038010
ref: 1-1
TUBE,OUTER,RIGHT
€ 0.00
1-2
5113038011
ref: 1-2
TUBE,OUTER,RIGHT
€ 0.00
2
5115334010
ref: 2
SEAL,OIL
€ 15.00
3-1
5114038010
ref: 3-1
TUBE,OUTER,LEFT
€ 91.50
3-2
5114038011
ref: 3-2
TUBE,OUTER,LEFT
€ 91.50
4
5115334010
ref: 4
SEAL,OIL
€ 15.00
5
5115832110
ref: 5
RING,FORK BACK UP
€ 3.00
6
5115632110
ref: 6
CIRCLIP,FORK OIL SEAL
€ 6.00
7
5114638010
ref: 7
CYLINDER,FRONT FORK
€ 0.00
8
5111138010
ref: 8
TUBE,FORK,INNER
€ 45.00
9
5111238010
ref: 9
PISTON,FORK INNER TUBE
€ 0.00
10
5111838010
ref: 10
RING
€ 0.00
11
5114816510
ref: 11
GASKET (NAS)
€ 2.00
12
5114716510
ref: 12
BOLT,FORK CYLINDER(10X25)
€ 3.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
€ 3.00
14
0211104087
ref: 14
02112-04087
SCREW
€ 1.50
15
5117332110
ref: 15
SEAL,DUST
€ 13.00
16
5111716310
ref: 16
O RING
€ 4.50
17
5135138010
ref: 17
51351-40210
BOLT,FORK
€ 14.00
18
5117138010
ref: 18
SPRING,FRONT FORK
€ 12.50
19
5117238010
ref: 19
GUIDE,FRONT FORK SPRING C
€ 9.50
20
5117638010
ref: 20
COLLAR,SPRING
€ 0.00
21
5141138010
ref: 21
STEM,STEERING
€ 85.50
22
5140128310
ref: 22
STEM,STEERING
€ 37.00
23
5162133001
ref: 23
RACE,STEERING OUTER LWR
€ 10.00
24
0112210608
ref: 24
01500-1060A
BOLT
€ 3.50
25
0832121108
ref: 25
08321-01107
LOCK WASHER
€ 2.00
26
0831211108
ref: 26
08310-00107
NUT
€ 2.50
27
5145628310
ref: 27
BOLT
€ 0.00
28
5135128310
ref: 28
CAP
€ 6.50
29
5135628310
ref: 29
WASHER,STEM HEAD
€ 2.50
30
5131138010
ref: 30
HEAD,STEERING STEM
€ 0.00
31
0910610001
ref: 31
BOLT
€ 0.00
32
5621127110
ref: 32
HOLDER,HANDLEBAR
€ 12.50
33
0122108357
ref: 33
01204-08357
Bolt
€ 3.50
34
0832121088
ref: 34
08321-01087
LOCK WASHER
€ 2.00
