RL250 EXACTA TRIALS 1975 (M) USA (E03)

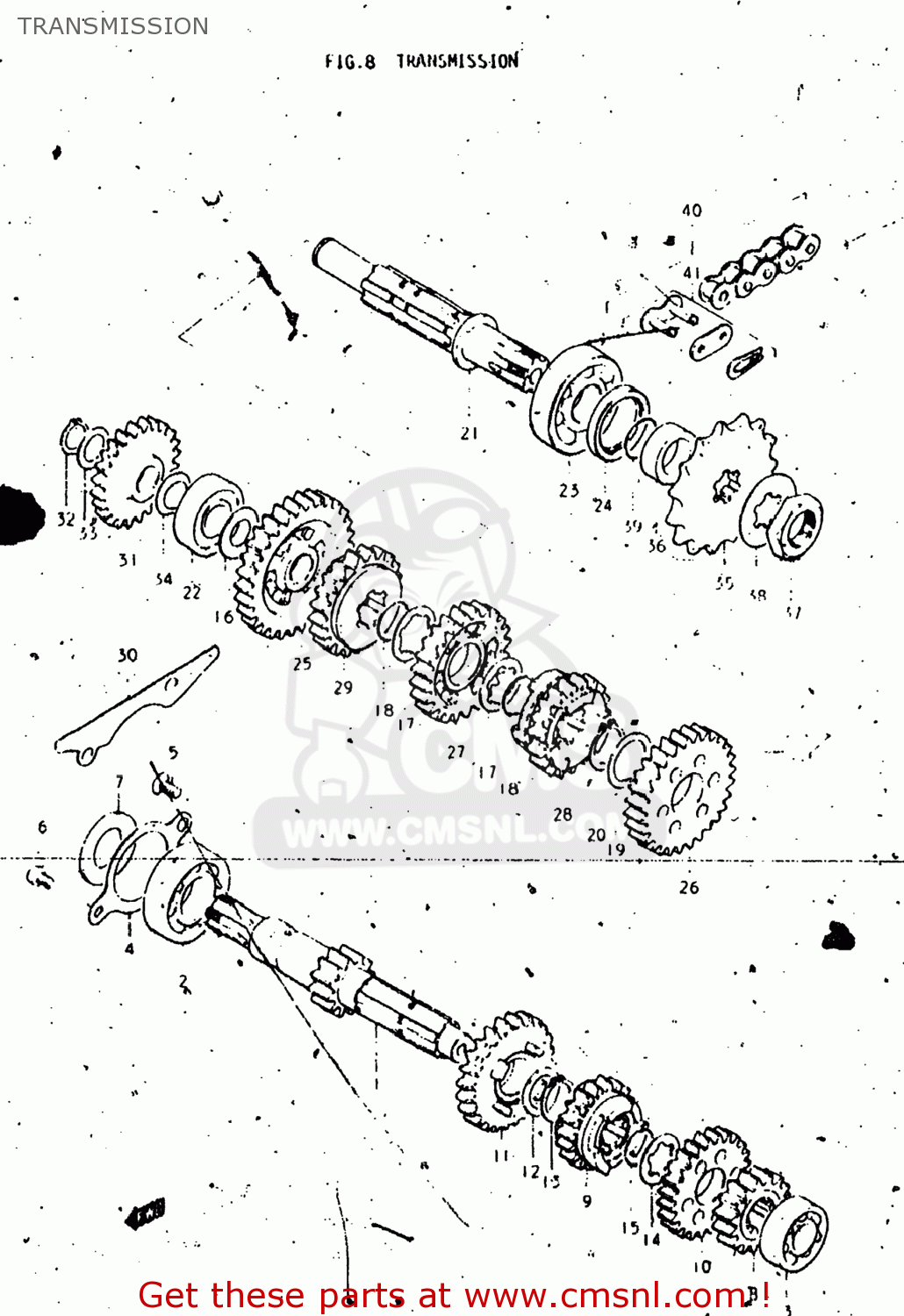

Transmission diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)
TRANSMISSION RL250 EXACTA TRIALS 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412130000
ref: 1
SHAFT,COUNTER
€ 70.50
2
0814362050
ref: 2
08143-62057
BEARING
€ 24.50
3
0811362030
ref: 3
09262-17023
BEARING
€ 14.00
4
2474130100
ref: 4
PLATE,COUNTERSHAFT BEARING
€ 6.50
5
0212206128
ref: 5
02122-06127
SCREW
€ 3.00
6
0211206108
ref: 6
02112-06107
SCREW
€ 1.50
7
0916025009
ref: 7
WASHER(25X41X3)
€ 5.00
8
2422130000
ref: 8
GEAR,SECOND DRIVE
€ 29.00
9
2425138000
ref: 9
GEAR,FIFTH DRIVE
€ 30.00
10
2425130400
ref: 10
GEAR,FIFTH DRIVE
€ 19.50
11
2425138000
ref: 11
GEAR,FIFTH DRIVE
€ 30.00
12
0821122281
ref: 12
09181-22139
SHIM
€ 4.00
13
0938022001
ref: 13
08331-3122A
CIRCLIP
€ 2.00
14
0916722007
ref: 14
WASHER,LOCK
€ 3.50
15
0938022003
ref: 15
CIRCLIP
€ 13.50
16-1
0821117301
ref: 16-1
09181-17223
WASHER,THRUST
€ 3.00
16-2
0916017001
ref: 16-2
09181-17223
WASHER
€ 3.00
17
0916725004
ref: 17
WASHER
€ 5.50
18
0938025006
ref: 18
RING,SNAP
€ 2.00
19-1
0916025013
ref: 19-1
WASHER
€ 2.50
19-2
0821125321
ref: 19-2
WASHER
€ 3.00
20
0938025003
ref: 20
RING,SNAP
€ 3.00
21
2413130000
ref: 21
24131-30001
SHAFT,DRIVE
€ 31.50
22
0814362030
ref: 22
08143-62037
BEARING
€ 18.50
23
0926222006
ref: 23
09262-22025
BEARING
€ 63.50
24
0928332003
ref: 24
SEAL,OIL(32X42X6)
€ 3.50
25
2431038000
ref: 25
GEAR,FIRST DRIVEN
€ 0.00
26
2432130000
ref: 26
GEAR,SECOND DRIVEN
€ 47.00
27
2433138000
ref: 27
GEAR,THIRD DRIVEN
€ 27.50
28
2435130101
ref: 28
GEAR,5TH DRIVEN
€ 87.50
29
2435138000
ref: 29
GEAR,FIFTH DRIVEN
€ 33.00
30
2487130000
ref: 30
PLATE,OIL RESERVOIR
€ 4.00
31
2626030001
ref: 31
26260-30002
GEAR,KICK STARTER IDLE
€ 46.00
32
0938017001
ref: 32
CIRCLIP
€ 2.00
33
0821117251
ref: 33
WASHER
€ 2.00
34
0916417002
ref: 34
WASHER
€ 0.00
35-1
2751138700
ref: 35-1
SPROCKET,ENGINE
€ 19.50
35-2
2751138720
ref: 35-2
SPROCKET,ENGINE
€ 20.00
35-3
2751138000
ref: 35-3
SPROCKET,ENGINE
€ 20.50
36
0918022007
ref: 36
SPACER(22X32X11.5)
€ 10.00
37
0914022003
ref: 37
NUT
€ 10.00
38
0916722005
ref: 38
WASHER,LOCK
€ 2.50
39
0928022003
ref: 39
O RING(D:1.7,ID:22)
€ 2.50
40-1
2760028310
ref: 40-1
CHAIN ASSEMBLY,DRIVE
€ 0.00
40-2
2760028311
ref: 40-2
27600-40220
CHAIN ASSEMBLY,DRIVE
€ 0.00
41
2762028310
ref: 41
JOINT ASSEMBLY,CHAIN
€ 4.00
