REAR FENDER
RL250 EXACTA TRIALS 1975 (M) USA (E03)

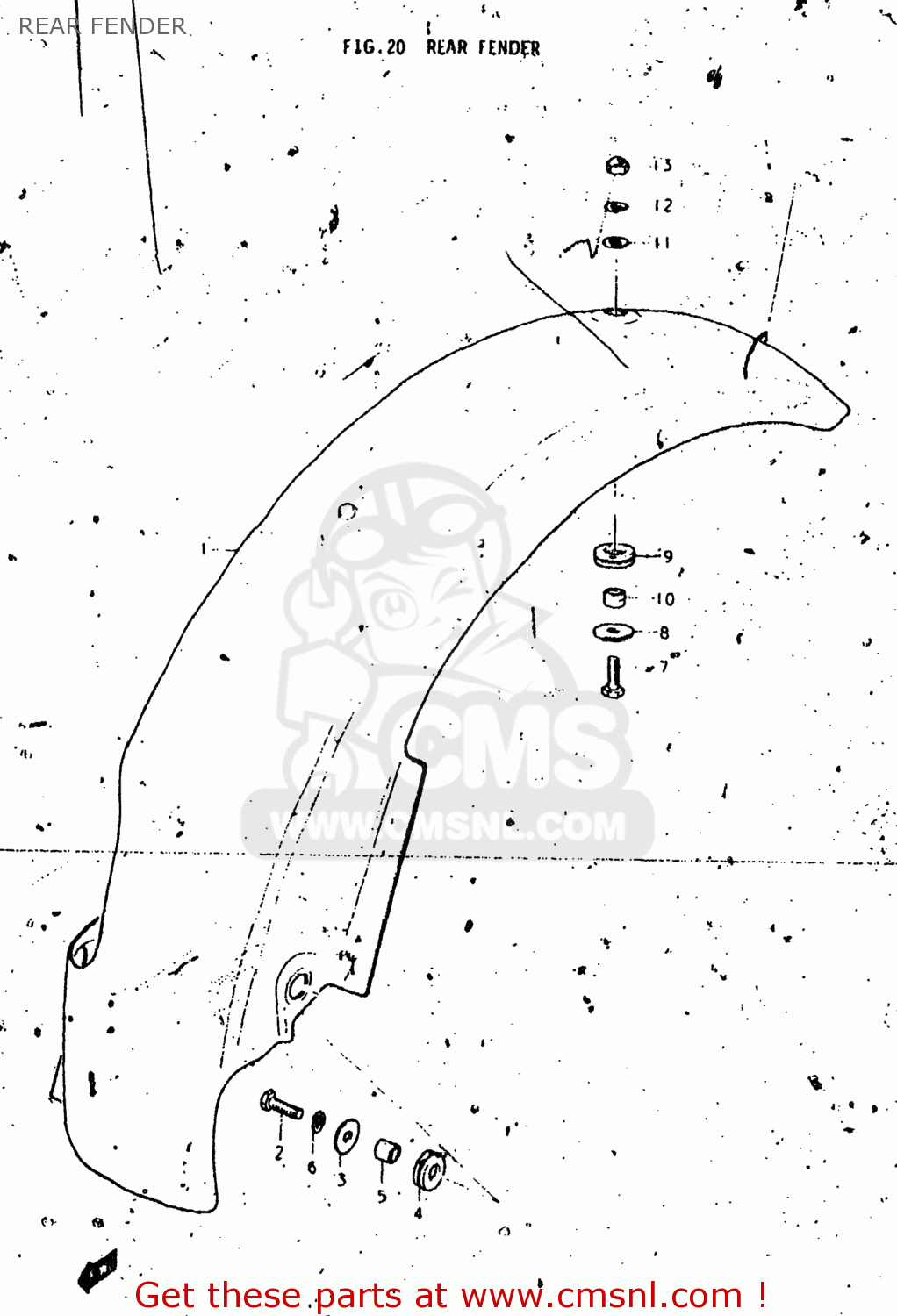

Rear fender diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)
REAR FENDER RL250 EXACTA TRIALS 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311138000714
ref: 1
FENDER,REAR
€ 74.50
2
0111206208
ref: 2
01500-06207
BOLT
€ 2.00
3
0916006027
ref: 3
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
4
0932008007
ref: 4
09320-08021
CUSHION
€ 4.00
5
0918006038
ref: 5
SPACER(6.1X9X7.5)
€ 2.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
0111206208
ref: 7
01500-06207
BOLT
€ 2.00
8
0916006004
ref: 8
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
9
0932009002
ref: 9
CUSHION
€ 4.00
10
0918006002
ref: 10
09180-06283
SPACER
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0831311067
ref: 13
08313-10067
NUT
€ 2.00
