FRONT WHEEL
RL250 EXACTA TRIALS 1975 (M) USA (E03)

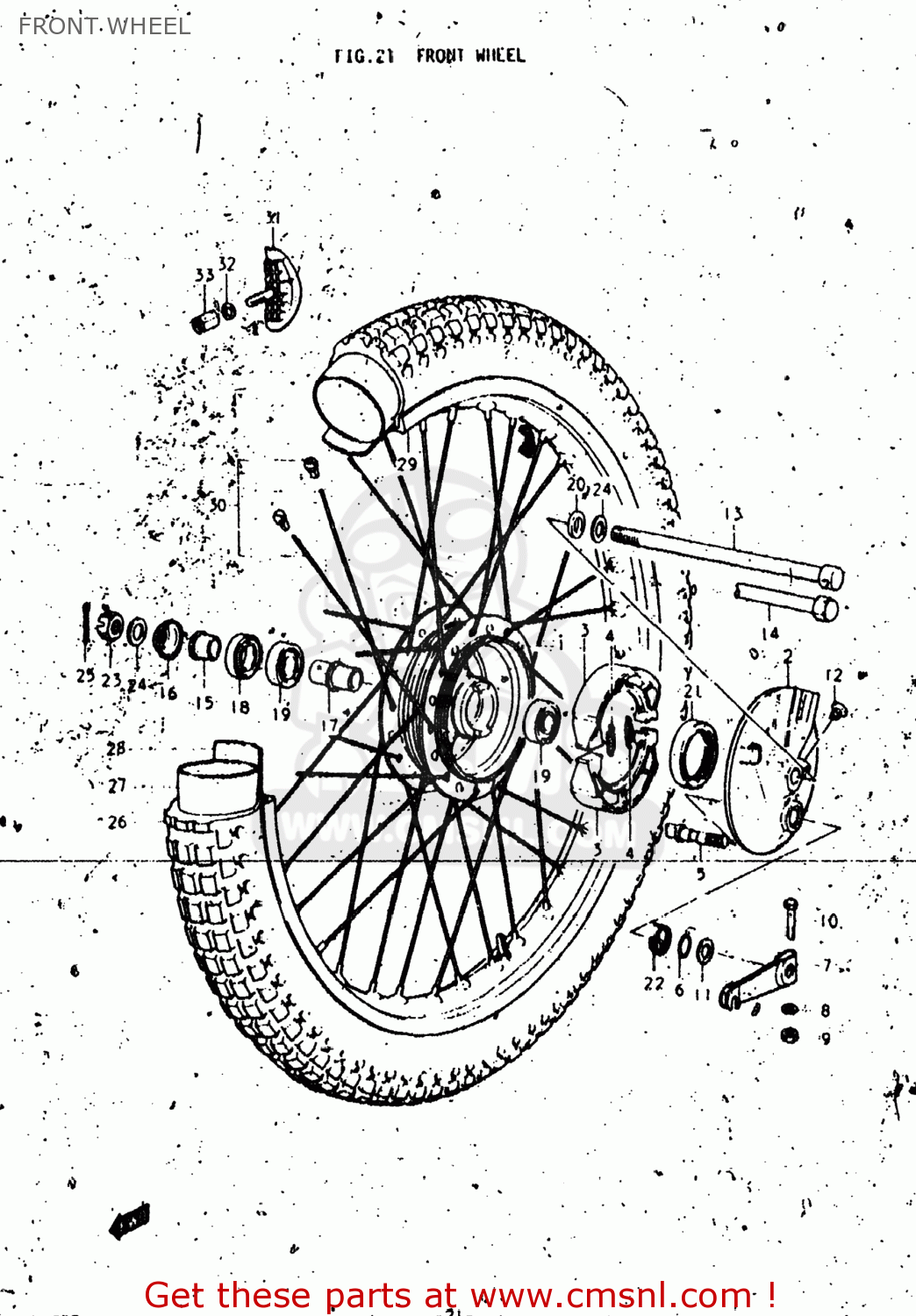

Front wheel diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)
FRONT WHEEL RL250 EXACTA TRIALS 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5410028840
ref: 0-1
HUB,FRONT
€ 0.00
0-2
5410028841
ref: 0-2
HUB,FRONT
€ 0.00
0-2
5410028841
ref: 0-2
HUB,FRONT
€ 0.00
1-1
5411038000
ref: 1-1
HUB,FRONT
€ 90.50
1-2
5411028301
ref: 1-2
54110-28303
HUB,FRONT
€ 90.50
2
5421038000
ref: 2
54210-38001
PANEL,FRONT HUB
€ 38.50
3
5441001005
ref: 3
54400-35860
SHOE,BRAKE
€ 39.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5-1
5444128001
ref: 5-1
CAM,FRONT BRAKE
€ 19.50
5-2
5444101002
ref: 5-2
CAM,FR BRAKE
€ 19.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
5445138000
ref: 7
LEVER,FRONT BRAKE CAM
€ 34.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0831111068
ref: 9
08310-00067
NUT
€ 2.50
10
0910006050
ref: 10
09100-06150
BOLT
€ 1.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
€ 1.50
12
0925011003
ref: 12
CAP(OD:17)
€ 2.50
13
5471138000
ref: 13
54711-16504
AXLE,FRONT
€ 29.50
14
5471116502
ref: 14
54711-16504
AXLE,FRONT
€ 29.50
15
0918012057
ref: 15
SPACER
€ 2.50
16
5489228001
ref: 16
DUST SEAL,FRONT HUB DRUM
€ 2.50
17-1
0918012059
ref: 17-1
SPACER
€ 4.50
17-2
0918012041
ref: 17-2
09180-12144
SPACER (12.6X19X52)
€ 4.50
18
0928418002
ref: 18
OIL SEAL
€ 4.50
19
0926212002
ref: 19
08133-62017
BEARING
€ 15.00
20
0918012058
ref: 20
SPACER
€ 2.00
21
0928543001
ref: 21
09283-43004
OIL SEAL (43X58X7)
€ 10.00
22
0944827005
ref: 22
SPRING
€ 1.50
23-1
0831441128
ref: 23-1
08314-4012A
NUT, REAR AXLE
€ 2.50
23-2
0831431128
ref: 23-2
08314-3112A
NUT 12MM
€ 2.00
24
0832211128
ref: 24
08322-01127
WASHER
€ 2.00
25
0411130308
ref: 25
04111-3030A
COTTER PIN
€ 1.50
26
5510028410
ref: 26
55100-28600
TIRE,FRONT
€ 0.00
27
5520016510
ref: 27
TUBE
€ 32.50
28
5526116510
ref: 28
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
29-1
5531128321
ref: 29-1
RIM,FRONT WHEEL
€ 83.00
29-2
5531128322
ref: 29-2
RIM,FRONT WHEEL
€ 83.00
30
5530028850
ref: 30
55320-28700
SPOKE SET,FRONT
€ 48.50
31
6527030000
ref: 31
65270-43D00
STOPPER,BEAD
€ 30.50
32
0832221088
ref: 32
08322-01087
WASHER
€ 2.00
33
0915908016
ref: 33
NUT
€ 2.00
