GEAR SHIFTING
RL250 EXACTA TRIALS 1975 (M) USA (E03)

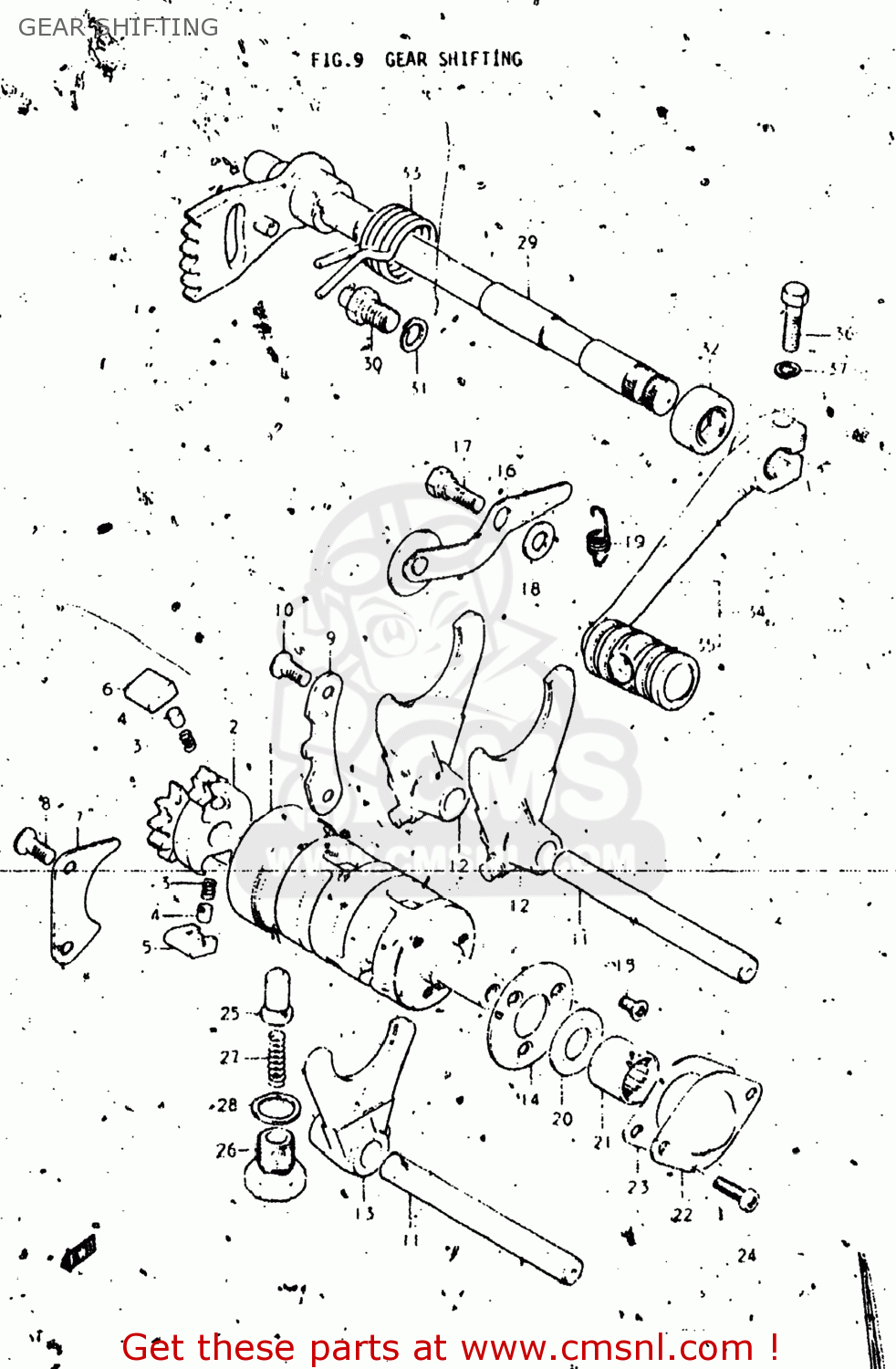

Gear shifting diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)
GEAR SHIFTING RL250 EXACTA TRIALS 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2531038000
ref: 1
CAM,GEAR SHIFT
€ 0.00
2
2532211000
ref: 2
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
3
0944004003
ref: 3
SPRING
€ 1.50
4
0926105003
ref: 4
PIN(5X8)
€ 1.50
5
2532311000
ref: 5
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
6
2532411000
ref: 6
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
7
2533130000
ref: 7
25331-30001
LIFTER,GEAR SHIFT PAWL
€ 3.50
8
0212106108
ref: 8
02122-0610A
SCREW
€ 1.50
9
2534111000
ref: 9
GUIDE,GEAR SHIFTING CABLE
€ 6.00
10
0212106108
ref: 10
02122-0610A
SCREW
€ 1.50
11
2541130000
ref: 11
25411-14311
SHAFT,GEAR SHIFT FORK
€ 14.50
12
2521130001
ref: 12
FORK,GEAR SHIFT NO.1
€ 57.50
13
2523130000
ref: 13
FORK,GEAR SHIFT NO.3
€ 61.00
14
2538120000
ref: 14
25381-20001
PLATE,GEAR SHIFT CAM
€ 9.50
14
2538120000
ref: 14
25381-20001
PLATE,GEAR SHIFT CAM
€ 9.50
15
0212104127
ref: 15
02122-0412A
SCREW
€ 2.00
16
2535030000
ref: 16
25350-30001
STOPPER,GEAR SHIFTING
€ 10.00
17
0911106003
ref: 17
BOLT(6X16.1)
€ 1.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0944310007
ref: 19
SPRING
€ 2.00
20
0821112253
ref: 20
WASHER
€ 1.50
21
0926312009
ref: 21
ROLLER BEARING (12X18X1
€ 12.50
22
1145116500
ref: 22
CAP,CAM PIVOT
€ 10.50
23
1145216500
ref: 23
GASKET (MCA)
€ 2.00
24
0211105087
ref: 24
02112-05087
SCREW
€ 2.00
25
2535130000
ref: 25
25351-30010
STOPPER,GEAR SHIFTING
€ 6.50
26
2535430000
ref: 26
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
27
0944006014
ref: 27
SPRING
€ 1.50
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
29
2551030000
ref: 29
25510-30X00
SHAFT,GEAR SHIFT
€ 85.00
30
2567101000
ref: 30
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
0928512002
ref: 32
09285-12006
OIL SEAL
€ 7.00
33-1
0944426004
ref: 33-1
SPRING
€ 4.00
33-2
0944426012
ref: 33-2
09444-26013
SPRING
€ 3.50
34
2560038001
ref: 34
LEVER ASSEMBLY,GEAR SHIFTING
€ 22.50
35
2565238000
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 2.50
36
0111206208
ref: 36
01500-06207
BOLT
€ 2.00
37
0832121068
ref: 37
08321-01067
LOCK WASHER
€ 2.50
