MAGNETO

RL250 EXACTA TRIALS 1975 (M) USA (E03)

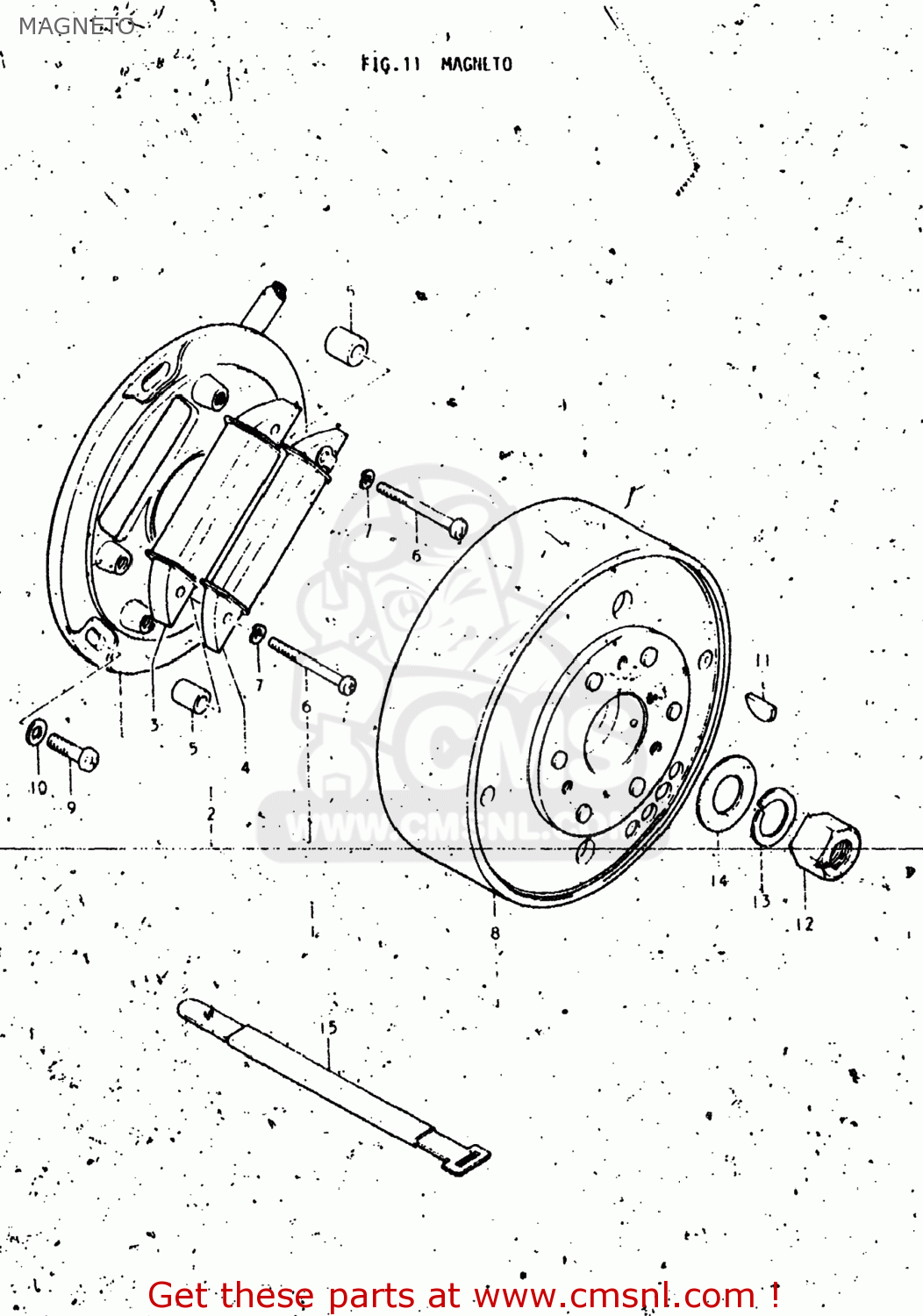

Magneto diagram RL250 EXACTA TRIALS 1975 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210038600
ref: 1

MAGNETO ASSEMBLY

€ 0.00

3210138600
ref: 2

STATOR ASSEMBLY

€ 102.50

3214032020
ref: 3
32140-32021

COIL

€ 224.50

3215032020
ref: 4

COIL,PULSER

€ 210.50

3216032020
ref: 5

COIL ASSEMBLY,PICK-UP

€ 2.00

0211105357
ref: 6
02112-05357

SCREW 5X35

€ 1.50

0832121058
ref: 7
08321-0105A

LOCK WASHER

€ 2.00

3210238600
ref: 8

ROTOR ASSEMBLY

€ 91.00

0211205168
ref: 9
02112-05167

SCREW

€ 2.50

0832221058
ref: 10
08322-01057

WASHER

€ 2.50

0834131049
ref: 11
09420-04008

KEY 4MM

€ 3.50

0914014011
ref: 12

NUT

€ 3.50

0832121148
ref: 13
08321-0114A

LOCK WASHER

€ 2.00

0916014015
ref: 14

WASHER(14X27X3)

€ 4.00

0940714301
ref: 15
09407-18301

CLAMP

€ 6.00
