CARBURETOR (MODEL R/S)

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

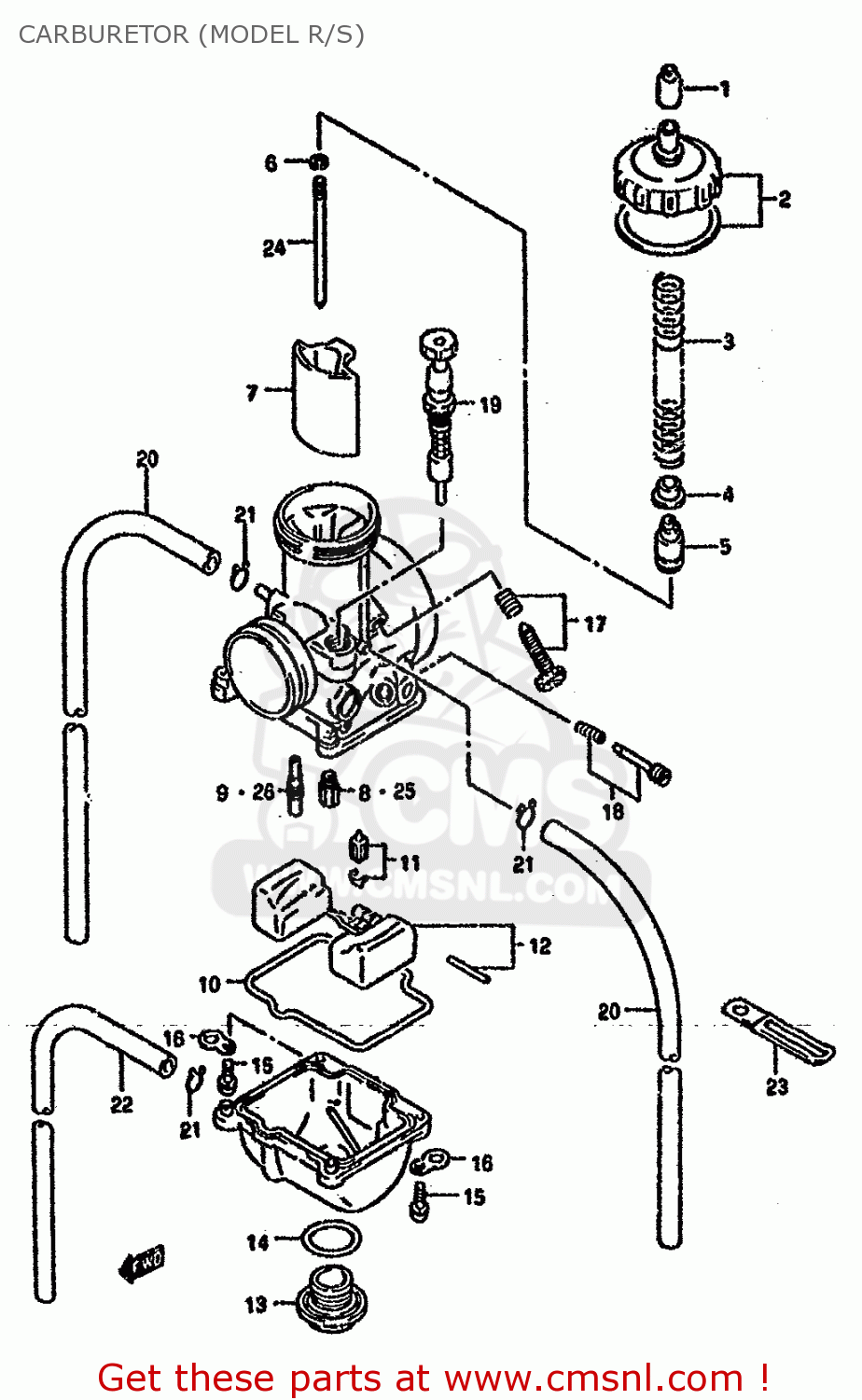

Carburetor (model r/s) diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CARBURETOR (MODEL R/S) RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR (MODEL R/S) RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR (MODEL R/S) RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
1320043D30
ref: 0
MODEL R
CARBURETOR ASSEMBLY
€ 387.00
0
1320043D40
ref: 0
MODEL S
CARBURETOR ASSY
€ 308.50
1
1368143D30
ref: 1
CAP,CARBURETOR
1368143D30
€ 7.50
2
1326043D30
ref: 2
CAP SET,TOP
1326043D30
€ 43.50
3
1357343D30
ref: 3
SPRING,THROTTLE VALVE
€ 9.00
4
1342443D30
ref: 4
COLLAR,THROTTLE VALVE
1342443D30
€ 5.00
5
1358143D30
ref: 5
HOLDER,CABLE
1358143D30
€ 19.00
6
1339428E00
ref: 6
CLIP,NEEDLE
1339428E00
€ 3.50
7
1355143D30
ref: 7
VALVE,THROTTLE
€ 119.50
8-1
0949133010
ref: 8-1
MODEL R
JET,MAIN(168)
0949133010
€ 12.50
8-2
0949136008
ref: 8-2
MODEL S
JET,MAIN(180)
0949136008
€ 15.50
9-1
0949250023
ref: 9-1
MODEL R
JET,SLOW(50)
0949250023
€ 11.50
9-2
0949252011
ref: 9-2
MODEL S
JET,SLOW(52)
0949252011
€ 11.50
10
1369628E00
ref: 10
GASKET,FLOAT CHAMBER
1369628E00
€ 11.00
11
1337043D30
ref: 11
VALVE SET,FLOAT
1337043D30
€ 40.50
12
1324028E00
ref: 12
FLOAT SET
1324028E00
€ 49.00
13
1324728E00
ref: 13
BOLT,DRAIN
1324728E00
€ 15.00
14
1324628E00
ref: 14
O RING
1324628E00
€ 3.50
15
0211234163
ref: 15
SCREW
0211234163
€ 3.00
16
1369328E00
ref: 16
PLATE
1369328E00
€ 4.50
17
1327043D30
ref: 17
SCREW SET,STOP
1327043D30
€ 14.50
18
1328043D30
ref: 18
SCREW SET,AIR
1328043D30
€ 18.50
19
1341043D30
ref: 19
STARTER VALVE
1341043D30
€ 64.50
20
1368628E00
ref: 20
HOSE (4X7X440)
€ 7.50
21
0940106101
ref: 21
CLIP
0940106101
€ 2.50
22
0935135653600
ref: 22
L:600 300
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
23-1
0940408405
ref: 23-1
MODEL R
CLAMP
€ 3.50
23-2
0940408418
ref: 23-2
MODEL S
CLAMP(L:65)
€ 3.50
24-1
1338043D30
ref: 24-1
OPT,MODEL R
NEEDLE SET,JET
1338043D30
€ 52.00
24-2
1338328E00
ref: 24-2
OPT,MODEL S
NEEDLE(R1469MS)
1338328E00
€ 14.50
24-3
1338328E10
ref: 24-3
OPT,MODEL S
NEEDLE(R1469NS)
1338328E10
€ 11.00
24-4
1338328E20
ref: 24-4
OPT,MODEL S
NEEDLE(R1470MS)
1338328E20
€ 11.00
24-5
1338328E30
ref: 24-5
OPT,MODEL S
NEEDLE(R1470NS)
1338328E30
€ 11.00
24-6
1338328E40
ref: 24-6
OPT,MODEL S
NEEDLE(R1471MS)
1338328E40
€ 11.00
24-7
1338328E50
ref: 24-7
OPT,MODEL S
NEEDLE(R1471NS)
1338328E50
€ 11.00
24-8
1338343D30
ref: 24-8
OPT,MODEL S
NEEDLE (R1468NS)
1338343D30
€ 13.00
24-9
1338343D40
ref: 24-9
OPT,MODEL S
NEEDLE(R1468MS)
1338343D40
€ 10.00
24-10
1338343D50
ref: 24-10
OPT,MODEL S
NEEDLE(R1467NS)
1338343D50
€ 12.00
24-11
1338343D60
ref: 24-11
OPT,MODEL S
NEEDLE(R1467MS)
1338343D60
€ 11.50
25-1
0949129014
ref: 25-1
OPT
JET,MAIN(145)
0949129014
€ 9.00
25-2
0949129015
ref: 25-2
OPT
JET,MAIN(148)
0949129015
€ 9.00
25-3
0949130018
ref: 25-3
OPT
JET,MAIN(150)
0949130018
€ 13.00
25-4
0949130019
ref: 25-4
OPT
JET,MAIN(152)
0949130019
€ 13.00
25-5
0949131012
ref: 25-5
OPT
JET,MAIN(155)
0949131012
€ 13.00
25-6
0949131013
ref: 25-6
OPT
JET,MAIN(158)
0949131013
€ 13.00
25-7
0949132010
ref: 25-7
OPT
JET,MAIN(160)
0949132010
€ 13.00
25-8
0949132011
ref: 25-8
OPT
JET,MAIN(162)
0949132011
€ 13.00
25-9
0949133009
ref: 25-9
OPT
JET,MAIN(165)
0949133009
€ 9.00
25-10
0949133010
ref: 25-10
OPT
JET,MAIN(168)
0949133010
€ 12.50
25-11
0949134010
ref: 25-11
OPT
JET,MAIN(170)
0949134010
€ 12.50
25-12
0949134011
ref: 25-12
OPT
JET,MAIN(172)
0949134011
€ 12.50
25-13
0949135009
ref: 25-13
OPT
JET,MAIN(175)
0949135009
€ 15.50
25-14
0949135010
ref: 25-14
OPT
JET,MAIN(178)
€ 15.50
25-15
0949136008
ref: 25-15
OPT
JET,MAIN(180)
0949136008
€ 15.50
25-16
0949137008
ref: 25-16
OPT
JET,MAIN(185)
0949137008
€ 15.50
25-17
0949138011
ref: 25-17
OPT
JET,MAIN(190)
0949138011
€ 15.50
25-18
0949139001
ref: 25-18
OPT
JET,MAIN(195)
0949139001
€ 12.50
25-19
0949140013
ref: 25-19
OPT
JET,MAIN(200)
0949140013
€ 12.50
26-1
0949235019
ref: 26-1
OPT
JET,SLOW(35)
0949235019
€ 13.00
26-2
0949240022
ref: 26-2
OPT
JET,SLOW(40)
0949240022
€ 15.50
26-3
0949245032
ref: 26-3
OPT
JET,PILOT(45)
0949245032
€ 9.00
26-4
0949250023
ref: 26-4
OPT
JET,SLOW(50)
0949250023
€ 11.50
26-5
0949252011
ref: 26-5
OPT
JET,SLOW(52)
0949252011
€ 11.50
26-6
0949255017
ref: 26-6
OPT
JET,SLOW(55)
0949255017
€ 11.50
26-7
0949260016
ref: 26-7
OPT
JET,SLOW(60)
0949260016
€ 12.50
26-8
0949265008
ref: 26-8
OPT
JET,SLOW(65)
0949265008
€ 12.00
26-9
0949270009
ref: 26-9
OPT
JET,SLOW(70)
0949270009
€ 8.50
