CRANKCASE COVER-WATER PUMP

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

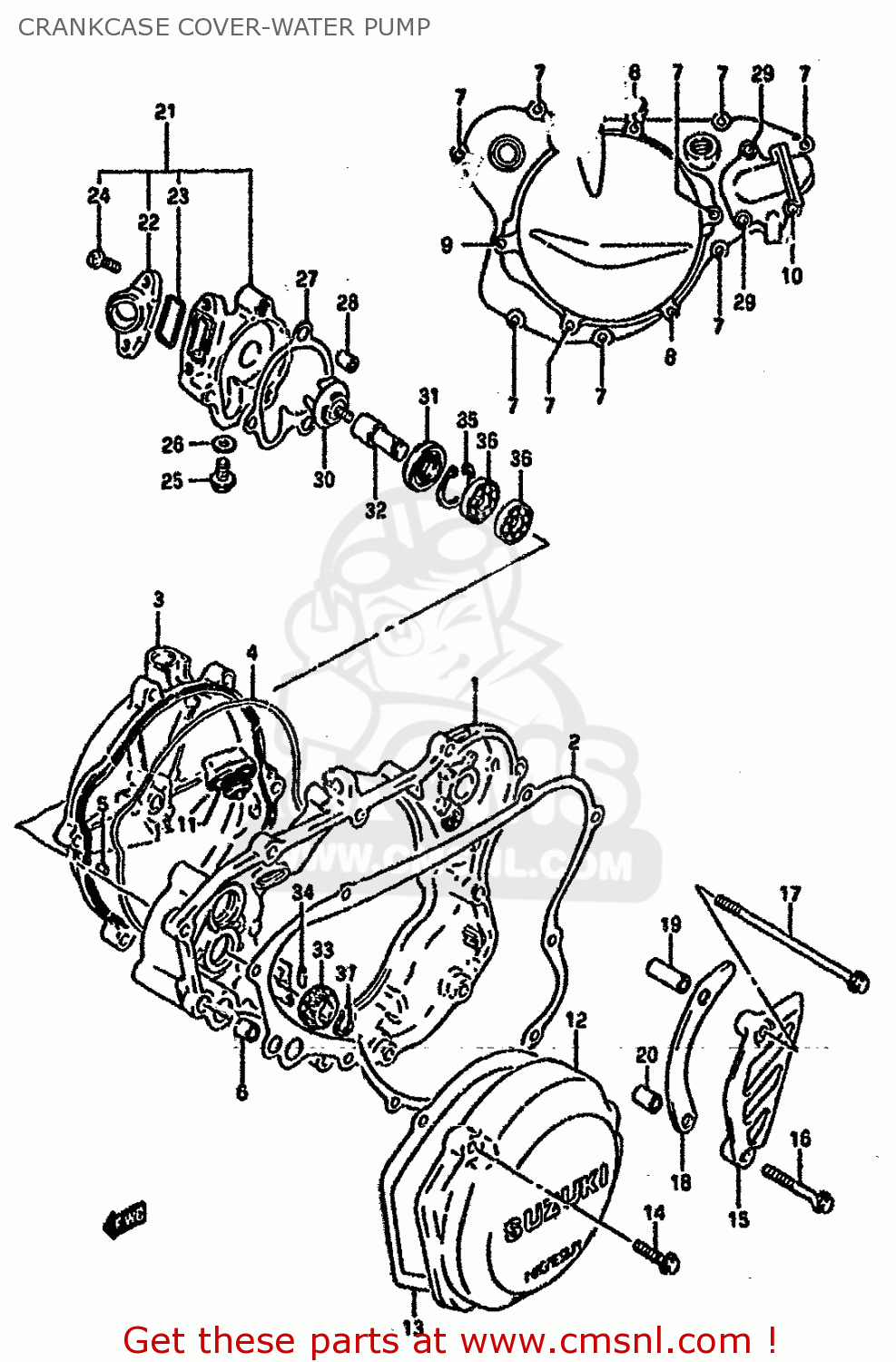

Crankcase cover-water pump diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CRANKCASE COVER-WATER PUMP RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKCASE COVER-WATER PUMP RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKCASE COVER-WATER PUMP RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1134143D00
ref: 1-1
MODEL N
COVER,CLUTCH
1134143D00
€ 727.00
1-2
1134043810
ref: 1-2
MODEL P/R
COVER,CLUTCH
1134043810
€ 727.00
1-3
1134043811
ref: 1-3
MODEL S
COVER SET,CLUTCH
€ 727.00
2-1
1148243D00
ref: 2-1
MODEL N/P/R
GASKET,CLUTCH COVER (NAS)
1148243D00
€ 17.00
2-2
1148243D01
ref: 2-2
MODEL S
GASKET,CLUTCH COVER (NAS)
1148243D01
€ 17.00
3-1
1137143D01
ref: 3-1
MODEL N
COVER,CLUTCH,OUTER
1137143D01
€ 167.00
3-2
1137143D10
ref: 3-2
MODEL P/R/S
COVER,CLUTCH OUTER
1137143D10
€ 167.00
4
1148443D00
ref: 4
O RING,CLUTCH COVER OUTER
1148443D00
€ 11.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
0421109129
ref: 6
PIN
0421109129
€ 2.00
7-1
0154706257
ref: 7-1
MODEL N/P
BOLT
0154706257
€ 2.50
7-2
0154706253
ref: 7-2
MODEL R/S
SCREW
0154706253
€ 2.50
8-1
0154706657
ref: 8-1
MODEL N/P
BOLT
0154706657
€ 2.00
8-2
0154706653
ref: 8-2
MODEL R/S
BOLT
€ 2.00
9-1
0154706707
ref: 9-1
MODEL N/P
BOLT
0154706707
€ 2.50
9-2
0154706703
ref: 9-2
MODEL R/S
BOLT
€ 3.00
10
0910306501
ref: 10
BOLT(6X100)
0910306501
€ 4.00
11
0920020810
ref: 11
PLUG SET
0920020810
€ 8.00
12-1
1135143D00
ref: 12-1
MODEL N
COVER
1135143D00
€ 104.50
12-2
1135143D10
ref: 12-2
MODEL P/R/S
COVER,MAGNETO
1135143D10
€ 104.50
13
1148343D00
ref: 13
GASKET,MAGNETO COVER (NAS)
1148343D00
€ 7.00
14-1
0154706257
ref: 14-1
MODEL N/P
BOLT
0154706257
€ 2.50
14-2
0154706253
ref: 14-2
MODEL R/S
SCREW
0154706253
€ 2.50
15-1
1136027C00
ref: 15-1
MODEL N
COVER,SPROCKET
€ 28.00
15-2
1136028E00
ref: 15-2
MODEL P/R/S
COVER,ENGINE SPROCKET
1136028E00
€ 28.00
16-1
0154706407
ref: 16-1
MODEL N/P
BOLT
0154706407
€ 2.50
16-2
0154706403
ref: 16-2
MODEL R/S
BOLT
0154706403
€ 3.00
17
0910306501
ref: 17
BOLT(6X100)
0910306501
€ 4.00
18-1
2764127C10
ref: 18-1
PLATE,FR CHAIN GUIDE(12T)
2764127C10
€ 9.00
18-2
2764127C00
ref: 18-2
OPT FOR 13T
PLATE,FR CHAIN GUIDE
2764127C00
€ 9.00
19
0918006203
ref: 19
SPACER(6.5X10.5X25)
0918006203
€ 3.50
20
0918006221
ref: 20
SPACER(6.5X10.5X12)
0918006221
€ 5.50
21-1
1741043D01
ref: 21-1
MODEL N
CASE ASSEMBLY,WATER PUMP
€ 72.50
21-2
1741043D10
ref: 21-2
MODEL P/R
CASE,WATER PUMP
€ 72.50
21-3
1741043D11
ref: 21-3
MODEL S
CASE ASSY,WATER PUMP
1741043D11
€ 72.50
22-1
1741228C10
ref: 22-1
MODEL N
CONNECTOR
1741228C10
€ 23.50
22-2
1741228E00
ref: 22-2
MODEL P/R/S
CONNECTOR
1741228E00
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
1741414300
€ 3.00
24-1
0211206164
ref: 24-1
MODEL N/P/R
SCREW
€ 2.00
24-2
0211206163
ref: 24-2
MODEL S
SCREW 6X16
0211206163
€ 2.00
25
1741543D00
ref: 25
BOLT
1741543D00
€ 3.00
26
1741328C10
ref: 26
WASHER
1741328C10
€ 1.50
27
1743143D00
ref: 27
GASKET,WATER PUMP CASE (NAS)
1743143D00
€ 8.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29-1
0154706357
ref: 29-1
MODEL N/P
BOLT
0154706357
€ 2.50
29-2
0154706353
ref: 29-2
MODEL R/S
BOLT
0154706353
€ 3.00
30-1
1749101B03
ref: 30-1
MODEL N/P
IMPELLER,WATER PUMP
€ 18.50
30-2
1749143D00
ref: 30-2
MODEL R/S
IMPELLER,WATER PUMP
1749143D00
€ 18.50
31
1746128C10
ref: 31
SEAL,WATER PUMP OIL
1746128C10
€ 7.00
32
1751127C10
ref: 32
SHAFT,WATER PUMP
€ 44.00
33-1
1744127C10
ref: 33-1
MODEL N/P/R
GEAR,WATER PUMP DRIVEN
1744127C10
€ 29.00
33-2
1744143D20
ref: 33-2
MODEL S
GEAR,WATER PUMP DRIVEN(NT:22)
1744143D20
€ 29.00
34
0926103010
ref: 34
PIN(3X13.8)
0926103010
€ 3.00
35
0833141246
ref: 35
CIRCLIP
0833141246
€ 2.50
36
0811369000
ref: 36
BEARING
0811369000
€ 23.50
37
0833131106
ref: 37
CIRCLIP,10MM
0833131106
€ 2.00
