EXHAUST VALVE

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

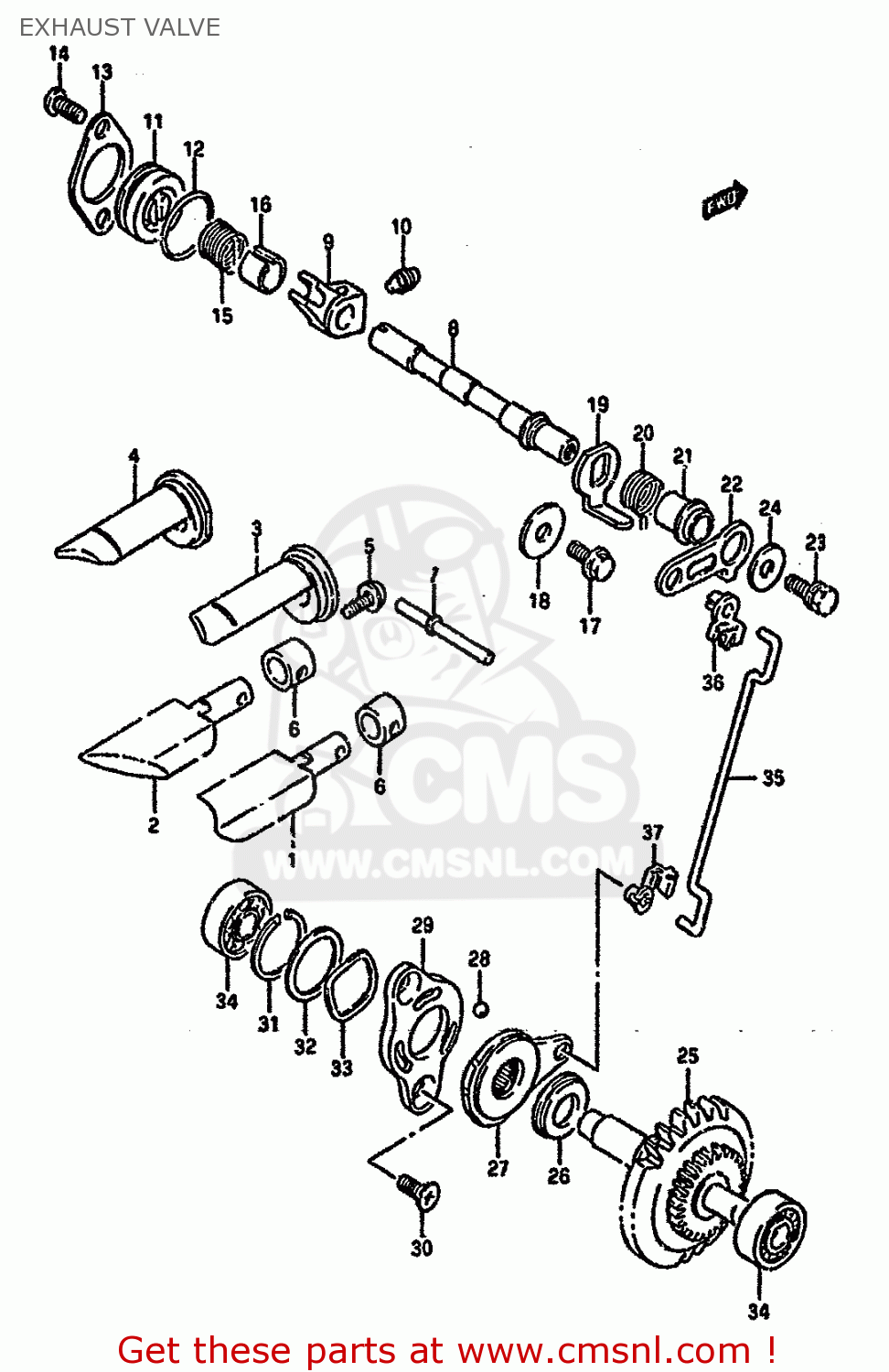

Exhaust valve diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

EXHAUST VALVE RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1125427C30
ref: 1-1
MODEL N
VALVE,EXHAUST,R
1125427C30
€ 136.00
1-2
1125443D00
ref: 1-2
MODEL P
VALVE,EXHAUST,R
€ 140.50
1-3
1125443D10
ref: 1-3
MODEL R
VALVE,EXHAUST,R
€ 140.50
1-4
1125443D20
ref: 1-4
MODEL S
VALVE,EXHAUST,R
€ 152.00
2-1
1125527C30
ref: 2-1
MODEL N
VALVE,EXHAUST,L
1125527C30
€ 132.50
2-2
1125543D00
ref: 2-2
MODEL P
VALVE,EXHAUST,L
1125543D00
€ 138.00
2-3
1125543D10
ref: 2-3
MODEL R
VALVE,EXHAUST,L
€ 138.50
2-4
1125543D20
ref: 2-4
MODEL S
VALVE,EXHAUST,L
1125543D20
€ 133.50
3-1
1126127C30
ref: 3-1
MODEL N
GUIDE,EXHAUST VALVE,R
1126127C30
€ 124.50
3-2
1126143D00
ref: 3-2
MODEL P
GUIDE,EXHAUST VALVE,R
1126143D00
€ 116.50
3-3
1126143D10
ref: 3-3
MODEL R
GUIDE,EXHAUST VALVE,R
€ 131.00
3-4
1126143D20
ref: 3-4
MODEL S
GUIDE,EXHAUST VALVE,R
1126143D20
€ 110.00
4-1
1126227C30
ref: 4-1
MODEL N
GUIDE,EXHAUST VALVE,L
1126227C30
€ 137.50
4-2
1126243D00
ref: 4-2
MODEL P
GUIDE,EXHAUST VALVE,L
1126243D00
€ 113.00
4-3
1126243D10
ref: 4-3
MODEL R
GUIDE,EXHAUST VALVE,L
1126243D10
€ 110.00
4-4
1126243D20
ref: 4-4
MODEL S
GUIDE,EXHAUST VALVE,L
€ 110.00
5-1
0211215128
ref: 5-1
MODEL N/P
SCREW
€ 1.50
5-2
0211215123
ref: 5-2
MODEL R/S
SCREW 5X12
0211215123
€ 1.50
6-1
1126300B20
ref: 6-1
MODEL N/P
HOLDER,EXHAUST VALVE
€ 14.00
6-2
1126301B30
ref: 6-2
MODEL R/S
SPACER,EXHAUST VALVE
1126301B30
€ 14.00
7
1125301B31
ref: 7
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
8
1125927C30
ref: 8
SHAFT,EXHAUST VALVE
1125927C30
€ 60.00
9
1126400B23
ref: 9
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
10
0913406013
ref: 10
SCREW(6X10)
0913406013
€ 4.50
11
1125827C00
ref: 11
CAP,EXHAUST VALVE
1125827C00
€ 52.00
12
0928023002
ref: 12
O RING(D:1.9,ID:22.6)
0928023002
€ 2.50
13
1126500B21
ref: 13
RETAINER,EXHAUST VALVE
€ 2.50
14-1
0211205128
ref: 14-1
MODEL N/P
SCREW
€ 2.50
14-2
0211205123
ref: 14-2
MODEL R
SCREW
0211205123
€ 1.50
14-3
0150005123
ref: 14-3
MODEL S
BOLT
0150005123
€ 1.50
15-1
0944416006
ref: 15-1
MODEL N/P
SPRING
0944416006
€ 7.50
15-2
0944416007
ref: 15-2
MODEL R/S
SPRING
0944416007
€ 6.00
16
1126900B20
ref: 16
SPACER,EXHAUST VALVE SPRING
1126900B20
€ 19.00
17-1
0154706107
ref: 17-1
MODEL N/P
BOLT
0154706107
€ 1.50
17-2
0154706103
ref: 17-2
MODEL R/S
BOLT
0154706103
€ 3.00
18
0821206201
ref: 18
WASHER
0821206201
€ 1.50
19-1
1126700B20
ref: 19-1
MODEL N/P
LEVER,EXHAUST VALVE NO
€ 5.50
19-2
1126700B21
ref: 19-2
MODEL R/S
LEVER,EXHAUST VALVE NO.2
1126700B21
€ 5.50
20-1
0944415008
ref: 20-1
MODEL N/P/R
SPRING
0944415008
€ 6.00
20-2
0944415010
ref: 20-2
MODEL S
SPRING
0944415010
€ 5.50
21
1126801B00
ref: 21
SPACER,EXHAUST VALVE
1126801B00
€ 8.50
22
1126600B21
ref: 22
LEVER,EXHAUST VALVE NO.1
1126600B21
€ 3.50
23-1
0113405126
ref: 23-1
MODEL N/P/R
BOLT
€ 2.00
23-2
0911805003
ref: 23-2
MODEL S
BOLT(5X12)
0911805003
€ 4.00
24
0916005017
ref: 24
WASHER (5.5X16X1.2)
0916005017
€ 2.50
25
1267027C10
ref: 25
GOVERNOR ASSY,EXHAUST VALVE
1267027C10
€ 86.00
26
0926310002
ref: 26
BEARING(10X22X2.8)
0926310002
€ 8.50
27
1268001820
ref: 27
ACTUATOR,EXHAUST VALVE
1268001820
€ 47.50
28
0611106003
ref: 28
BALL
0611106003
€ 1.50
29
1268201B02
ref: 29
STARTER,EXHAUST VALVE ACTUATOR
1268201B02
€ 26.50
30
0912005003
ref: 30
SCREW(5X10)
0912005003
€ 2.00
31
0938019003
ref: 31
CIRCLIP
0938019003
€ 2.50
32
0918119004
ref: 32
SHIM(19.1X25X0.3)
0918119004
€ 4.00
33
0916419001
ref: 33
WASHER
0916419001
€ 7.00
34
0926208005
ref: 34
BEARING(8X22X7)
0926208005
€ 12.50
35
1268527C00
ref: 35
ROD,EXHAUST VALVE
1268527C00
€ 7.50
36
1268601B00
ref: 36
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 2.00
37
1268701B00
ref: 37
BUSH,EXHAUST VALVE ROD NO.2
1268701B00
€ 2.00
