MUFFLER

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

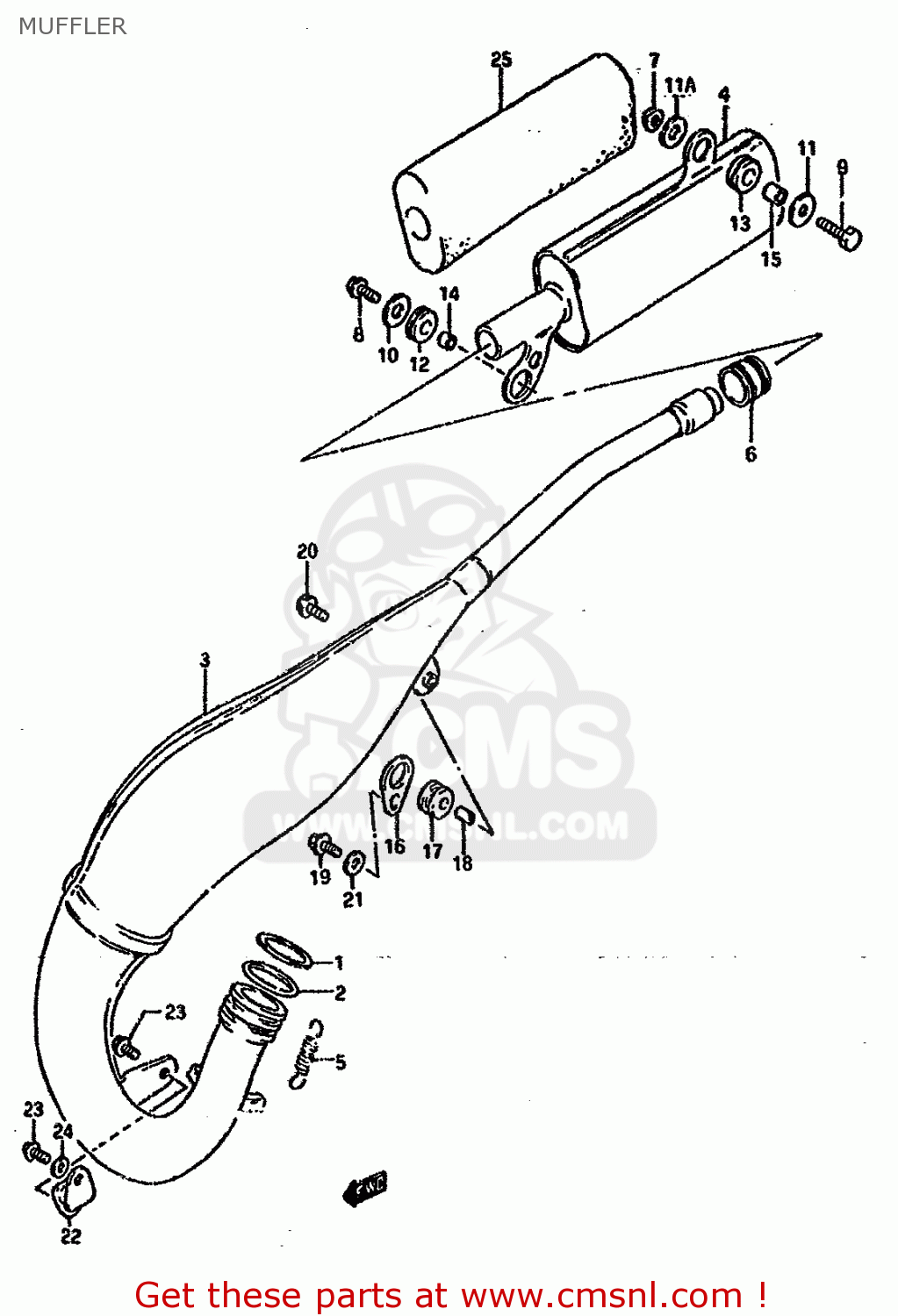

Muffler diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

MUFFLER RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
MUFFLER RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
MUFFLER RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
1417227C30
ref: 1
WASHER,EXHAUST PIPE
1417227C30
€ 6.00
2
1417127C30
ref: 2
O RING,EXHAUST PIPE
1417127C30
€ 17.50
3-1
1431043D00H01
ref: 3-1
MODEL N
BODY,MUFFLER,FIRST
1431043D00H01
€ 341.00
3-2
1431043D10H01
ref: 3-2
MODEL P/R/S
BODY COMP,MUFFLER,FIRST
1431043D10H01
€ 640.50
4-1
1433027C42H01
ref: 4-1
MODEL N
BODY,MUFFLER,SECOND
€ 239.50
4-2
1433043D00H01
ref: 4-2
MODEL P/R/S
BODY COMP,MUFFLER,SECOND
€ 219.50
5
0944311027
ref: 5
SPRING
0944311027
€ 7.50
6-1
1477143D00
ref: 6-1
MODEL N
CONNECTOR,MUFFLER
1477143D00
€ 19.00
6-2
1477143D10
ref: 6-2
MODEL P/R/S
CONNECTOR,SECOND MUFFLER
€ 60.00
7-1
0831931087
ref: 7-1
MODEL N
NUT
0831931087
€ 2.50
7-2
0831931067
ref: 7-2
MODEL P/R/S
NUT
0831931067
€ 2.50
8
0154706207
ref: 8
BOLT
0154706207
€ 2.50
9-1
0110708307
ref: 9-1
MODEL N
BOLT
€ 2.50
9-2
0154706257
ref: 9-2
MODEL P/R/S
BOLT
0154706257
€ 2.50
10
0916006002
ref: 10
WASHER (6.5X24X1.2)
0916006002
€ 2.00
11
0916008032
ref: 11
MODEL N
WASHER(8.5X26X1.2)
0916008032
€ 3.50
11A
0916006002
ref: 11A
MODEL P/R/S
WASHER (6.5X24X1.2)
0916006002
€ 2.00
12
0932010041
ref: 12
CUSHION
0932010041
€ 4.50
13
0932011016
ref: 13
CUSHION
0932011016
€ 5.50
14
0918006210
ref: 14
SPACER (6.8X10X9)
€ 2.50
15-1
0918008155
ref: 15-1
MODEL N
SPACER (8.1X11.5X13)
€ 5.00
15-2
0918006212
ref: 15-2
MODEL P/R/S
SPACER(6.5X11.5X13)
0918006212
€ 4.00
16
1476127C00
ref: 16
PLATE,MUFFLER MTG
1476127C00
€ 7.00
17
1476201B01
ref: 17
CUSHION,MUFFLER
1476201B01
€ 3.00
18
0918006062
ref: 18
SPACER (6.4X9X13.5)
0918006062
€ 2.00
19-1
0154706257
ref: 19-1
MODEL N/P
BOLT
0154706257
€ 2.50
19-2
0154706253
ref: 19-2
MODEL R/S
SCREW
0154706253
€ 2.50
20-1
0154706127
ref: 20-1
MODEL N/P
BOLT
0154706127
€ 2.00
20-2
0154706123
ref: 20-2
MODEL R/S
BOLT
0154706123
€ 2.00
21-1
0916006027
ref: 21-1
MODEL N/P
WASHER (6.5X20X1.2)
0916006027
€ 2.00
21-2
0916006069
ref: 21-2
MODEL R
WASHER
0916006069
€ 2.00
21-3
0916006057
ref: 21-3
MODEL S
WASHER
€ 2.00
22
1477020400
ref: 22
DAMPER,MUFFLER SUPPORT
1477020400
€ 10.00
23-1
0154706167
ref: 23-1
MODEL N/P
BOLT
0154706167
€ 2.00
23-2
0154706163
ref: 23-2
MODEL R/S
BOLT
0154706163
€ 2.50
24
0916006057
ref: 24
WASHER
€ 2.00
25
1435127C40
ref: 25
OPT
SILENCER,MUFFLER
€ 61.00
