CRANKSHAFT

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

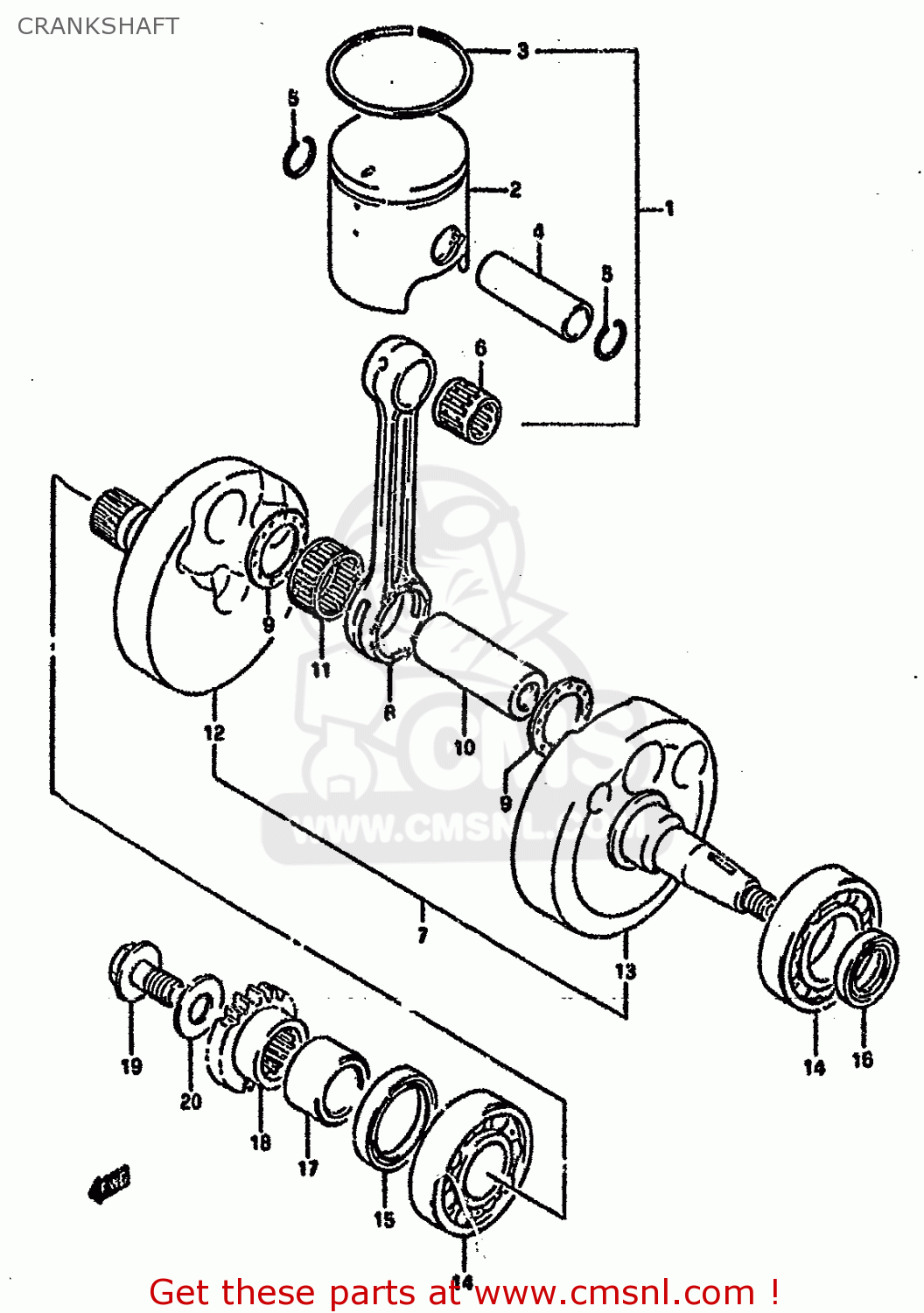

Crankshaft diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CRANKSHAFT RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKSHAFT RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKSHAFT RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1210043833
ref: 1-1
OPT,MODEL N/P/R
PISTON KIT
€ 127.00
1-2
1210043850
ref: 1-2
OPT,MODEL S
PISTON KIT
€ 127.00
2-1
1211043D300F0
ref: 2-1
MODEL N/P/R
PISTON
€ 92.50
2-2
1211043D400F0
ref: 2-2
MODEL S
PISTON COMP
1211043D400F0
€ 92.50
3
1214143D00
ref: 3
RING,PISTON
1214143D00
€ 27.00
4
1215101B41
ref: 4
PIN,PISTON
1215101B41
€ 16.00
5
0938115001
ref: 5
CIRCLIP
0938115001
€ 1.50
6
0926315040
ref: 6
BEARING(15X19X20)
0926315040
€ 20.00
7-1
1220043D00
ref: 7-1
MODEL N
CRANKSHAFT ASSEMBLY
€ 696.50
7-2
1220043D10
ref: 7-2
MODEL P/R/S
CRANKSHAFT ASSY
€ 696.50
8
1216143D00
ref: 8
ROD,CONNECTING
1216143D00
€ 66.00
9
0916022077
ref: 9
WASHER(22X36X1.5)
0916022077
€ 20.00
10
1221127C00
ref: 10
PIN,CRANK
1221127C00
€ 30.50
11
0926322060
ref: 11
BEARING(22X28X16)
0926322060
€ 64.00
12-1
1222127C11
ref: 12-1
MODEL N
CRANKSHAFT,RIGHT
1222127C11
€ 127.50
12-2
1222043D10
ref: 12-2
MODEL P/R/S
CRANKSHAFT,R
1222043D10
€ 220.00
13-1
1226127C02
ref: 13-1
MODEL N
CRANKSHAFT,LEFT
€ 143.50
13-2
1226043D10
ref: 13-2
MODEL P/R/S
CRANKSHAFT,L
1226043D10
€ 255.50
14
0926222025
ref: 14
BEARING(22X56X16)
0926222025
€ 63.50
15
0928330061
ref: 15
SEAL,OIL(30X40X7)
0928330061
€ 17.00
16
0928318006
ref: 16
SEAL,OIL(18X30X6)
0928318006
€ 13.50
17
1235927C30
ref: 17
SPACER,PRIMARY DRIVE GEAR
1235927C30
€ 9.50
18
2111143D00
ref: 18
GEAR,PRIMARY DRIVE (NT:
2111143D00
€ 49.00
19
2114127C11
ref: 19
BOLT,PRIMARY DRIVE GEAR
€ 11.50
20
0916411004
ref: 20
WASHER
0916411004
€ 6.00
