CLUTCH

RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

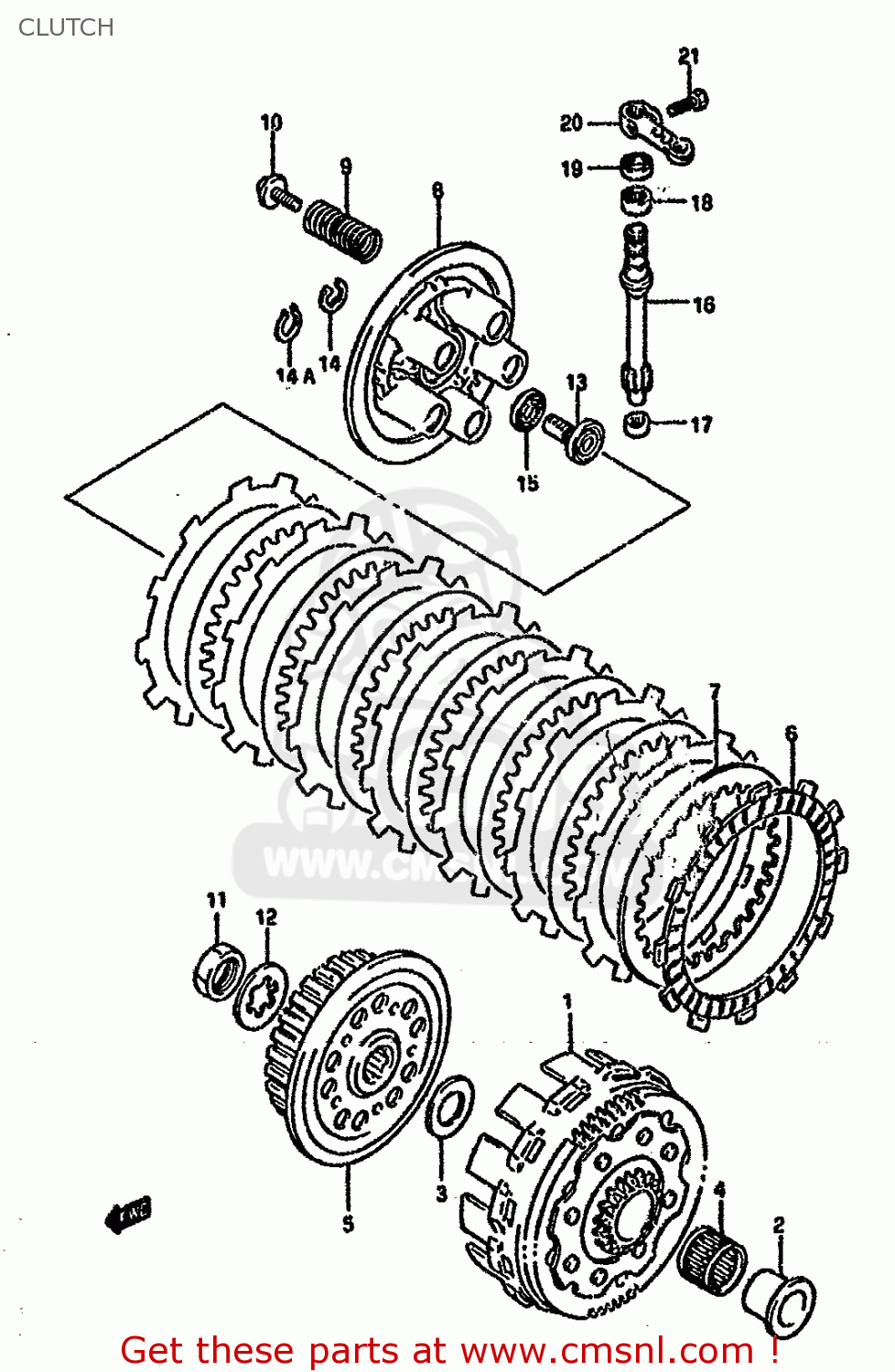

Clutch diagram RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CLUTCH RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH RM125 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
2120043D00
ref: 1-1
MODEL N/P,NT:64/18 2
GEAR ASSEMBLY,PRIMARY DRIVE
€ 233.50
1-2
2120043D02
ref: 1-2
MODEL R/S,NT:64/18
GEAR ASSEMBLY,PRIMARY (NT:6
2120043D02
€ 233.50
2-1
2125100B00
ref: 2-1
MODEL N/P
SPACER,PRIMARY DRIVEN
2125100B00
€ 31.00
2-2
2125143D00
ref: 2-2
MODEL R/S
SPACER,PRIMARY DRIVEN GEAR
2125143D00
€ 31.00
3
0821120363
ref: 3
WASHER
0821120363
€ 3.50
4
0926325046
ref: 4
BEARING(25X30X22)
0926325046
€ 31.50
5-1
2141143D00
ref: 5-1
MODEL N
HUB,CLUTCH SLEEVE
€ 80.00
5-2
2141143D01
ref: 5-2
MODEL P
HUB,CLUTCH SLEEVE
€ 80.00
5-3
2141143D02
ref: 5-3
MODEL R/S
HUB,CLUTCH SLEEVE
2141143D02
€ 80.00
6
2144143D00
ref: 6
PLATE,CLUTCH DRIVE(T:2.8) (NAS)
2144143D00
€ 16.50
7
2145143D00
ref: 7
PLATE,CLUTCH DRIVEN(T:1.4) (NAS)
2145143D00
€ 8.00
8
2146243D00
ref: 8
DISC,CLUTCH PRESSURE
2146243D00
€ 38.00
9-1
0944018025
ref: 9-1
MODEL N
SPRING
0944018025
€ 9.00
9-2
0944018026
ref: 9-2
MODEL P/R/S
SPRING
0944018026
€ 7.50
10
0911605019
ref: 10
BOLT(5X25)
0911605019
€ 3.00
11
0914020002
ref: 11
NUT (20MM)
0914020002
€ 3.50
12
0916720006
ref: 12
WASHER,LOCK
0916720006
€ 3.00
13-1
2316528300
ref: 13-1
MODEL N/P 23165-2830
RACK,CLUTCH RELEASE
2316528300
€ 20.00
13-2
2316528301
ref: 13-2
MODEL R
RACK,CLUTCH RELEASE
€ 20.00
13-3
2316546000
ref: 13-3
MODEL S
RACK,CLUTCH RELEASE
2316546000
€ 20.00
14
0833211086
ref: 14
MODEL N/P FOR 23165-
E RING
0833211086
€ 2.00
14A
0833131106
ref: 14A
MODEL R/S FOR 23165-
CIRCLIP,10MM
0833131106
€ 2.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
0926310002
€ 8.50
16
2326100B20
ref: 16
PINION,CLUTCH RELEASE(NT:12)
2326100B20
€ 46.50
17
0926309001
ref: 17
BEARING(9X13X10)
0926309001
€ 11.00
18
0926312024
ref: 18
BEARING(12X16X10)
0926312024
€ 11.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
0928510004
€ 3.50
20
2327120901
ref: 20
ARM,CLUTCH RELEASE
2327120901
€ 20.50
21-1
0110706167
ref: 21-1
MODEL N/P
BOLT
0110706167
€ 3.00
21-2
0154706163
ref: 21-2
MODEL R/S
BOLT
0154706163
€ 2.50
