CYLINDER

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

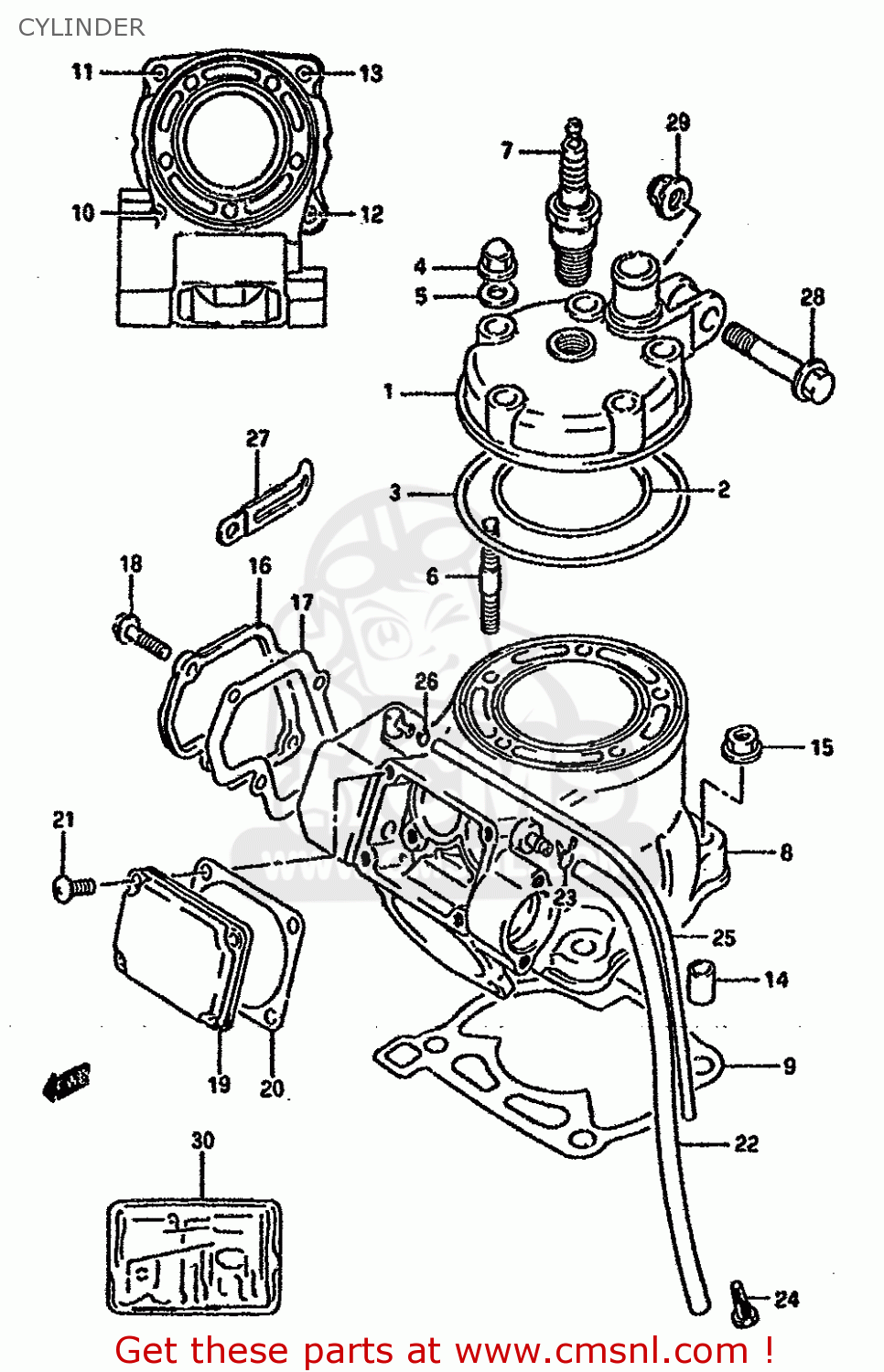

Cylinder diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CYLINDER RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CYLINDER RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CYLINDER RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1111127C31
ref: 1-1
MODEL N
HEAD,CYLINDER
€ 123.00
1-2
1111127C32
ref: 1-2
MODEL P
HEAD,CYLINDER
€ 123.00
1-3
1111127C33
ref: 1-3
MODEL R/S
HEAD,CYLINDER
€ 123.00
2
1114727C11
ref: 2
O RING,CYLINDER HEAD NO.1
1114727C11
€ 12.00
3
1114827C11
ref: 3
O RING,CYLINDER HEAD NO.2
1114827C11
€ 6.50
4
0915908074
ref: 4
NUT
0915908074
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
6
0910808227
ref: 6
BOLT,STUD
€ 4.50
7-1
0948200500
ref: 7-1
PLUG,SPARK(R4118S-9)
€ 48.50
7-2
0948200115
ref: 7-2
MODEL N E4
SPARK PLUG BR9EV
€ 81.50
8-1
1120027832
ref: 8-1
MODEL N
CYLINDER
€ 602.00
8-2
1120027840
ref: 8-2
MODEL P
CYLINDER
1120027840
€ 602.00
8-3
1120027850
ref: 8-3
MODEL R
CYLINDER
€ 602.00
8-4
1120027B61
ref: 8-4
MODEL S
CYLINDER
€ 0.00
9
1124127C10
ref: 9
GASKET,CYLINDER (NAS)
1124127C10
€ 11.00
10
0142108258
ref: 10
STUD 8X25
0142108258
€ 2.50
11
0910808142
ref: 11
BOLT,STUD
0910808142
€ 3.00
12
0142108358
ref: 12
STUD BOLT
0142108358
€ 2.00
13
0910808144
ref: 13
BOLT,STUD
0910808144
€ 4.50
14
0920611004
ref: 14
PIN(8.4X11X14)
0920611004
€ 6.00
15-1
0831616088
ref: 15-1
MODEL N/P
NUT
0831616088
€ 2.50
15-2
0831610083
ref: 15-2
MODEL R/S
NUT
0831610083
€ 3.00
16
1123127C30
ref: 16
COVER,CYLINDER NO.1
1123127C30
€ 25.00
17-1
1123327C31
ref: 17-1
MODEL N/P
GASKET,CYLINDER COVER (NAS)
€ 6.50
17-2
1123327C32
ref: 17-2
MODEL R/S
GASKET,CYLINDER COVER NO.1 (NAS)
1123327C32
€ 6.50
18-1
0154706167
ref: 18-1
MODEL N/P
BOLT
0154706167
€ 2.00
18-2
0154706163
ref: 18-2
MODEL R/S
BOLT
0154706163
€ 2.50
19
1124827C30
ref: 19
COVER,CYLINDER NO.2
1124827C30
€ 44.50
20-1
1123827C30
ref: 20-1
MODEL N
GASKET,CYLINDER COVER NO.2 (NAS)
1123827C30
€ 5.00
20-2
1123827C31
ref: 20-2
MODEL P/R/S
GASKET,CYLINDER COVER NO.2 (NAS)
1123827C31
€ 5.00
21-1
0211205167
ref: 21-1
MODEL N/P
SCREW
0211205167
€ 2.50
21-2
0150005163
ref: 21-2
MODEL R/S
BOLT
0150005163
€ 1.50
22
0934309501
ref: 22
HOSE
0934309501
€ 13.50
23-1
0940112407
ref: 23-1
MODEL N/P/R
CLAMP
€ 3.00
23-2
0940112405
ref: 23-2
MODEL S
CLIP
0940112405
€ 3.00
24
1127128E20
ref: 24
MODEL S
FILTER,EXH VALVE BREATHER HOSE
1127128E20
€ 12.00
25
0935250823600
ref: 25
MODEL S,L:600 390
HOSE(5X8.2X600)
0935250823600
€ 13.00
26
0940108401
ref: 26
MODEL S
CLIP
0940108401
€ 1.50
27-1
0940406402
ref: 27-1
MODEL N/P/R
CLAMP
€ 2.50
27-2
0940406429
ref: 27-2
MODEL S
CLAMP(L:45)
€ 2.50
28
0910308083
ref: 28
BOLT(8X41)
0910308083
€ 3.50
29-1
0915908034
ref: 29-1
MODEL N
NUT
0915908034
€ 2.00
29-2
0915908067
ref: 29-2
MODEL P/R/S
NUT
0915908067
€ 5.50
30-1
1140043863
ref: 30-1
MODEL N
GASKET SET (NAS)
€ 147.00
30-2
1140043864
ref: 30-2
MODEL P/R
GASKET SET (NAS)
€ 147.00
30-3
1140043865
ref: 30-3
MODEL S
GASKET SET (NAS)
€ 147.00
