FRAME-SEAT (MODEL R/S)

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

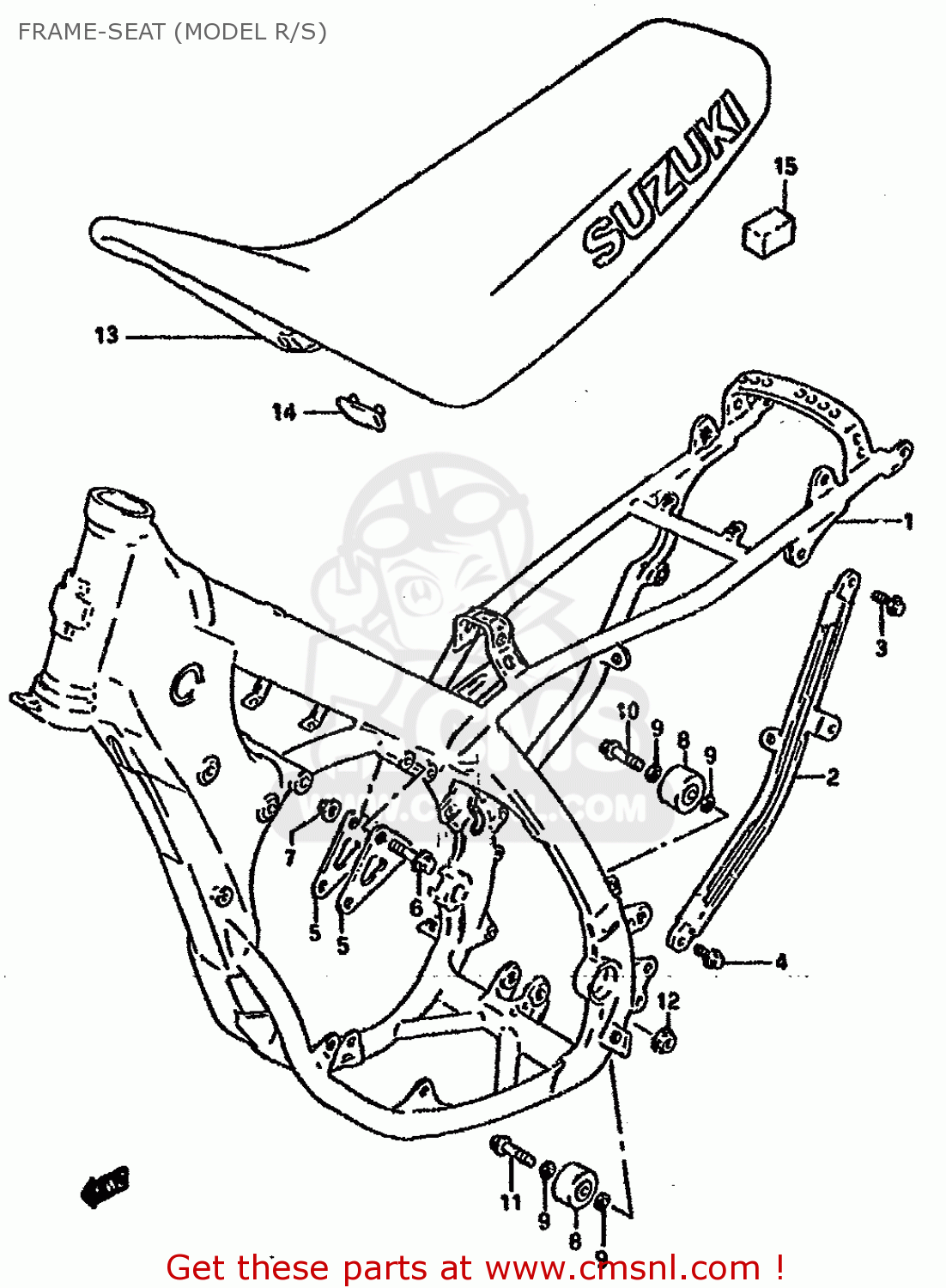

Frame-seat (model r/s) diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4110043D2024K
ref: 1-1
MODEL R

FRAME

€ 1,610.00

1-2

4110043D3024K
ref: 1-2
MODEL S

FRAME COMP

€ 1,610.00

4167028E01
ref: 2

TUBE,FRAME SIDE,L

€ 148.50

0156008203
ref: 3

BOLT

€ 2.50

0156008163
ref: 4

BOLT, LOWER

€ 1.50

4199343D02
ref: 5

PLATE,ENGINE MOUNT UPR

€ 26.50

0910308083
ref: 6

BOLT(8X41)

€ 3.50

0915908067
ref: 7

NUT

€ 5.50

4391027C11
ref: 8

ROLLER,CHAIN

€ 36.50

0821108121
ref: 9

WASHER

€ 2.00

0910308083
ref: 10

BOLT(8X41)

€ 3.50

0910308043
ref: 11

BOLT(8X45)

€ 4.50

0831931087
ref: 12

NUT

€ 2.50

13-1

4510028E11A5K
ref: 13-1
MODEL N/P

SEAT ASSEMBLY

€ 334.50

13-2

4510028E12D6Z
ref: 13-2
MODEL R/S

SEAT SET

€ 334.50

0932910001
ref: 14

CUSHION

€ 2.50

4529928E00
ref: 15

CUSHION,SEAT

€ 2.50

13-2

4510028E00A5K
ref: 13-2
MODEL P

SEAT ASSEMBLY

€ 334.50

14-1

0932108009
ref: 14-1
MODEL N

CUSHION

€ 4.00

14-2

0932910001
ref: 14-2
MODEL P

CUSHION

€ 2.50

4529928E00
ref: 15
MODEL P

CUSHION,SEAT

€ 2.50
