GEAR SHIFTING

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

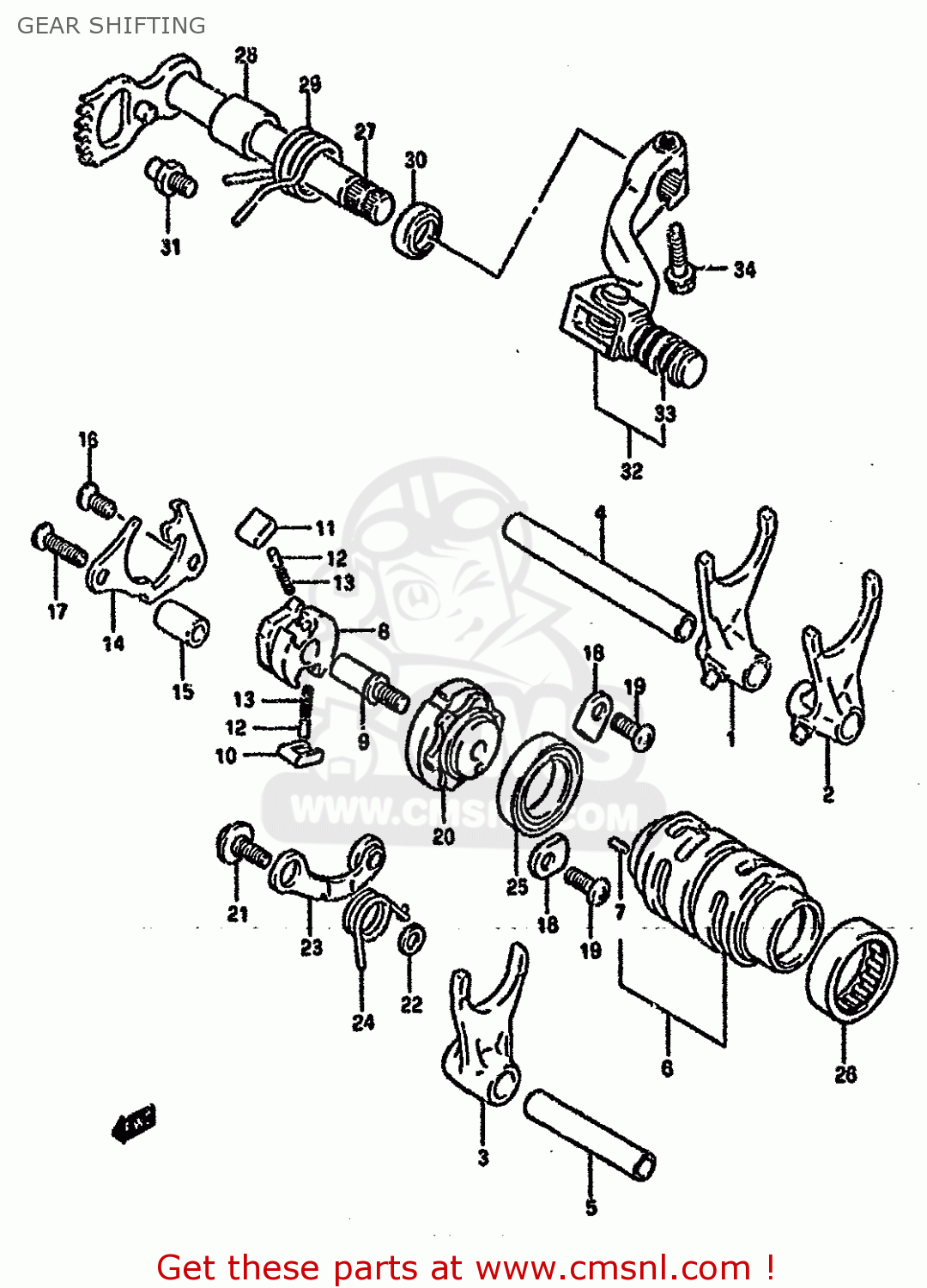

Gear shifting diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

GEAR SHIFTING RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
GEAR SHIFTING RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
GEAR SHIFTING RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2521143D00
ref: 1
FORK,GEAR SHIFT NO.1
2521143D00
€ 59.00
2
2522143D00
ref: 2
FORK,GEAR SHIFT NO.2
2522143D00
€ 59.00
3
2523143D00
ref: 3
FORK,GEAR SHIFT NO.3
2523143D00
€ 56.50
4
2541127C00
ref: 4
SHAFT,GEAR SHIFT FORK
2541127C00
€ 11.50
5
2542127C00
ref: 5
SHAFT,GEAR SHIFT FORK
2542127C00
€ 9.50
6
2531043D00
ref: 6
CAM,GEAR SHIFT
2531043D00
€ 104.50
7
0422104089
ref: 7
PIN
0422104089
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
9-1
2531327C00
ref: 9-1
MODEL N/P
PIN,SHIFT CAM DRIVEN GEAR
2531327C00
€ 6.00
9-2
2531327C01
ref: 9-2
MODEL R
PIN,SHIFT CAM DRIVEN GEAR
2531327C01
€ 6.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533128C00
ref: 14
LIFTER,GEAR SHIFT POLE
2533128C00
€ 15.00
15
0918006204
ref: 15
SPACER(6.2X12X18)
0918006204
€ 6.50
16
0212206128
ref: 16
SCREW
0212206128
€ 3.00
17
0212206308
ref: 17
SCREW
€ 2.00
18-1
2474120A10
ref: 18-1
MODEL N/P
RETAINER,SHIFT CAM,R BEARING
€ 2.00
18-2
2474121A00
ref: 18-2
MODEL R/S
RETAINER
2474121A00
€ 2.00
19
0211206108
ref: 19
SCREW
0211206108
€ 1.50
20
2538128C20
ref: 20
PLATE,SHIFT CAM STOPPER
2538128C20
€ 31.50
21
0911106041
ref: 21
BOLT(6X14.3)
0911106041
€ 3.00
22
0821106121
ref: 22
WASHER
0821106121
€ 2.00
23
2535028C20
ref: 23
STOPPER,SHIFT CAM
2535028C20
€ 12.00
24
0944818031
ref: 24
SPRING
0944818031
€ 4.00
25
0814069050
ref: 25
BEARING
0814069050
€ 28.50
26
0926330035
ref: 26
BEARING(30X37X12)
0926330035
€ 22.00
27
2551043D00
ref: 27
SHAFT,GEAR SHIFT
2551043D00
€ 57.00
28
0918014016
ref: 28
SPACER(14X20X17.5)
0918014016
€ 4.50
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31
2567101000
ref: 31
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
32
2560027C05
ref: 32
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
33
2565227C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565227C00
€ 21.00
34
0154706257
ref: 34
BOLT
0154706257
€ 2.50
