SHOCK ABSORBER (MODEL S)

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

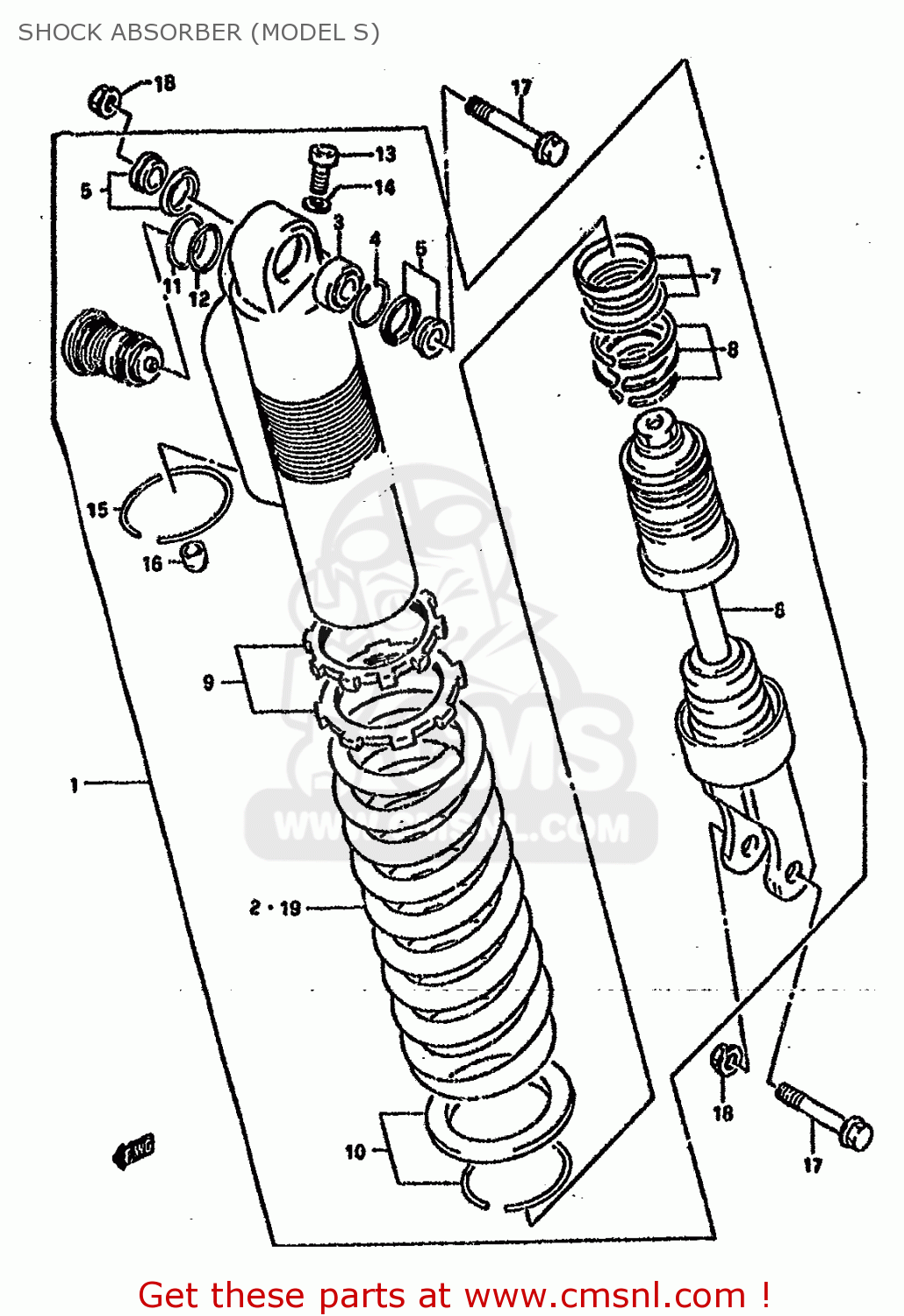

Shock absorber (model s) diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

SHOCK ABSORBER (MODEL S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
SHOCK ABSORBER (MODEL S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
SHOCK ABSORBER (MODEL S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
6210043D70163
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 999.50
2
6221127C80
ref: 2
SPRING
€ 199.50
3
6217528E00
ref: 3
BEARING,RR CUSHION LEVER RR
6217528E00
€ 49.50
4
6227727C40
ref: 4
RING,STOPPER
6227727C40
€ 2.00
5
6268028E00
ref: 5
COLLAR SET,RR SHOCK ABSORBER
6268028E00
€ 34.00
6
6212043D70
ref: 6
ROD,PISTON
€ 664.00
7
6215028E00
ref: 7
O RINR SET
6215028E00
€ 25.50
8
6229028E00
ref: 8
RING STOPPER SET,ABSORBER
6229028E00
€ 18.00
9
6219028E00
ref: 9
ADJUSTER SET,SHOCK ABSORBER
€ 51.00
10
6222028E00
ref: 10
SPRING SEAT SET,SHOCK ABSORBER
€ 22.00
11
6213128E00
ref: 11
O RING
6213128E00
€ 3.50
12
5117443D00
ref: 12
O RING,CTR BOLT UPR
5117443D00
€ 3.00
13
6228128E40
ref: 13
BOLT,REAR SHOCK ABSORBER
€ 0.00
14
5118331030
ref: 14
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
15
6227827C40
ref: 15
RING,STOPPER
€ 4.00
16
5129420400
ref: 16
CAP
5129420400
€ 3.50
17
6231128E00
ref: 17
BOLT,RR SHOCK ABSORBER
6231128E00
€ 4.00
18
0915910058
ref: 18
NUT
0915910058
€ 4.00
19-1
6221127C90
ref: 19-1
OPT
SPRING,REAR (K=5.0)
6221127C90
€ 214.00
19-2
6221127C70
ref: 19-2
OPT
SPRING
€ 220.00
21
5129420400
ref: 21
CAP
5129420400
€ 3.50
22
6231128E00
ref: 22
BOLT,RR SHOCK ABSORBER
6231128E00
€ 4.00
23
0915910058
ref: 23
NUT
0915910058
€ 4.00
24-1
6221127C90
ref: 24-1
OPT
SPRING,REAR (K=5.0)
6221127C90
€ 214.00
24-2
6221127C70
ref: 24-2
OPT
SPRING
€ 220.00
