ELECTRICAL

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

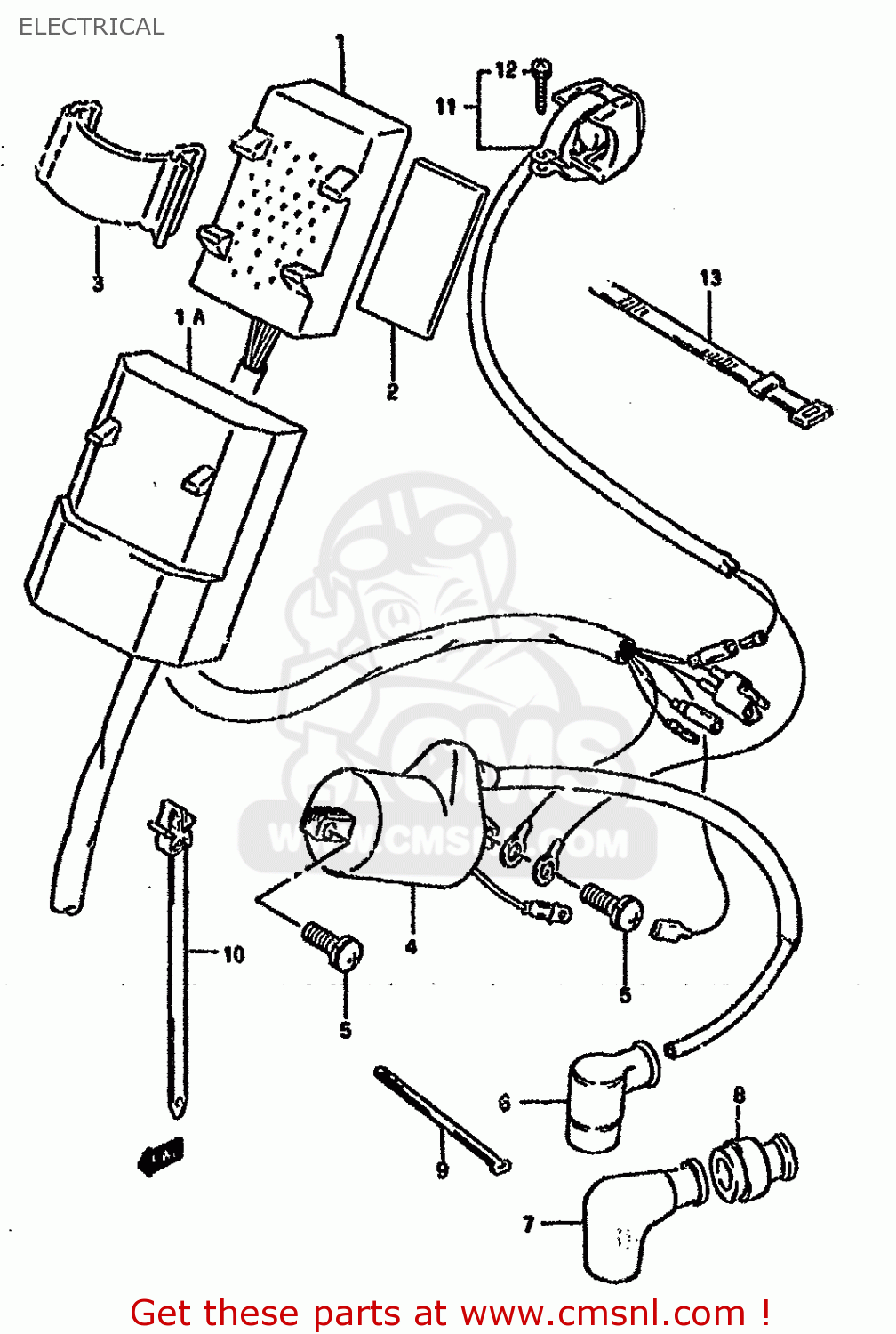

Electrical diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

ELECTRICAL RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
ELECTRICAL RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
ELECTRICAL RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
3290043D00
ref: 1
MODEL N/P
CDI UNIT
3290043D00
€ 482.00
1A-1
3290043D10
ref: 1A-1
MODEL R
CDI UNIT
3290043D10
€ 605.50
1A-2
3290043D20
ref: 1A-2
MODEL S
CDI UNIT
€ 395.00
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
3-1
3294214111
ref: 3-1
MODEL N/P
BAND(L:65)
3294214111
€ 8.00
3-2
3294214301
ref: 3-2
MODEL R/S
BAND,CDI UNIT(L:80)
3294214301
€ 10.00
4
3341043D00
ref: 4
COIL ASSY,IGNITION
3341043D00
€ 119.50
5-1
0211236206
ref: 5-1
MODEL N
SCREW
€ 2.00
5-2
0912906D03
ref: 5-2
MODEL P
SCREW (6X21)
€ 0.00
5-3
0211236203
ref: 5-3
MODEL R/S
SCREW
€ 2.00
6
3351041111
ref: 6
MODEL N/P
CAP,SPARK PLUG
3351041111
€ 23.00
7
3351020A00
ref: 7
MODEL R/S
CAP,SPARK PLUG
€ 23.00
8
3354238B00
ref: 8
MODEL R/S
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
9
0940709402
ref: 9
MODEL N/P
CLAMP
0940709402
€ 3.00
10-1
0940714408
ref: 10-1
MODEL R
CLAMP(L:120)
0940714408
€ 5.00
10-2
0940711402
ref: 10-2
MODEL S
CLAMP(L:90)
0940711402
€ 2.50
11-1
3782027C00
ref: 11-1
MODEL N/P
SWITCH ASSEMBLY
3782027C00
€ 24.50
11-2
3782014X50
ref: 11-2
MODEL R/S
SWITCH ASSY,ENGINE STOP
3782014X50
€ 24.50
12
0211233165
ref: 12
SCREW
0211233165
€ 1.50
13
0940712402
ref: 13
CLAMP(L:120)
0940712402
€ 3.00
