REAR SWINGING ARM (MODEL P/R/S)

RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

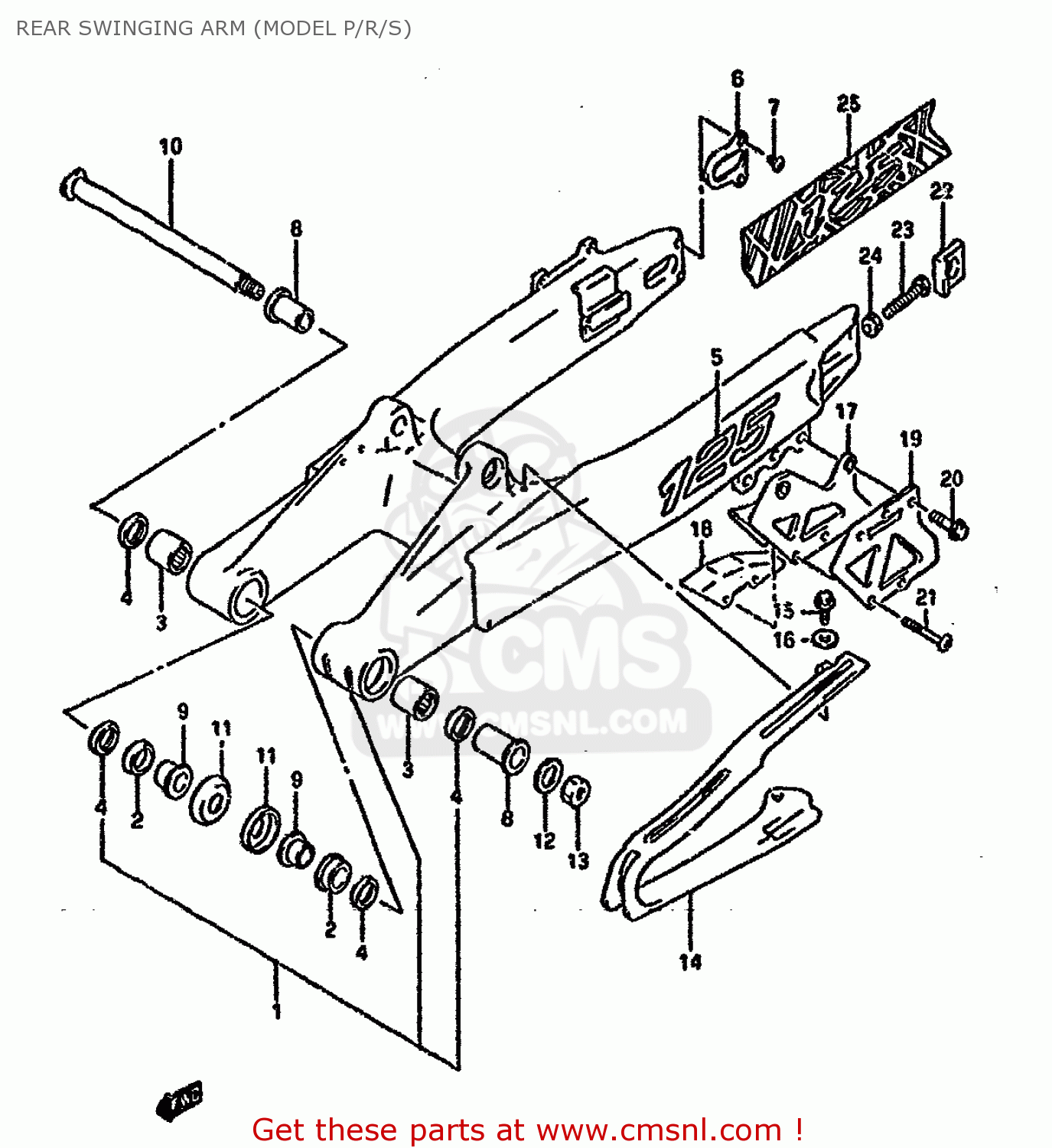

Rear swinging arm (model p/r/s) diagram RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

REAR SWINGING ARM (MODEL P/R/S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
REAR SWINGING ARM (MODEL P/R/S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
REAR SWINGING ARM (MODEL P/R/S) RM125 1995 (S) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6100043D10
ref: 1-1
MODEL P 61000-28E11
SWING ARM ASSEMBLY,REAR
€ 980.50
1-2
6100028E11
ref: 1-2
WITH OUT EMBLEM
SWING ARM ASSEMBLY,REAR
€ 980.50
1-3
6100028E11
ref: 1-3
MODEL R/S
SWING ARM ASSEMBLY,REAR
€ 980.50
2
6126128C00
ref: 2
BUSHING,SWGARM PIVOT
6126128C00
€ 22.00
3
0926322017
ref: 3
BEARING(22X29X30)
0926322017
€ 18.50
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
0928522001
€ 5.00
5
6838127C1012R
ref: 5
MODEL P FOR 61000-43
EMBLEM,SWING ARM
€ 8.00
6
6112828E00
ref: 6
PLATE,SWING ARM,REAR
6112828E00
€ 14.50
7
0912605009
ref: 7
SCREW(5X8)
0912605009
€ 2.50
8-1
6125128C00
ref: 8-1
MODEL P/R
SPACER,REAR SWING ARM
6125128C00
€ 18.50
8-2
6125105D00
ref: 8-2
MODEL S
SPACER,RR SWGARM PIVOT
6125105D00
€ 18.50
9
6125228C00
ref: 9
SPACER,SWGARM PIVOT INNER
6125228C00
€ 17.50
10
6121128C00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
6121128C00
€ 46.50
11
6126228C10
ref: 11
COVER,SWINGINGARM PIVOT
6126228C10
€ 4.50
12-1
0832211168
ref: 12-1
MODEL P
WASHER
0832211168
€ 2.00
12-2
0832201163
ref: 12-2
MODEL R/S
WASHER, FIXED DRIVE FACE
0832201163
€ 2.00
13
0915916007
ref: 13
NUT
0915916007
€ 10.50
14
6127327C01
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
6127327C01
€ 54.00
15-1
0154706167
ref: 15-1
MODEL P
BOLT
0154706167
€ 2.00
15-2
0154706163
ref: 15-2
MODEL R/S
BOLT
0154706163
€ 2.50
16
0916906057
ref: 16
WASHER
0916906057
€ 4.00
17
6134127C20
ref: 17
GUIDE,CHAIN
6134127C20
€ 30.50
18
6134827C20
ref: 18
DEFENSE,CHAIN GUIDE
6134827C20
€ 26.50
19
6134228E00
ref: 19
PLATE,CHAIN GUIDE OUTER
6134228E00
€ 39.00
20-1
0154706207
ref: 20-1
MODEL P
BOLT
0154706207
€ 2.50
20-2
0154706203
ref: 20-2
MODEL R/S
SCREW
0154706203
€ 2.50
21
0912606013
ref: 21
SCREW(6X40)
0912606013
€ 5.00
22-1
6144528E00
ref: 22-1
MODEL P
WASHER,CHAIN ADJUSTER
6144528E00
€ 23.00
22-2
6144528E10
ref: 22-2
MODEL R/S
WASHER,CHAIN ADJUSTER
6144528E10
€ 23.00
23
0910008287
ref: 23
BOLT(8X50)
0910008287
€ 3.00
24
0915908034
ref: 24
NUT
0915908034
€ 2.00
25-1
6838143D00C2N
ref: 25-1
MODEL R
EMBLEM,SWING ARM
€ 24.00
25-2
6838143D00D0K
ref: 25-2
MODEL S
EMBLEM,SWING ARM
€ 24.00
