AIR CLEANER (MODEL P/R/S)
RM125 1995 (S) USA (E03)

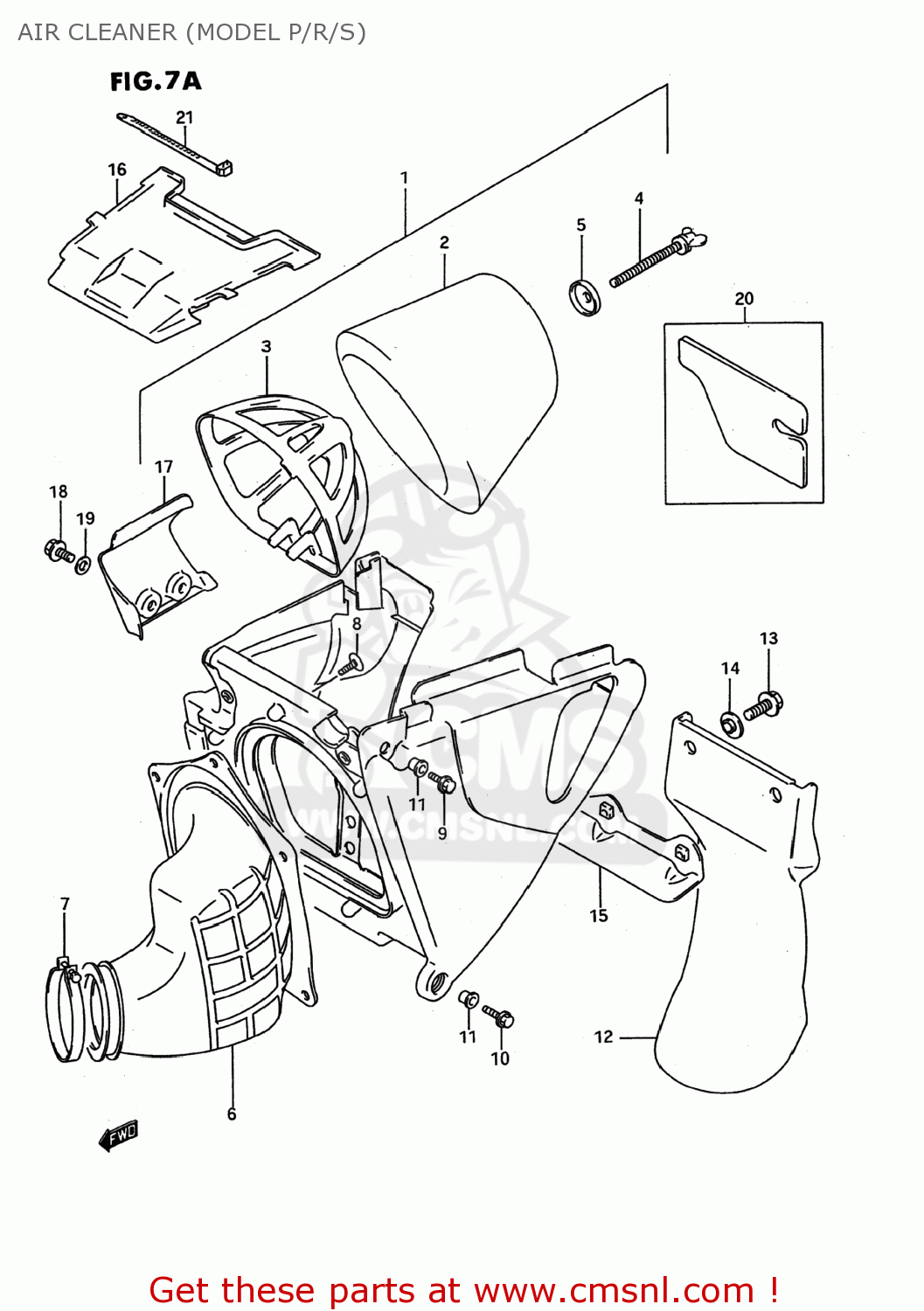

Air cleaner (model p/r/s) diagram RM125 1995 (S) USA (E03)
AIR CLEANER (MODEL P/R/S) RM125 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370043D11
ref: 1-1
CLEANER ASSEMBLY
€ 162.00
1-2
1370043D20
ref: 1-2
CLEANER ASSEMBLY,AIR
€ 209.00
2
1378028E00
ref: 2
FILTER ASSY
€ 48.50
3
1379128E00
ref: 3
HOLDER,FILTER
€ 20.50
4
1383128E00
ref: 4
13831-37F20
BOLT,WING
€ 5.50
5
1379213A01
ref: 5
WASHER,AIR CLEANER
€ 3.00
6-1
1388143D10
ref: 6-1
TUBE,OUTLET
€ 50.00
6-2
1388143D20
ref: 6-2
TUBE,OUTLET
€ 69.50
7-1
0940268208
ref: 7-1
CLAMP
€ 6.00
7-2
0940270203
ref: 7-2
09402-70902
CLAMP
€ 6.00
8
0324105105
ref: 8
03241-0510A
SCREW
€ 2.50
9-1
0154706165
ref: 9-1
01547-0616B
BOLT
€ 2.50
9-2
0154706163
ref: 9-2
01547-0616B
BOLT
€ 2.50
10-1
0154706205
ref: 10-1
01547-0620B
BOLT 6X20
€ 2.50
10-2
0154706205
ref: 10-2
01547-0620B
BOLT 6X20
€ 2.50
11
0916906021
ref: 11
WASHER
€ 2.50
12-1
1373828E00
ref: 12-1
13738-28E01
GUARD,MUD
€ 19.00
12-2
1373828E01
ref: 12-2
GUARD,MUD LWR
€ 19.00
13
0154706167
ref: 13
BOLT
€ 2.00
14
0916906057
ref: 14
WASHER
€ 4.00
15
1370428E00
ref: 15
PLATE,MUDGUARD
€ 10.00
16-1
1374128E00
ref: 16-1
13741-28E01
CAP,AIR CLEANER
€ 19.50
16-2
1374128E01
ref: 16-2
CAP,AIR CLEANER
€ 19.50
17
1373528E00
ref: 17
COVER,AIR CLEANER,R NO.2
€ 13.50
18-1
0154706165
ref: 18-1
01547-0616B
BOLT
€ 2.50
18-2
0154706163
ref: 18-2
01547-0616B
BOLT
€ 2.50
19-1
0832221064
ref: 19-1
08322-0106B
WASHER
€ 2.00
19-2
0832201063
ref: 19-2
08322-0106B
WASHER
€ 2.00
20
1376128E00
ref: 20
GUARD,MUD,UPPER
€ 18.00
21
0940712406
ref: 21
CLAMP(L:129)
€ 0.00
