CARBURETOR (MODEL N/P)

RM125 1995 (S) USA (E03)

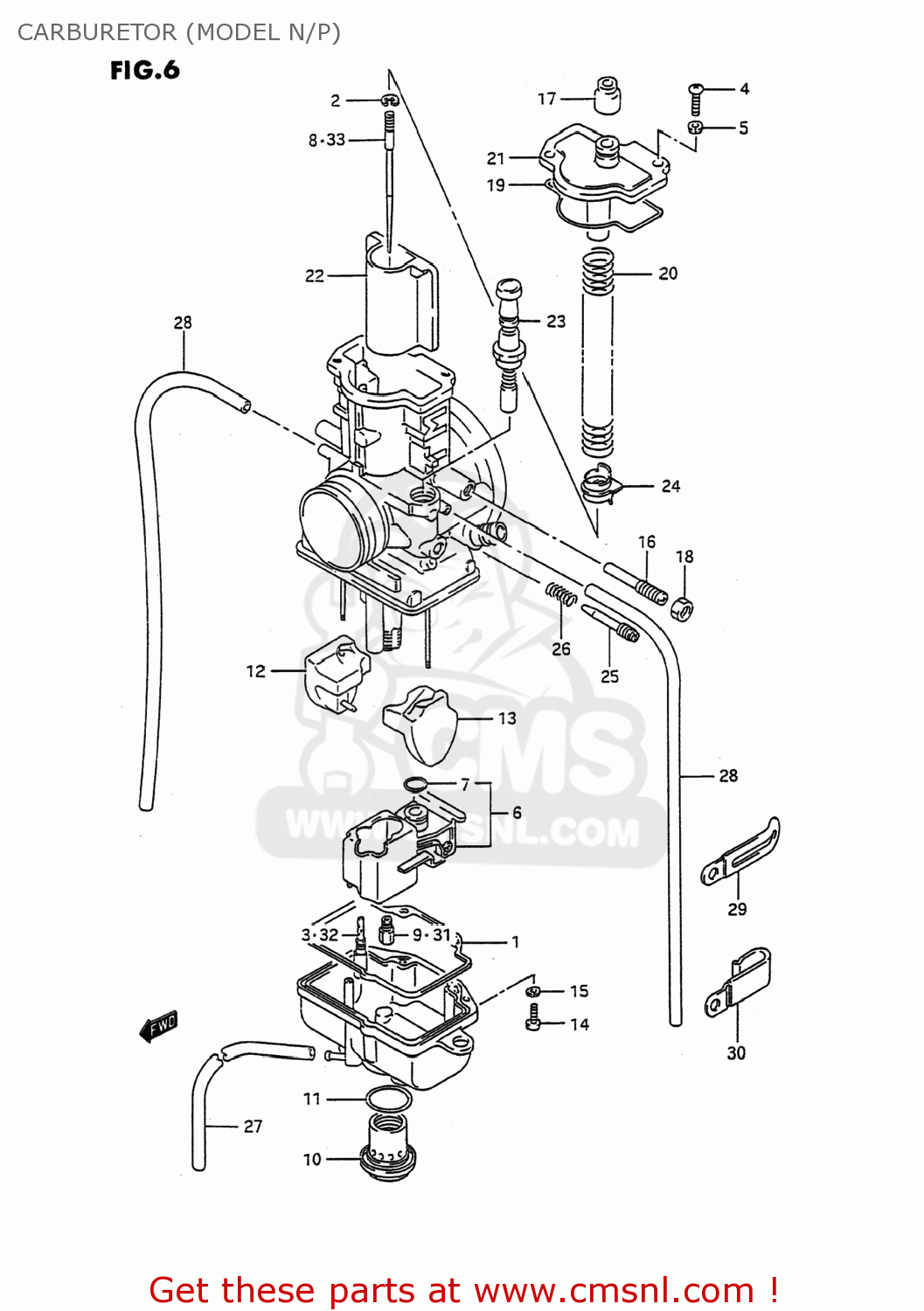

Carburetor (model n/p) diagram RM125 1995 (S) USA (E03)

CARBURETOR (MODEL N/P) RM125 1995 (S) USA (E03)
CARBURETOR (MODEL N/P) RM125 1995 (S) USA (E03)
CARBURETOR (MODEL N/P) RM125 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity

1320043D10
ref:
CARBURETOR ASSY
€ 281.00

1320043D20
ref:
CARBURETOR ASSEMBLY
€ 373.50
1
1369626C00
ref: 1
O RING,FLOAT CHAMBER
1369626C00
€ 12.50
2
1339431210
ref: 2
CLIP,NEEDLE
1339431210
€ 3.50
3-1
0949250018
ref: 3-1
JET,PILOT(50)
0949250018
€ 17.50
3-2
0949255013
ref: 3-2
JET,PILOT(55)
0949255013
€ 11.50
4
0211204126
ref: 4
02112-0412A
SCREW
€ 1.50
5
0832121046
ref: 5
08321-0104A
LOCK WASHER
0832121046
€ 2.00
6
1337027C00
ref: 6
VALVE ASSY,NEEDLE
€ 37.50
7
1337444080
ref: 7
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
8-1
1338343D00
ref: 8-1
NEEDLE JET (6BEJ6-66)
1338343D00
€ 13.50
8-2
1338327C30
ref: 8-2
NEEDLE,JET(6AEJ02-63)
1338327C30
€ 14.50
9-1
0949164002
ref: 9-1
JET,MAIN(320)
0949164002
€ 8.50
9-2
0949172011
ref: 9-2
JET,MAIN(360)
0949172011
€ 8.50
10
1324727C00
ref: 10
CAP,DRAIN
1324727C00
€ 15.00
11
1338927C00
ref: 11
O RING
1338927C00
€ 6.50
12
1325201B20
ref: 12
FLOAT,R
1325201B20
€ 22.50
13
1325201B21
ref: 13
FLOAT,L
1325201B21
€ 21.50
14
0211203086
ref: 14
02112-0308A
SCREW
€ 1.50
15
0832121036
ref: 15
08321-2103B
LOCK WASHER
0832121036
€ 1.50
16
1327926C00
ref: 16
ADJUSTER
1327926C00
€ 10.00
17
1368104010
ref: 17
CAP
1368104010
€ 3.00
18
1360747070
ref: 18
NUT
1360747070
€ 4.00
19
1325126C00
ref: 19
O RING,TOP CAP
1325126C00
€ 9.50
20
1357326C00
ref: 20
SPRING
1357326C00
€ 6.50
21
1326101B30
ref: 21
CAP,TOP
1326101B30
€ 14.00
22
1355127C00
ref: 22
VALVE,PISTON
1355127C00
€ 105.00
23
1341126C00
ref: 23
PLUNGER ASSY
1341126C00
€ 41.00
24
1342426C00
ref: 24
RING
1342426C00
€ 7.50
25
1326709400
ref: 25
SCREW,AIR
1326709400
€ 5.00
26
1326835010
ref: 26
SPRING
1326835010
€ 3.00
27
0935130503600
ref: 27
HOSE(3X5X600)
0935130503600
€ 6.50
28
0935135653600
ref: 28
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
29
0940406402
ref: 29
09404-06432
CLAMP
€ 2.50
30
0940306307
ref: 30
CLAMP
0940306307
€ 4.50
31-1
0949158002
ref: 31-1
JET,MAIN(290)
0949158002
€ 7.50
31-10
0949164002
ref: 31-10
JET,MAIN(320)
0949164002
€ 8.50
31-11
0949166002
ref: 31-11
JET,MAIN(330)
0949166002
€ 10.50
31-12
0949178005
ref: 31-12
JET,MAIN(390)
0949178005
€ 8.50
31-13
0949180010
ref: 31-13
JET,MAIN(400)
0949180010
€ 8.50
31-14
0949188001
ref: 31-14
JET,MAIN(440)
0949188001
€ 15.50
31-2
0949160007
ref: 31-2
JET,MAIN(300)
0949160007
€ 9.50
31-3
0949162005
ref: 31-3
JET,MAIN(310)
0949162005
€ 10.50
31-4
0949166002
ref: 31-4
JET,MAIN(330)
0949166002
€ 10.50
31-5
0949168002
ref: 31-5
JET,MAIN(340)
0949168002
€ 8.50
31-6
0949170011
ref: 31-6
JET,MAIN(350)
0949170011
€ 8.50
31-7
0949172011
ref: 31-7
JET,MAIN(360)
0949172011
€ 8.50
31-8
0949174003
ref: 31-8
JET,MAIN(370)
0949174003
€ 8.50
31-9
0949176003
ref: 31-9
JET,MAIN(380)
0949176003
€ 8.50
32-1
0949245026
ref: 32-1
JET,PILOT(45)
0949245026
€ 14.00
32-2
0949250018
ref: 32-2
JET,PILOT(50)
0949250018
€ 17.50
32-3
0949255013
ref: 32-3
JET,PILOT(55)
0949255013
€ 11.50
32-4
0949260013
ref: 32-4
JET,PILOT (60)
0949260013
€ 10.50
32-5
0949265007
ref: 32-5
JET,PILOT (65)
0949265007
€ 9.00
32-6
0949270008
ref: 32-6
JET,PILOT(70)
€ 13.00
33-1
1338343D10
ref: 33-1
NEEDLE JET (6BEJ6-65)
€ 8.50
33-2
1338343D20
ref: 33-2
NEEDLE JET (6BEJ6-67)
€ 8.50
33-3
1338327C10
ref: 33-3
NEEDLE JET (6AEJ02-64)
1338327C10
€ 13.00
33-4
1338327C30
ref: 33-4
NEEDLE,JET(6AEJ02-63)
1338327C30
€ 14.50
33-5
1338327C40
ref: 33-5
NEEDLE JET (6AEJ02-62)
1338327C40
€ 8.50
