REAR WHEEL
RM125 1995 (S) USA (E03)

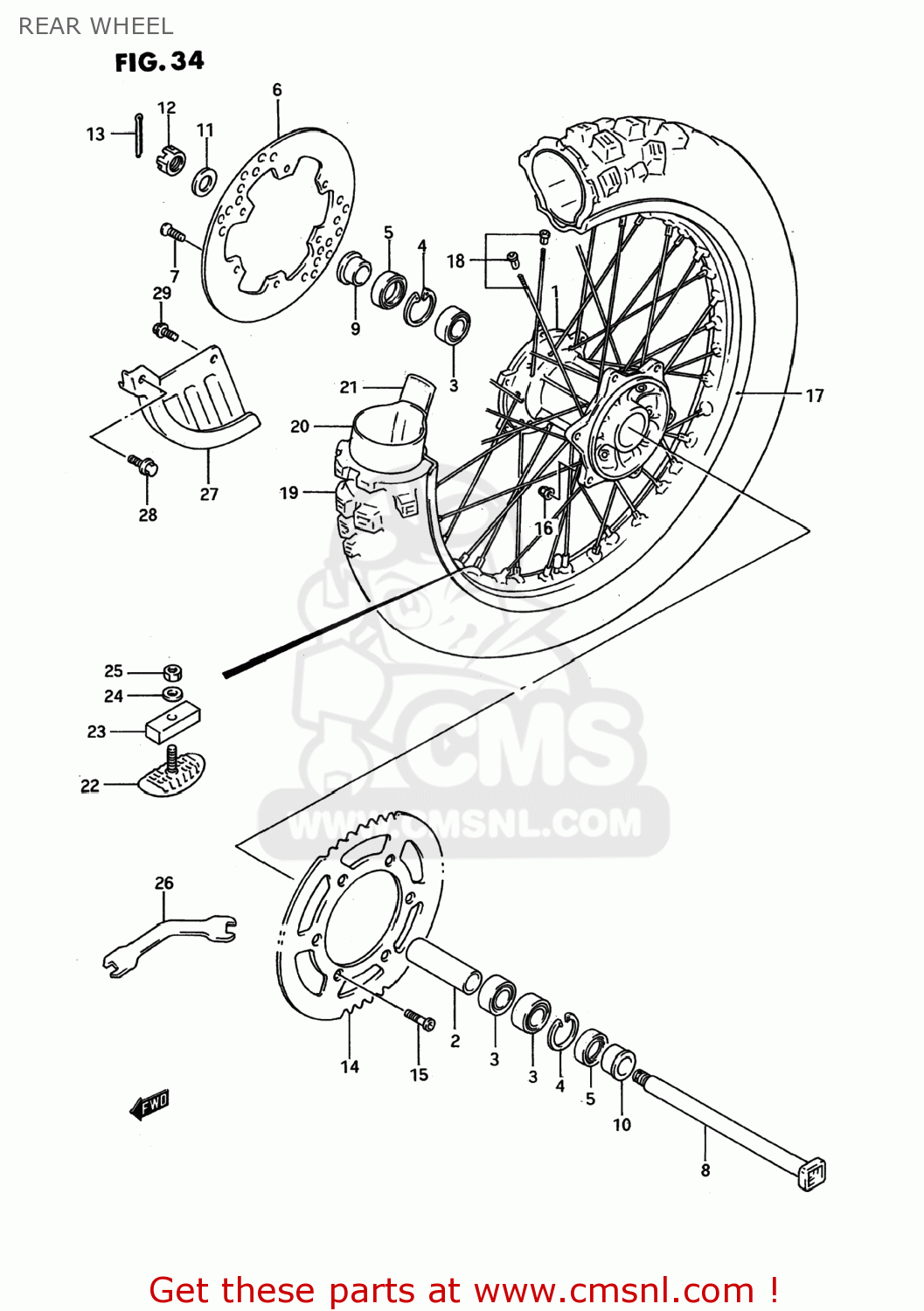

Rear wheel diagram RM125 1995 (S) USA (E03)
REAR WHEEL RM125 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411143D00
ref: 1
HUB,RR WHEEL
€ 285.00
2
6473143D00
ref: 2
SPACER,RR HUB BEARING
€ 47.50
3
0813360047
ref: 3
BEARING
€ 21.00
4
0833141426
ref: 4
08331-4142A
CIRCLIP
€ 1.50
5-1
0928226001
ref: 5-1
SEAL,OIL(26X42X8)
€ 13.00
5-2
6484128E00
ref: 5-2
SEAL(29X42X6)
€ 8.50
6
6921143D10
ref: 6
69211-43D00
DISC,REAR BRAKE
€ 160.00
7
5942129E00
ref: 7
SCREW,BRAKE DISC
€ 4.50
8-1
6471127C20
ref: 8-1
64711-27C30
AXLE,REAR
€ 105.00
8-1
6471127C20
ref: 8-1
64711-27C30
AXLE,REAR
€ 105.00
8-2
6471127C30
ref: 8-2
AXLE,RR
€ 105.00
8-3
6471128E00
ref: 8-3
AXLE,RR
€ 62.50
9-1
6474143D00
ref: 9-1
SPACER,RR AXLE,R
€ 16.50
9-2
6474128E10
ref: 9-2
SPACER,RR AXLE,R
€ 19.50
10-1
6475143D01
ref: 10-1
SPACER,REAR AXLE,LEFT
€ 23.00
10-2
6475128E00
ref: 10-2
SPACER,RR AXLE,L
€ 39.50
10-3
6475128E20
ref: 10-3
SPACER,RR AXLE
€ 13.00
11
0916019022
ref: 11
WASHER(19X32X3.2)
€ 5.00
12-1
0831441188
ref: 12-1
08314-40187
NUT 18MM
€ 6.00
12-2
0831440183
ref: 12-2
08314-4018A
NUT
€ 4.50
13
0411140308
ref: 13
04111-4030A
PIN,COTTER
€ 1.50
14-1
6451140281
ref: 14-1
64511-28E00
SPROCKET,REAR
€ 99.00
14-10
6451100B11
ref: 14-10
64511-00B12
SPROCKET,REAR
€ 86.00
14-11
6451100B21
ref: 14-11
SPROCKET,RR(NT:51)
€ 66.00
14-11
6451100B21
ref: 14-11
SPROCKET,RR(NT:51)
€ 66.00
14-2
6451128E00
ref: 14-2
SPROCKET,RR(NT:49)
€ 99.00
14-3
6451140285
ref: 14-3
64511-14D60
SPROCKET,REAR
€ 195.00
14-3
6451140285
ref: 14-3
64511-14D60
SPROCKET,REAR
€ 195.00
14-4
6451114D60
ref: 14-4
SPROCKET,RR(NT:48)
€ 195.00
14-5
6451140271
ref: 14-5
64511-36E00
SPROCKET,REAR
€ 99.00
14-5
6451140271
ref: 14-5
64511-36E00
SPROCKET,REAR
€ 99.00
14-6
6451115D20
ref: 14-6
64511-36E00
SPROCKET,REAR (NT:50)
€ 99.00
14-7
6451140261
ref: 14-7
SPROCKET,RR(NT:51 AL)
€ 87.50
14-8
6451100B01
ref: 14-8
SPROCKET,RR(NT:49)
€ 99.00
14-8
6451100B01
ref: 14-8
SPROCKET,RR(NT:49)
€ 99.00
14-9
6451115D00
ref: 14-9
64511-28E00
SPROCKET,REAR
€ 99.00
15
0912008010
ref: 15
BOLT(8X30.5)
€ 2.50
16
0915908067
ref: 16
NUT
€ 5.50
17
6531127C10
ref: 17
65311-36E00
RIM,REAR WHEEL (1.85X19)(A
€ 357.00
18
6532028C10
ref: 18
SPOKE SET,RR WHEEL
€ 97.00
19-1
6511043D00
ref: 19-1
65110-36F00
TIRE
€ 154.50
19-1
6511043D00
ref: 19-1
65110-36F00
TIRE
€ 154.50
19-2
6511043D40
ref: 19-2
65110-36E10
TIRE,REAR 100/90-19
€ 84.00
19-2
6511043D40
ref: 19-2
65110-36E10
TIRE,REAR 100/90-19
€ 84.00
20
6520001B30
ref: 20
TUBE ASSEMBLY,WHEEL,INNER
€ 41.00
21
6526101B30
ref: 21
PROTECTOR,WHL INR TUBE
€ 3.50
22-1
6527046910
ref: 22-1
65270-43D00
STOPPER,BEAD
€ 30.50
22-2
6527043D00
ref: 22-2
STOPPER,BEAD(1.85)
€ 30.50
23
6527127C00
ref: 23
CUSHION,BEAD STOPPER
€ 5.50
24-1
0832211088
ref: 24-1
08322-01087
WASHER
€ 2.00
24-2
0832201083
ref: 24-2
08322-0108A
WASHER
€ 1.50
25-1
0831012088
ref: 25-1
08310-00087
NUT
€ 2.00
25-2
0831000083
ref: 25-2
08310-0008A
NUT
€ 1.50
26
0981300039
ref: 26
SPANNER,OPEN
€ 8.00
27
6923128C00
ref: 27
69200-28C00
COVER,REAR DISC
€ 29.50
28-1
0910306130
ref: 28-1
09103-06286
BOLT 6X20
€ 2.50
28-2
0151706207
ref: 28-2
01550-06207
BOLT 6X20
€ 2.50
28-3
0155006203
ref: 28-3
01550-0620A
BOLT
€ 2.50
29-1
0151706128
ref: 29-1
01550-06127
BOLT
€ 2.50
29-2
0155006123
ref: 29-2
01550-0612A
BOLT
€ 2.50
