REAR BRAKE

RM125 1995 (S) USA (E03)

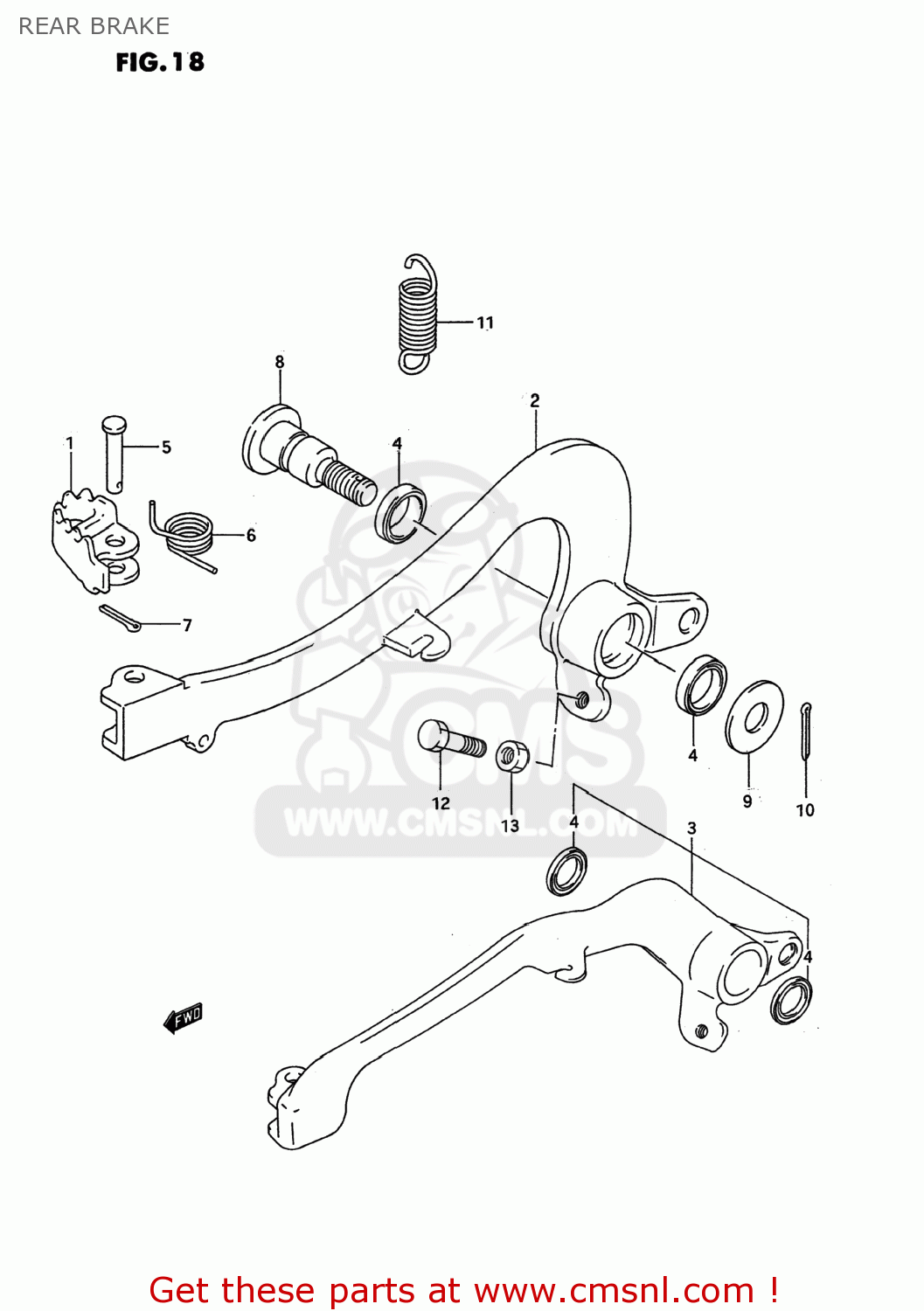

Rear brake diagram RM125 1995 (S) USA (E03)

REAR BRAKE RM125 1995 (S) USA (E03)

REAR BRAKE RM125 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312043D00
ref: 2
43120-43D10

ARM COMP,BRAKE PEDAL

€ 134.00

3

4312043D10
ref: 3

ARM,BRAKE PEDAL

€ 134.00

4

0928415006
ref: 4

SEAL,OIL(15X21X3)

€ 3.50

5

0920006062
ref: 5

PIN(6X23.5)

€ 2.50

6

0944411006
ref: 6

SPRING

€ 3.50

7

0411120158
ref: 7
04111-2015A

PIN

€ 1.50

8

4314227C00
ref: 8

SHAFT,BRAKE PEDAL

€ 15.00

9

0821110261
ref: 9

WASHER

€ 2.50

10

0411120208
ref: 10
04111-2020A

PIN 20X20

€ 1.50

11

0944311039
ref: 11
09443-11039-XC0

SPRING

€ 21.50

12

0910006009
ref: 12

BOLT(6X23)

€ 1.50

13-1

0831011068
ref: 13-1
08310-00067

NUT

€ 2.50

13-2

0831000063
ref: 13-2
08310-0006A

NUT 6MM

€ 2.00
