RADIATOR (MODEL N/P)
RM125 1995 (S) USA (E03)

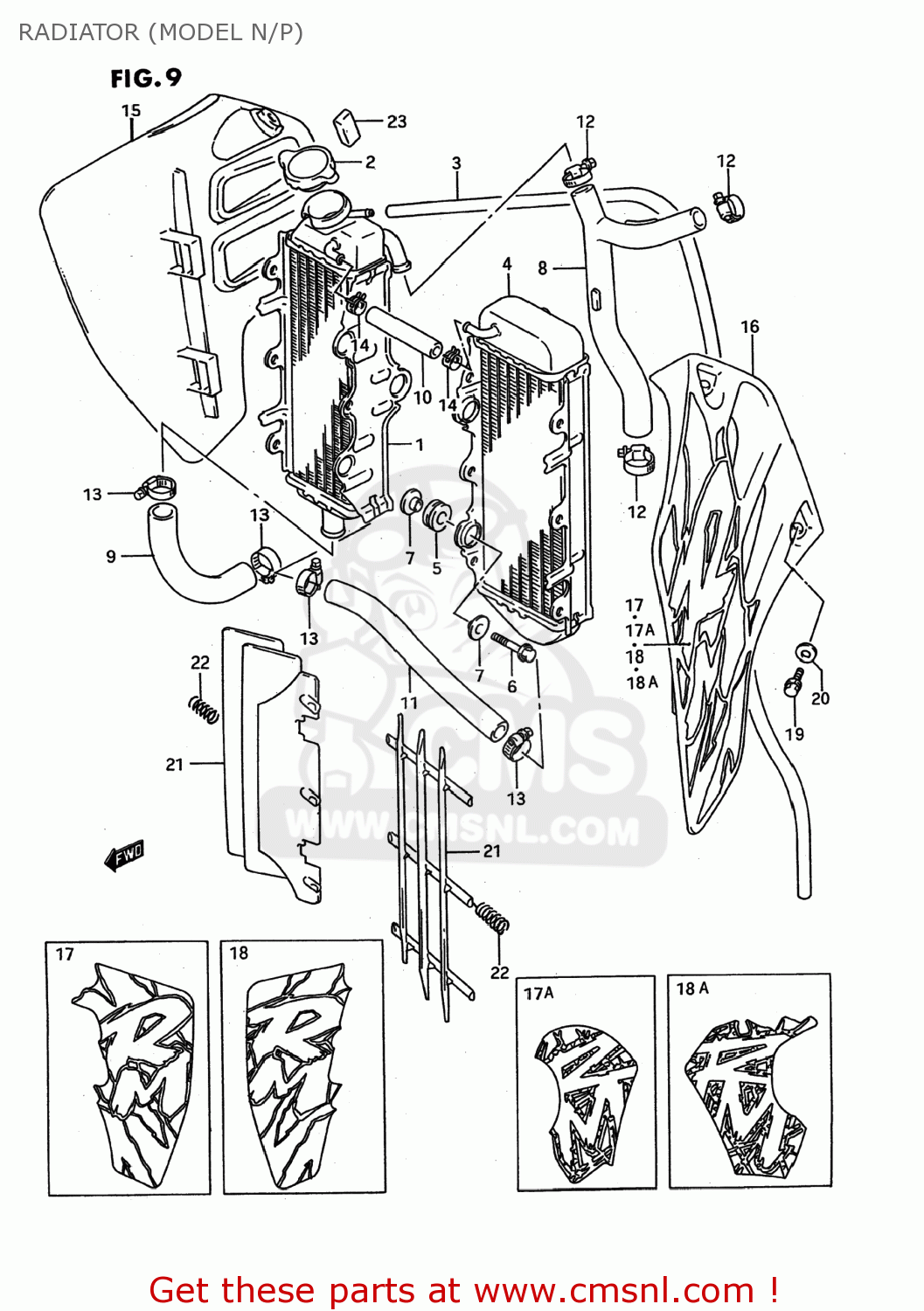

Radiator (model n/p) diagram RM125 1995 (S) USA (E03)
RADIATOR (MODEL N/P) RM125 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1771043D00
ref: 1-1
RADIATOR COMP,WATER,RIGHT
€ 291.00
1-2
1771043D11
ref: 1-2
17710-43D12
RADIATOR ASSEMBLY,WATER
€ 511.00
2
1773020930
ref: 2
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
3
093515080100A
ref: 3
09351-50803-00B
HOSE
€ 10.00
4-1
1772043D01
ref: 4-1
RADIATOR COMP,WATER,LEFT
€ 318.50
4-2
1772028E00
ref: 4-2
17720-28E02
RADIATOR ASSEMBLY,WATER
€ 450.50
5
1778719A00
ref: 5
CUSHION,RADIATOR LWR
€ 3.50
6
0154706257
ref: 6
BOLT
€ 2.50
7
1778126C00
ref: 7
WASHER,RDTR SPRT
€ 2.50
8-1
1785143D00
ref: 8-1
HOSE,RADIATOR INLET
€ 49.00
8-2
1785143D10
ref: 8-2
HOSE,RADIATOR INLET
€ 58.00
9
1785243D00
ref: 9
HOSE,RADIATOR OUTLET
€ 11.00
10-1
1785543D00
ref: 10-1
17854-13810
HOSE,WATER
€ 5.50
10-2
1785528E00
ref: 10-2
17854-13810
HOSE,WATER
€ 5.50
11
1785443D00
ref: 11
17854-43810
HOSE,RADIATOR JOINT
€ 23.50
12
0940225502
ref: 12
09402-28511
CLAMP
€ 8.50
13
0940222502
ref: 13
09402-22511
CLAMP
€ 6.00
14
0940113404
ref: 14
CLIP
€ 2.50
15-1
1776128C0030H
ref: 15-1
17761-28C00-25Y
COVER,RADIATOR,RIGHT
€ 23.00
15-2
1776128E0025Y
ref: 15-2
17761-28E01-25Y
COVER,RADIATOR
€ 55.50
16-1
1776227C0030H
ref: 16-1
17762-27C00-25Y
COVER,RADIATOR,LEFT
€ 26.00
16-2
1776228E0025Y
ref: 16-2
17762-28E01-25Y
COVER,RADIATOR
€ 51.50
17
6866143D001JH
ref: 17
EMBLEM,RADIATOR COVER
€ 45.50
17A
6866128E00A4H
ref: 17A
EMBLEM,RADIATOR COVER
€ 75.50
18
6867143D001JH
ref: 18
EMBLEM,RADIATOR COVER
€ 45.50
18A
6867128E00A4H
ref: 18A
EMBLEM,RADIATOR COVER
€ 55.00
19-1
0154706127
ref: 19-1
BOLT
€ 2.00
19-2
0913606002
ref: 19-2
SCREW(6X12)
€ 2.50
20
0916806027
ref: 20
GASKET(6.5X20X1.5) (NAS)
€ 3.50
21
1783126C00
ref: 21
LOUVER,RADIATOR
€ 17.00
22
0944011024
ref: 22
09440-11024-XC0
SPRING
€ 5.00
23
1779828E00
ref: 23
CUSHION,RADIATOR COVER
€ 2.50
