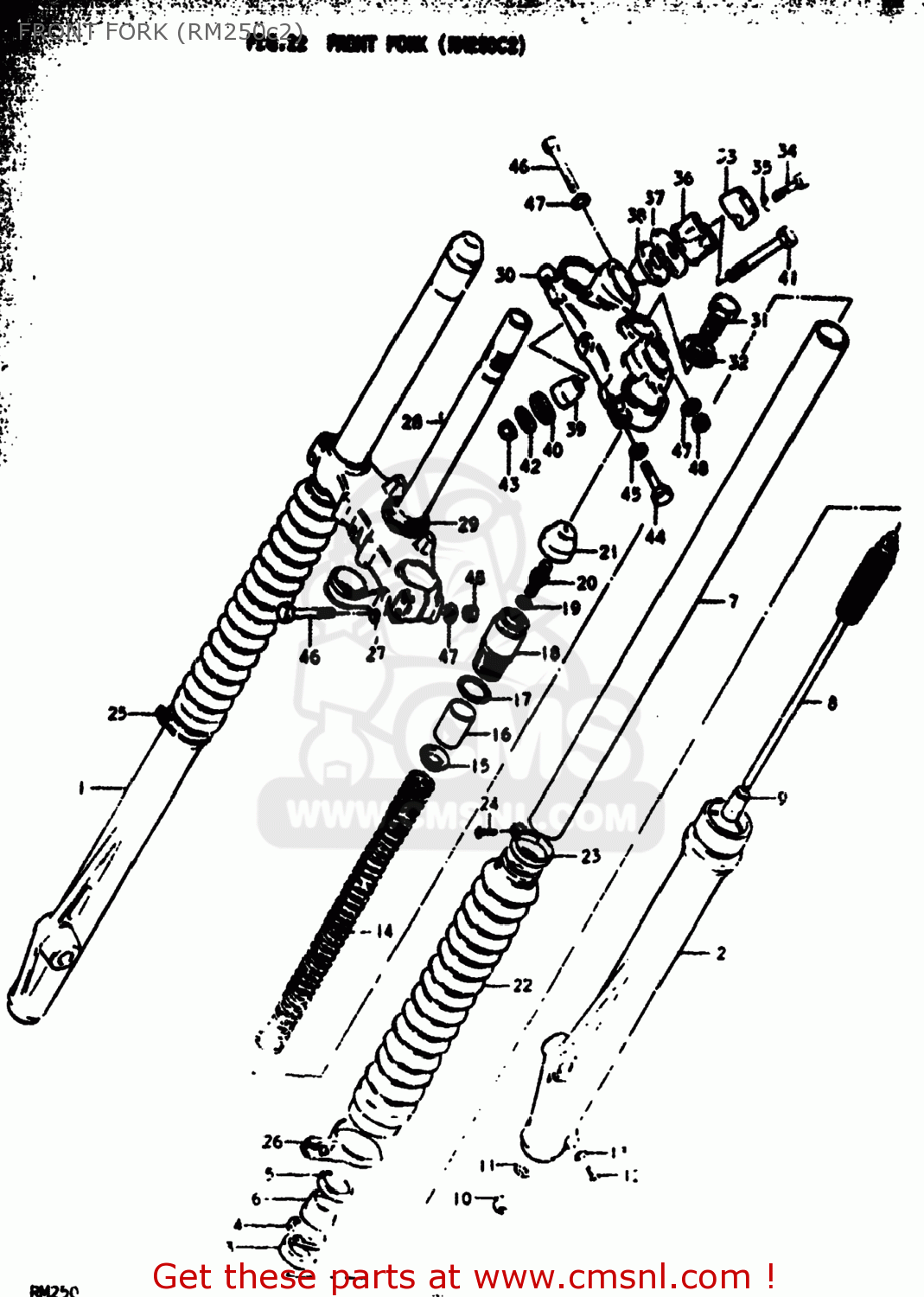

FRONT FORK (RM250c2)

ref

part #

description

quantity

0

5110041230
ref: 0
51100-41250

DAMPER SET

€ 0.00

1

5113041220
ref: 1

TUBE,OUTER,RIGHT

€ 82.50

2

5114041220
ref: 2

TUBE,OUTER,LEFT

€ 74.50

3

5115341211
ref: 3
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

4

5115641211
ref: 4

CIRCLIP,FORK OIL SEAL

€ 3.00

5

5114941211
ref: 5
51149-40500

GUIDE.FORK DUST

€ 7.50

6

5117341211
ref: 6

DUST SEAL,FRONT FORK

€ 4.50

7

5111041220
ref: 7

TUBE,FORK,INNER

€ 131.50

8-1

5114641220
ref: 8-1

CYLINDER,FRONT FORK

€ 29.00

8-2

5114641220
ref: 8-2

CYLINDER,FRONT FORK

€ 29.00

9

5119541210
ref: 9
51195-49071

PIECE,OIL LOCK

€ 12.00

10

5114716510
ref: 10

BOLT,FORK CYLINDER(10X25)

€ 3.50

11

5114841310
ref: 11

GASKET (NAS)

€ 2.50

12

0211104087
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14-1

5117141220
ref: 14-1

SPRING

€ 17.00

14-2

5117141240
ref: 14-2

SPRING

€ 0.00

15

5117238010
ref: 15

GUIDE,FRONT FORK SPRING C

€ 9.50

16

5117649010
ref: 16

SPACER,SPRING

€ 2.00

17

5111716310
ref: 17

O RING

€ 4.50

18

5135141220
ref: 18

CAP ASSEMBLY,FORK

€ 23.00

19

5111741211
ref: 19

O RING

€ 6.50

20

5116941211
ref: 20
51293-49001

VALVE

€ 18.00

21

5118941220
ref: 21

CAP

€ 6.00

22

5157141211
ref: 22
51571-38265-38K

BOOT

€ 38.00

23

5157541410
ref: 23

BAND,BOOT

€ 8.00

24

0211204168
ref: 24
02112-0416A

SCREW

€ 1.00

25

5157341410
ref: 25

BAND,FRONT FORK COVER

€ 10.00

26

5157241220
ref: 26

BAND,FRONT FORK COVER

€ 6.50

27

5862141220
ref: 27

GUIDE,CABLE

€ 5.50

28

5141041220
ref: 28
51410-41500

STEM,STEERING

€ 90.00

29

5162133001
ref: 29

RACE,STEERING OUTER LWR

€ 10.00

30

5131141220
ref: 30

HEAD,STEERING STEM

€ 57.50

31

5135141320
ref: 31

BOLT

€ 8.50

32

5135641310
ref: 32

WASHER

€ 6.00

33

5621127100
ref: 33

HOLDER,HANDLEBAR

€ 12.50

34

0110708358
ref: 34
01500-0835B

BOLT

€ 3.50

35

0832121088
ref: 35
08321-01087

LOCK WASHER

€ 2.00

36

5622141220
ref: 36

HOLDER,HANDLEBAR

€ 14.00

37

5172141220
ref: 37

COVER, UPPER

€ 2.00

38

5624141220
ref: 38

CUSHION

€ 2.00

39

5624241220
ref: 39

RUBBER, LOWER

€ 2.50

40

5172241220
ref: 40

SPACER,STEERING DAMPER

€ 2.00

41

5132141220
ref: 41

BOLT,HANDLE HOLDER

€ 3.50

42

0832221128
ref: 42
08322-01127

WASHER

€ 2.00

43

0831921128
ref: 43
08319-2112A

NUT 12MM

€ 4.00

44

0110710458
ref: 44
01500-1045A

BOLT

€ 2.00

45

0832121108
ref: 45
08321-01107

LOCK WASHER

€ 2.00

46

0110708558
ref: 46
01500-08557

BOLT 8X55

€ 3.00

47

0832221088
ref: 47
08322-01087

WASHER

€ 2.00

48

0831012086
ref: 48
08310-0008A

NUT

€ 1.50

all assemblies
